Summary of Contents for Colorlight A100

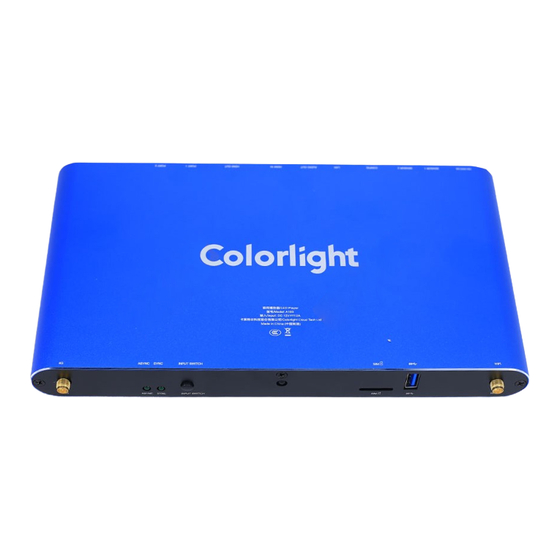

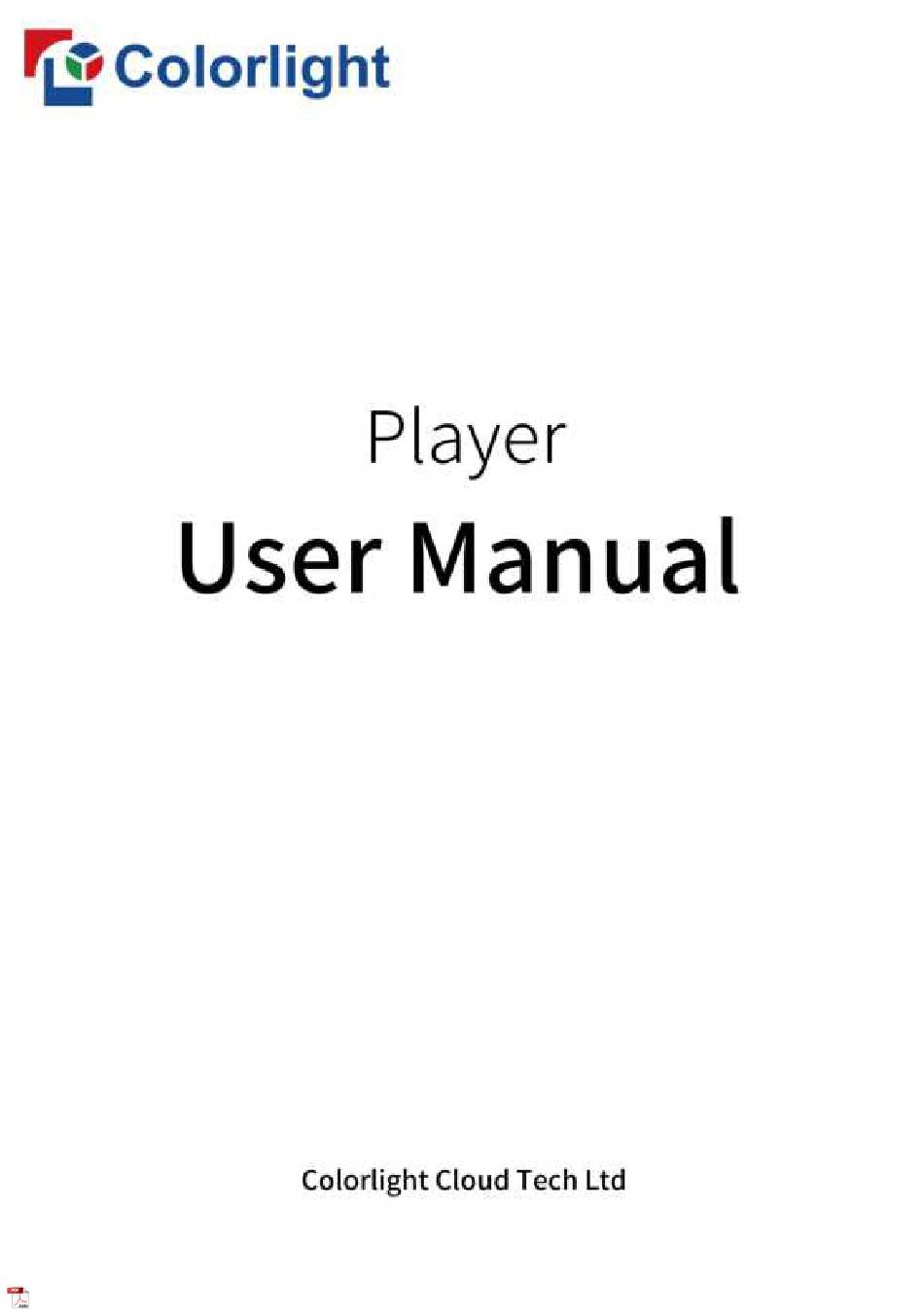

- Page 1 Model: A100,A200,A60 A200...
-
Page 2: Safety Precautions
1 Safety precautions To prevent personal injury and to protect the device from damage, read and follow these safety precautions. Do not remove the cover To avoid personal injury, do not remove the top cover. Only use the power supply and accessories specified by the manufacturer Ensure the power supply is within the specified voltage and power range, and use the power adapter attached with the package of this product. - Page 3 Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 4: Remote Control
2 Interface and button 2.1 Player Note: The player must connect to a 4G antenna if it connects to the network via a 4G module. 2.2 Remote control Signal switch Switch the input to a sync or async signal Sleep/Wakeup Make the player sleep or wake up INFO Display device information... -
Page 5: Get Started
3 Get started You can publish programs and schedules to a player, and also configure player parameters to adjust the brightness and color temperature of a screen. Before you start it, go to www.colorlightinside.com to download the installation package of PlayerMaster, and install PlayerMaster. - Page 6 3.1.2 Configure screen parameter (LCD screen needs no configuration) 1. Open PlayerMaster（Select “LAN” mode if you initially open the software），select the player under the “USB” tab at the left side of the “Device” page, click the advanced setting icon in the bottom-right corner of the interface, and enter the password “168”.
-
Page 7: Configure Network
The control device and the player connect to the same WiFi The control device connects to the WiFi hotspot of the player The control device and the player connect to the same router via Ethernet cable. The control device connects to the player via an Ethernet cable ... - Page 8 name is player model, and the default password is 123456789. You can modify WiFi name and its password, and click Apply . 2. Turn on the WLAN of the control device, and connect the WiFi hotspot of the player. If the connection is successful, and the control device can search the player, then it means the control device and the player is connected to the same local area network.
- Page 9 Display an added Txt file or a manually entered text in a single-line Single-Line text form Single-Column Display an added Txt file or a manually entered text in a text single-column form Display an added Txt, RTF or Word file, or a manually entered text Multi-Line text in a multi-line form Global weather...
- Page 10 3.6.1 Publish program schedules 1. Click Schedule in the navigation bar of PlayerMaster. 2. Click Add in the upper-left corner of the interface, and enter a name of a new program schedule, and then click OK. 3. In the “Program Schedule” window, add a spot, rotation or spare program, and select a program and set effective period.
- Page 11 The reboot command is a moment command, and others are status commands. Thus, all commands must bet set in pair, except the reboot command. For example, the sleep and wakeup command must be set together, and the brightness adjustment command must be set in pair to realize brightness control, as shown in the following figure.
- Page 12 How to delete the schedules in a player？ At the left side of the “Device” page of PlayerMaster, right-click a player or a player group, and select Delete Program Schedule or Delete Command Schedule . In cloud mode, you can only delete the schedules of a player group.
