Summary of Contents for Colorlight C7

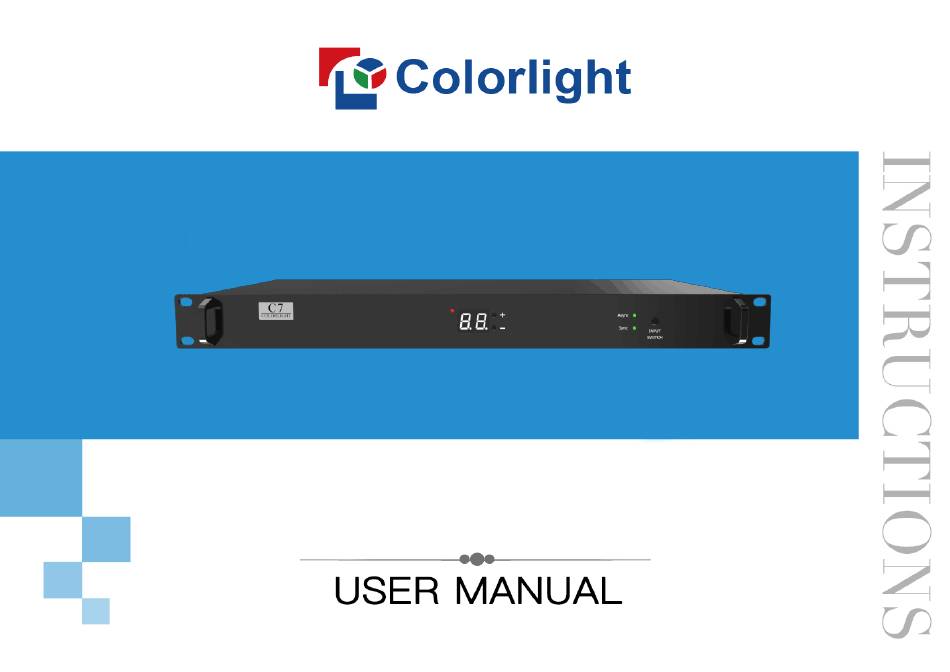

  • Page 1 C7 PLAYER...

  • Page 2: Table Of Contents

    CONTENT Chapter 1 C7 Interface and Hardware Connection ................................1 1.1 C7 Interface ............................................2 1.2 Hardware Connection ........................................3 Chapter 2 LEDVISION Installation......................................4 Chapter 3 C7 Parameter Settings ......................................6 3.1 Connection Settings ......................................... 6 3.2 Basic Settings ............................................ 8 3.3 Advanced Settings ..........................................

  • Page 3: Chapter 1 C7 Interface And Hardware Connection

    Chapter 1 C7 Interface and Hardware Connection...

  • Page 4: C7 Interface

    1.1 C7 Interface Name Functions Indicator Green indicator shows Async or Sync display Switch Button Switch between Async & Sync display Environmental temperature and brightness monitoring; Sensor Interface Automatic brightness adjustment Ethernet Output RJ45, signal output, connecting with receiving cards...

  • Page 5: Hardware Connection

    www.colorlightinside.com 1.2 Hardware Connection...

  • Page 6: Chapter 2 Ledvision Installation

    Chapter 2 LEDVISION Installation First download the installation package of LEDVISION software from Colorlight’s official website www.colorlightinside.com, and complete the installation according to the diagrams below. 1. Run the software package, then select [ English ] for installer language. Click [ OK ] to move on.
  • Page 7 www.colorlightinside.com 2. After selecting a language, an installation wizard like below will appear. Click [ Next ]. Choose the installation location, click [ Browse ] to change the default target location, then click [ Next ] after completing; Choose components according to your own computer status, then click [ Install ] to complete; After the installation is complete you are ready to use LEDVISION.

  • Page 8: Chapter 3 C7 Parameter Settings

    3.1 Connection Settings 1. Before connecting your C7 to the computer, first click the control menu [ Control ] – [ Screen Control ], then select [ C-Series Play Box ] in Select Sending Device, then set up [ LED Screen Window...
  • Page 9 Net Card mode and C7 CONFIG interface. 2. Use a standard USB A/B cable to connect the C7 to your computer once the C7 is powered on, and note that one side is to connect to the USB port and the other side is for the C7 CONFIG port.

  • Page 10: Basic Settings

    ● Ensure the LED display is under normal configurations before setting the C7 parameters. ● When setting C7 parameters, you can connect the C7 to your PC through a standard USB A/B cable and connect the C7 to the LED screen through a network cable.
  • Page 11 1. After connecting the C7 to the computer, a C7 player will show up in Direct USB (you can check specific information and some basic settings of it by selecting the player).
  • Page 12 2. In Program Management, you can conduct a comprehensive management on programs included in the C7 player. All programs can be deleted in Program Management regardless of the type and source. 3. Schedule Settings: In Schedule Settings, click [ Add ] to add a scheduled command. Scheduled commands can conduct...
  • Page 13 www.colorlightinside.com...
  • Page 14 www.colorlightinside.com Commands can be edited and deleted after adding scheduled commands is completed.

  • Page 15: Advanced Settings

    www.colorlightinside.com 3.3 Advanced Settings 3.3.1 Playing Parameters ①LED Resolution The [ Width ] / [ Height ] you input must be equal to or slightly larger than the actual screen resolution. ②Input Type: HDMI or Internal Media ③Output [ Every Frame ] (Default) [ Every Other Frame ] (Choosing [ Every Other Frame ] can help avoid lag when the image loading area is too large) ④Control Area...

  • Page 16: Network

    www.colorlightinside.com 3.3.2 Network ①WiFi Check [ WiFi ] in the network tab and input your WiFi login information for [ SSID ] and [ Password ], then click [ Apply ] and [ Refresh ] to complete the setting. Click [ Details ] to check the connection status.
  • Page 17 www.colorlightinside.com ②WiFi Hotspot Input your [ SSID ] and [ Password ] to use a WiFi Hotspot; [ Band ]: 2.4G or 5G (5G mode will be faster and more reliable if both the smart phone and computer supports 5G WiFi) [ Channel ]: 14 or 24 choices, to avoid network overload.
  • Page 18 ③LAN (Network Cable) 1. [ Automatically Obtain IP Address ] (Default) When you connect your C7’s LAN port to a networked router, the C7 will automatically obtain an IP address. 2. [ Use Following IP Address ] To use a specific IP address, enter information for [ IP ], [ Subnet Mask ], [ Gateway ], then connect the C7 LAN port to the router.
  • Page 19 www.colorlightinside.com ④4G Check [ 4G ] in the network tab, click [ Apply ] and [ Refresh ] to access the 4G network. Click [ Test Network State ] to check the connection status.

  • Page 20: Chapter 4 Async Program Editing And Sync Playing

    www.colorlightinside.com Chapter 4 Async Program Editing and Sync Playing 4.1 Async Program Editing When you open LEDVISION, you will see [ LED1 ] in the program editing area. Right-click [ LED1 ] to add [ Normal Page ]. You can add [ File Window ] in [ Normal Page ], then add [ Image ] and [ Video ] under the [ File Window ] to add media for asynchronous play.

  • Page 21: Async Program Publishing

    www.colorlightinside.com 4.2 Async Program Publishing 4.2.1 Publish Program through Direct USB...
  • Page 22 ①In [ Program Editing Area ], after finishing program editing, select the [ Program Page ] that you are going to publish; ②Click [ C7 ] and then right-click to choose [ Publish current program to the selected player ]. You must rename the program and allow it to finish uploading to fully publish your program.

  • Page 23: Publish Program Through Ethernet Port

    www.colorlightinside.com 4.2.2 Publish Program through Ethernet Port...
  • Page 24 ①In [ Program Editing Area ], after finishing program editing, select the [ Program Page ] that you are going to publish; ②Click [ C7 ] and then right-click to choose [ Publish current program to the selected player ]. You must rename the program and allow it to finish uploading to fully publish your program.

  • Page 25: Publish Program Through Usb Disk

    www.colorlightinside.com 4.2.3 Publish Program through USB Disk 1. To begin publishing through USB, first insert your USB disk to the PC USB port; Click [ Publish Program to C-Series Playboxes ] to extend the program publishing window. Note: The USB disk should be empty before publishing for best performance. Remove previously updated programs before using it to update or play new programs and to avoid any problems.
  • Page 26 www.colorlightinside.com 2. The software will automatically identify the USB disk when plugged in. Click [ U Disk ] to choose [ Your USB’s Drive ]. ①Select the [ Program Page ] in Program Editing Area. ②Choose USB Disk Mode:...
  • Page 27 ●Play the program from the USB disk (automatically play the USB disk content after inserting it into the C7; the content won’t be stored on the C7) ●Update the program from the USB disk (automatically play the USB disk content after inserting it into the C7;...

  • Page 28: Sync Playing

    4.3 Sync Playing In sync playing, your C7 plays programs sent to its HDMI port by an external source like your PC. Note: The C7 will automatically switch to play the sync signal program when an external HDMI signal input...

  • Page 29: Chapter 5 Network Management Of C7

    2. C7 Network Management: After the controller end (PC, smart phone, or other device) and C7 are connected to the same LAN network, select [ LAN ], then [ Refresh ]. LEDVISION will automatically identify the C7 in the LAN network and place it in the Default Group.

  • Page 30: Add Group And C7

    1. Add Group: Select [ LAN ], then right- click to choose [ Add Group ]. 2. Add C7: Select any player group and right-click to choose [ Manually Add Player ], then input the C7’s corresponding IP (add this even if your device did not connect to the network).
