Operation Page:
** Be careful not to set an ON time for the machine to run while unattended **

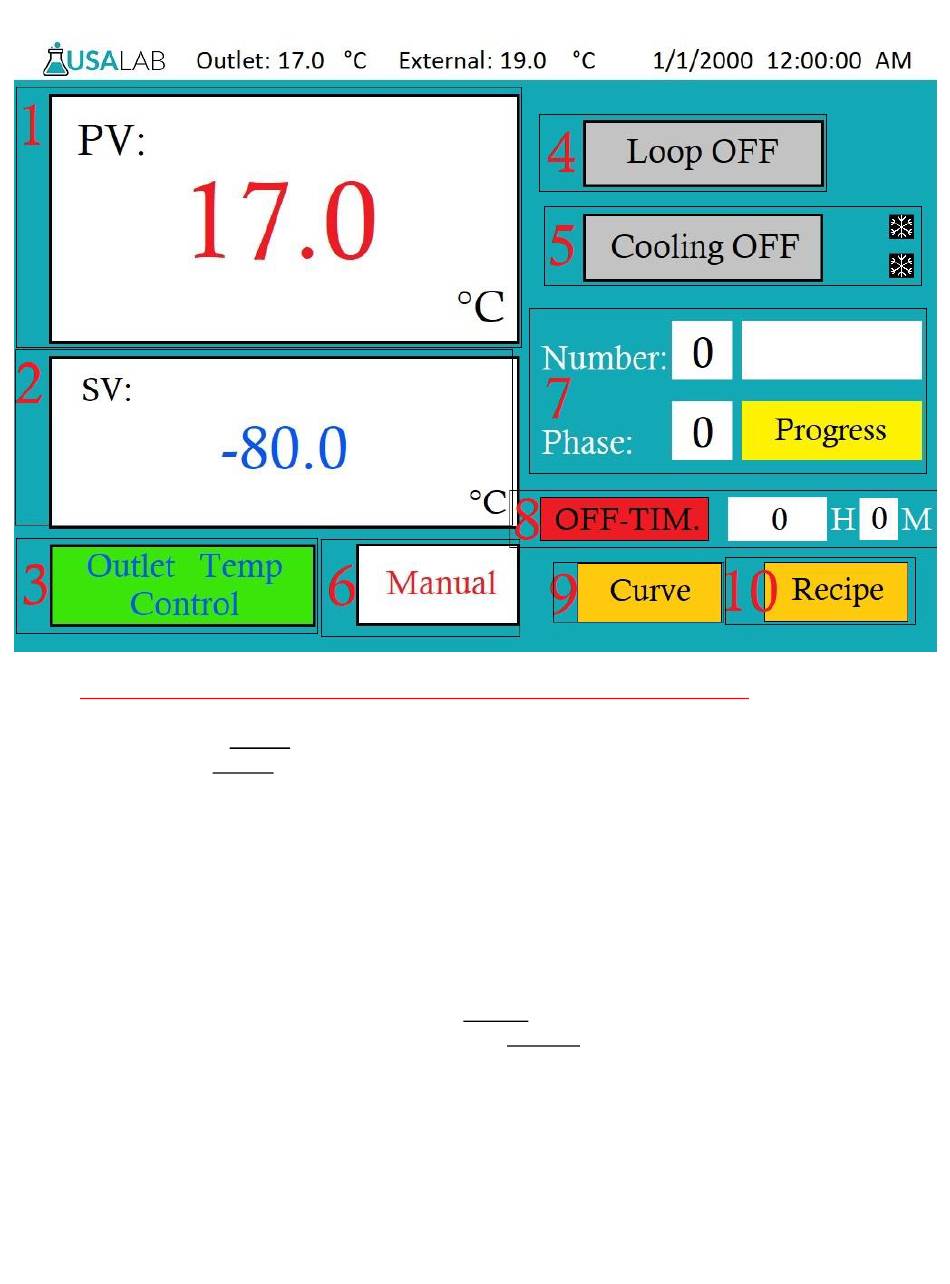

1. Point Value is the current transfer fluid temperature.
2. Set Value is the desired transfer fluid temperature.
3. You can select the desired measurement probe by pressing #3.
"Outlet temp control" uses the internal fluid line probe for temperature regulation.
"External temp control" uses the external probe for temperature regulation.
4. Loop Control button – This button turns the fluid pump on or off.
5. Cooling Control button & Compressor Indicators – This button turns cooling on or off.
Snowflake Indicator #1 – Stage 1 Enabled
Snowflake Indicator #2 – Stage 2 Enabled (only on -80°C models)
6. Control Style - Manual Control or Automated Control (Recipe Enabled)
7. Automated Control - This area displays the recipe #, name, and what phase the recipe is on. The
"Progress" button advances to the next phase without completing the current phase.
8. Turn-On / Shutdown Timer – This is a timer to turn on or off the system after the set time.
9. Curve - This button will take you to the Graph Page where it shows you the temperature over time. This
function is not persistent, all data will be cleared when navigating away from this page.
10. Recipe - This button will take you to the recipe programming page. This is where you make your recipe
for automated control of the chiller.
