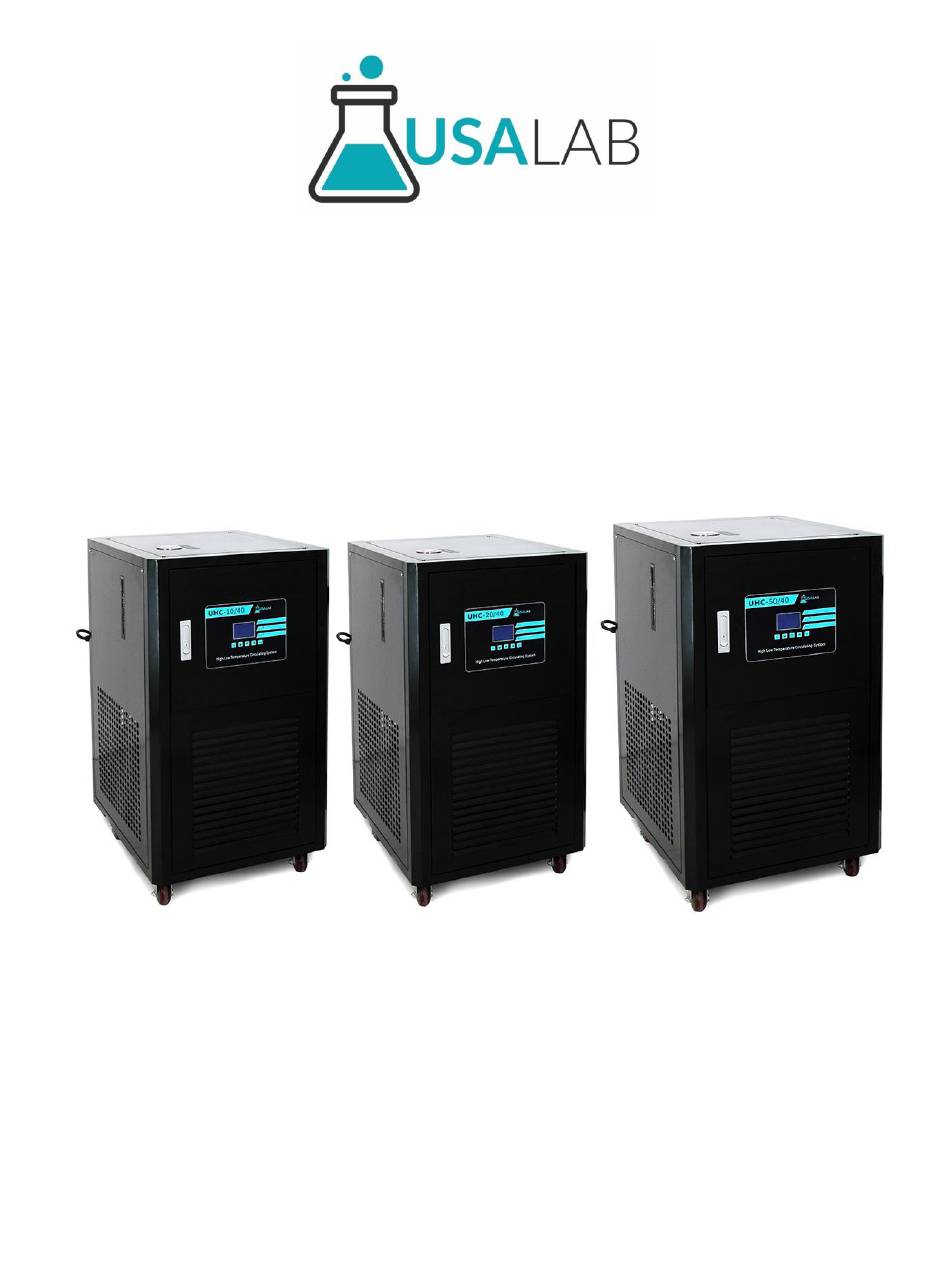

- Page 1 Recirculating Heater Chiller Manual Model: UHC Series UHC-10/40, UHC-20/40, UHC-50/40...
- Page 2 Index 1. Safety Instructions and Features 1.1 Safety Instructions 1.2 Features 1.3 Technical parameters 2. Diagrams 3. Control panel operation 4. Preparing for installation 5. Instructions for installation 6. Notes 6.1 Purpose 6.2 Storage 7. Maintenance 8. After-sales service 1 Safety Instructions and Features 1.1 Safety Instructions ONLY USE SILICONE OIL IN THE TANK.

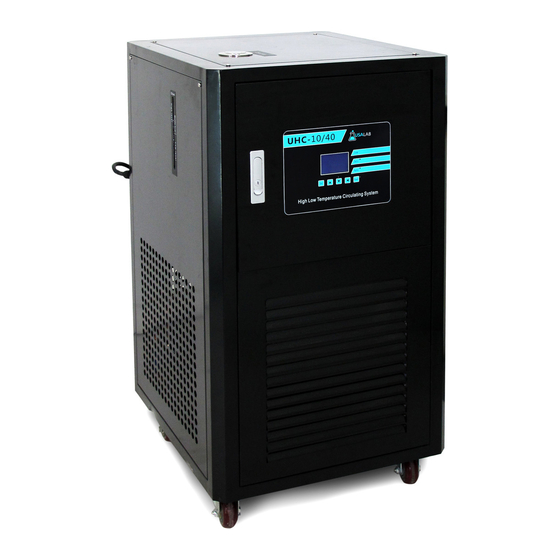

- Page 3 1.2 Features The UHC Series of high-performance closed loop recirculating heater chillers, use internationally recognized phase change compressors. High quality 304 stainless steel construction and a nickel-plated heat exchanger helps to inhibit corrosion. The pump can move your transfer fluid quickly. Casters aid in the portability of the chillers When connected to a reactor, the UHC can maintain consistent sub-zero or overboiling temperatures.
- Page 4 2 Diagrams...
-
Page 6: Control Panel Operation
3 Control Panel Operation [ Prior to running the chiller, your fluid loop should be setup and the tank filled ] Press Set (14) to enter the temperature set menu. Adjust the value using the Up (15) or Down (16). Then Press Set (14) again to save the desired value (5). -
Page 7: Preparing For Installation
4 Preparing for Installation UHC-10/40: UHC-20/40: UHC-50/40: 1. Please refer to the packing list above to check whether the components and parts are included. If there are any missing parts, please contact us immediately. 2. Remove any residue before assembly and keep all surfaces clean. 3. -
Page 8: Instructions For Installation
6 Notes 6.1 Purpose The UHC Series is intended to be used in conjunction with a reactor. If not used with a reactor, performance and accuracy cannot be guaranteed. The UHC is a small capacity flow through heater and heat exchanger for liquid jackets in reaction vessels. - Page 9 We offer a 30-day return policy from when your package is delivered to your shipping address. By placing an order with USA Lab, you express that you have read and agreed to the following return policies. • We do not accept returns for customized items. When purchasing a customized item, you agree that there are no returns due to the nature of the item(s) being specific to your needs.
