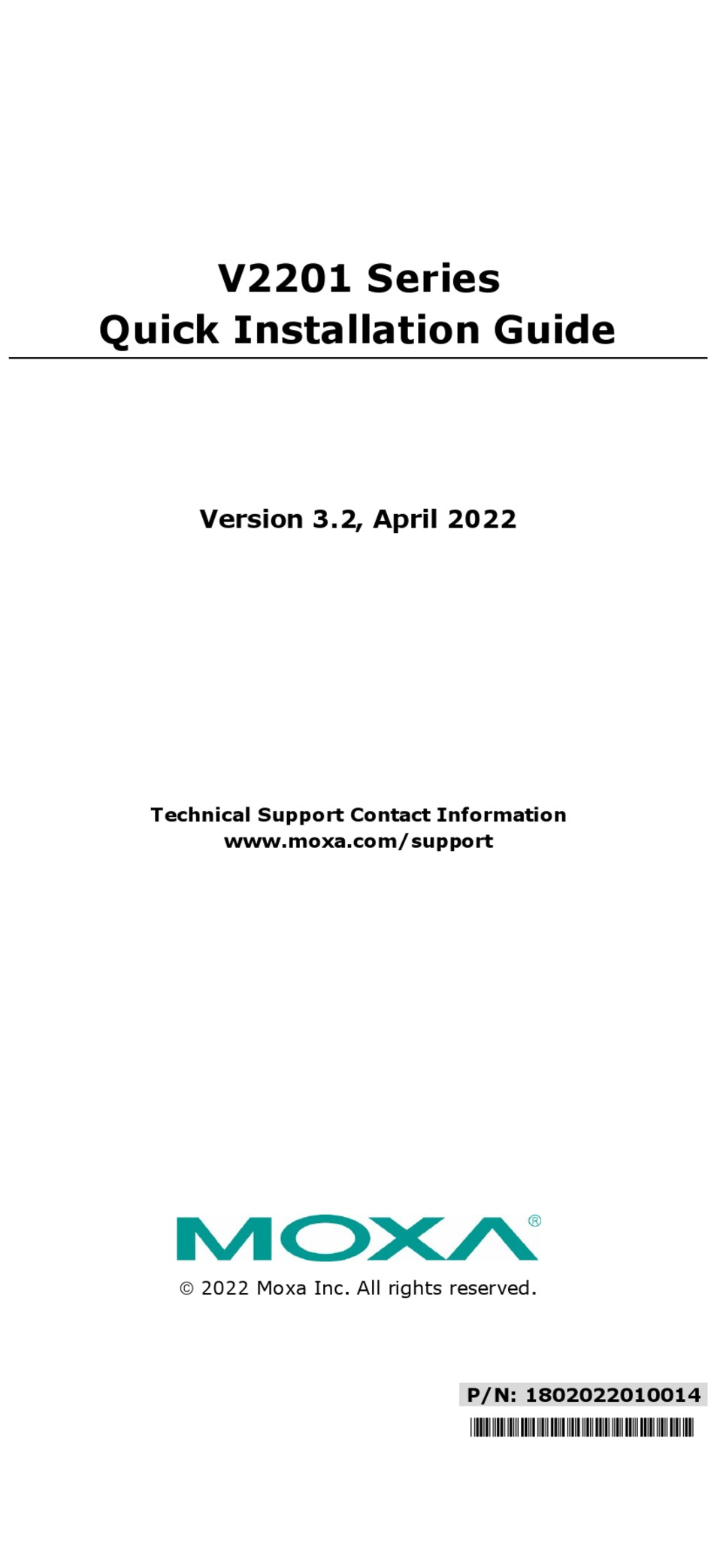

- Page 1 V2201 Series Quick Installation Guide Version 3.2, April 2022 Technical Support Contact Information www.moxa.com/support 2022 Moxa Inc. All rights reserved. P/N: 1802022010014 *1802022010014*...
-
Page 2: Package Checklist
Overview The Moxa V2201 Series ultra-compact x86 embedded computer is based on the Intel® Atom™ E3800 Series processor, features the most reliable I/O design to maximize connectivity, and supports dual wireless modules, making it suitable for a diverse range of communication applications. - Page 3 Right Panel Left Panel LED Indicators The following table describes the LED indicators located on the front panel of the V2201. LED Name Status Function Power Green Power is on and computer is functioning normally. Power is off User Event has occurred Defined No alert mSATA...
- Page 4 LED Name Status Function LAN 1 Yellow Steady On: 1000 Mbps Ethernet link Blinking: Data is being transmitted Green Steady On: 100 Mbps Ethernet link Blinking: Data is being transmitted 10 Mbps Ethernet link or LAN is not connected LAN 2 Yellow Steady On: 1000 Mbps Ethernet link Blinking: Data is being transmitted Green Steady On: 100 Mbps Ethernet link...
- Page 5 Socket 1: USB signal, for 3G/LTE Mini PCIe card (Sierra Wireless MC9090, MC7304, or MC7354). NOTE: The cellular card heat sink is installed in socket 1. Socket 2: Standard USB + PCIe signals, for Wi-Fi Mini PCIe card (SparkLAN WPEA-252NI). STEP 4: Connect the corresponding wireless module cards to connectors of the Mini PCIe...
-
Page 6: Installation
Installation: STEP 1: Insert the upper lip of the DIN rail into the DIN-rail mounting kit. STEP 2: Press the V2201 towards the DIN rail until it snaps into place. Removal: STEP 1: Pull down the latch on the mounting kit with a screwdriver. STEP 2 &... -
Page 7: Connector Description
Step 2: Use two screws on each side to attach the V2201 to a wall or cabinet. The product package does not include the four screws required for attaching the wall-mounting kit to the wall or cabinet; they need to be purchased separately. - Page 8 ATTENTION This product is intended to be mounted to a well-grounded mounting surface, such as a metal panel. SG: The Shielded Ground (sometimes called Protected Ground) contact is the right most one on the 3-pin power terminal block connector when viewed from the angle shown here. Connect the SG wire to an appropriate grounded metal surface.
- Page 9 Ethernet Ports The 10/100/1000 Mbps Ethernet ports use RJ45 connectors. 10/100 Mbps 1000 Mbps ETx+ TRD(0)+ ETx- TRD(0)- ERx+ TRD(1)+ – TRD(2)+ – TRD(2)- ERx- TRD(1)- – TRD(3)+ – TRD(3)- Serial Ports The serial ports use DB9 connectors. Each port can be configured by software for RS-232, RS-422, or RS-485.
- Page 10 DI/DO The V2201 comes with four digital inputs and four digital outputs on a 2 x 5 terminal block. Reset Button Press the “Reset Button” on the left side panel of the V2201 to reboot the system automatically. Real-time Clock The V2201’s real-time clock is powered by a lithium battery.
-
Page 11: Configuring The Ethernet Interface
Configuring the Ethernet Interface Linux OS If you use the console cable to configure network settings for the first time, use the following commands to edit the interfaces file: #ifdown –a //Disable LAN1~LAN2 interface first, before you reconfigure the LAN settings. LAN1 = eth0, LAN2 = eth1// #vi /etc/network/interfaces //check the LAN interface first// After the boot setting of the LAN interface has been modified, use the...
