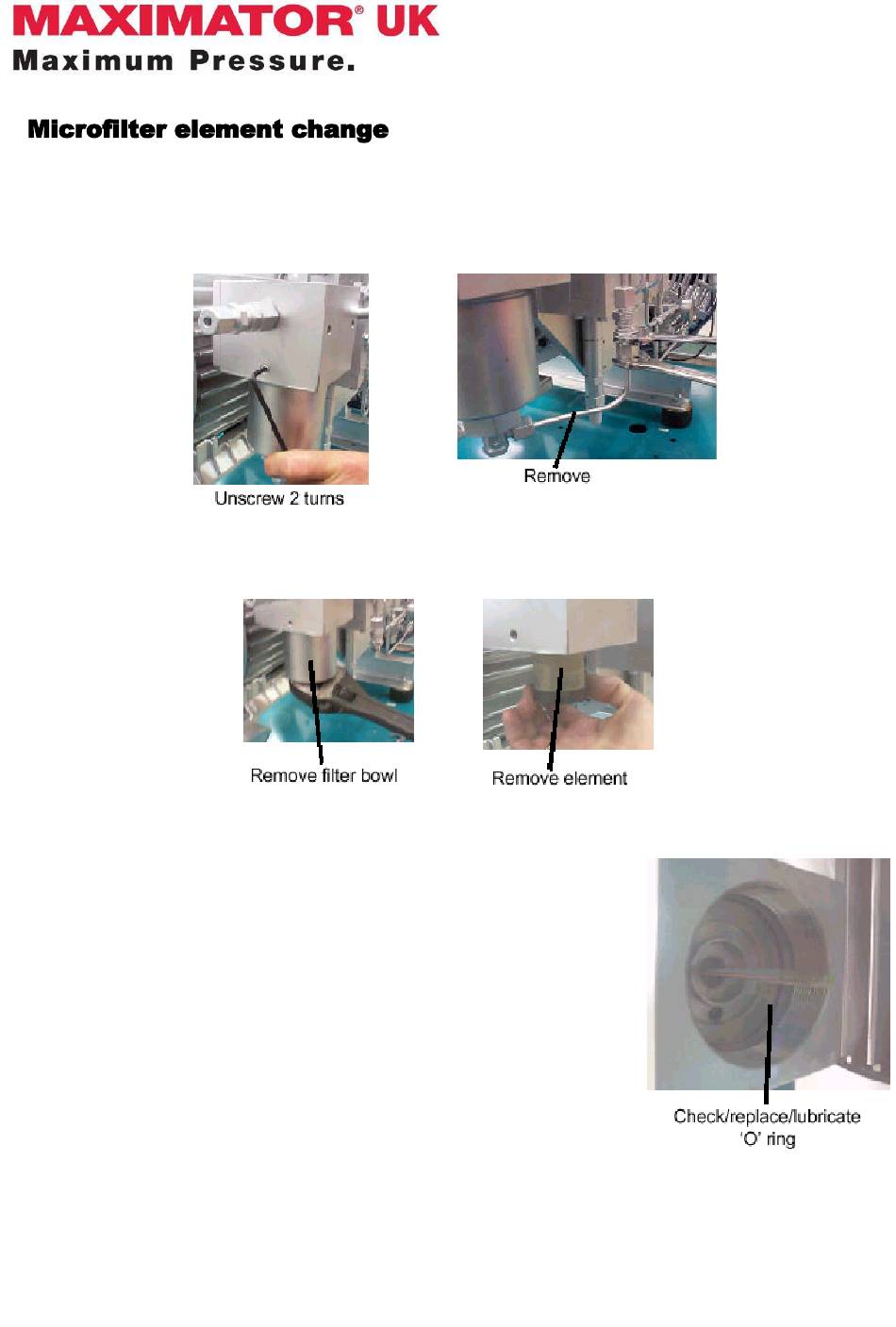

Microfilter element change
The Microfilter has a replaceable element (Part number 163140). The "O" ring 169531 and the disc
101184 should be replaced together with the element. To change the element, the compressor
must be stopped:
Unscrew the locking grub screw 2 turns.
Remove the drain pipe.
Using a large spanner, unscrew the filter bowl from the body.
Unscrew and remove the filter element by hand.
Clean the inside of the bowl and body with a cloth.
Check the condition of the internal 'O' ring. If in doubt, re-place the 'O'
ring.
Screw on the new filter element by hand.
Replace the filter bowl and tighten until the bowl only UNTIL it stops
turning. The bowl seals on its 'O' ring, not on the thread or the face.
DO NOT OVERTIGHTEN.
Replace the drain pipe. If necessary, loosen the Banjo fitting to align
the pipe, ensuring that the arrows on the 1 way valve point upwards.
Tighten the locking grub screw.
