Introduction
This section provides detailed information about the high pressure compressor, including:
•
General information
•
Description of components
•
Servicing
•
Parts lists
•
Drawings
The VP30 (also referred to as VP500) compressor is a Three Stage reciprocating Air cooled
compressor with a maximum
working pressure of 350 Bar (5000 psi). Lubrication is by Integral crankshaft driven oil pump to
crankshaft and big end bearings and by splash/oil mist to the cylinder bores and small end
bearings.
Intercoolers are fitted at each stage of compression, with condensate separators and safety
valves. The compressor is driven by an induction motor and belt driven at 1230 RPM.

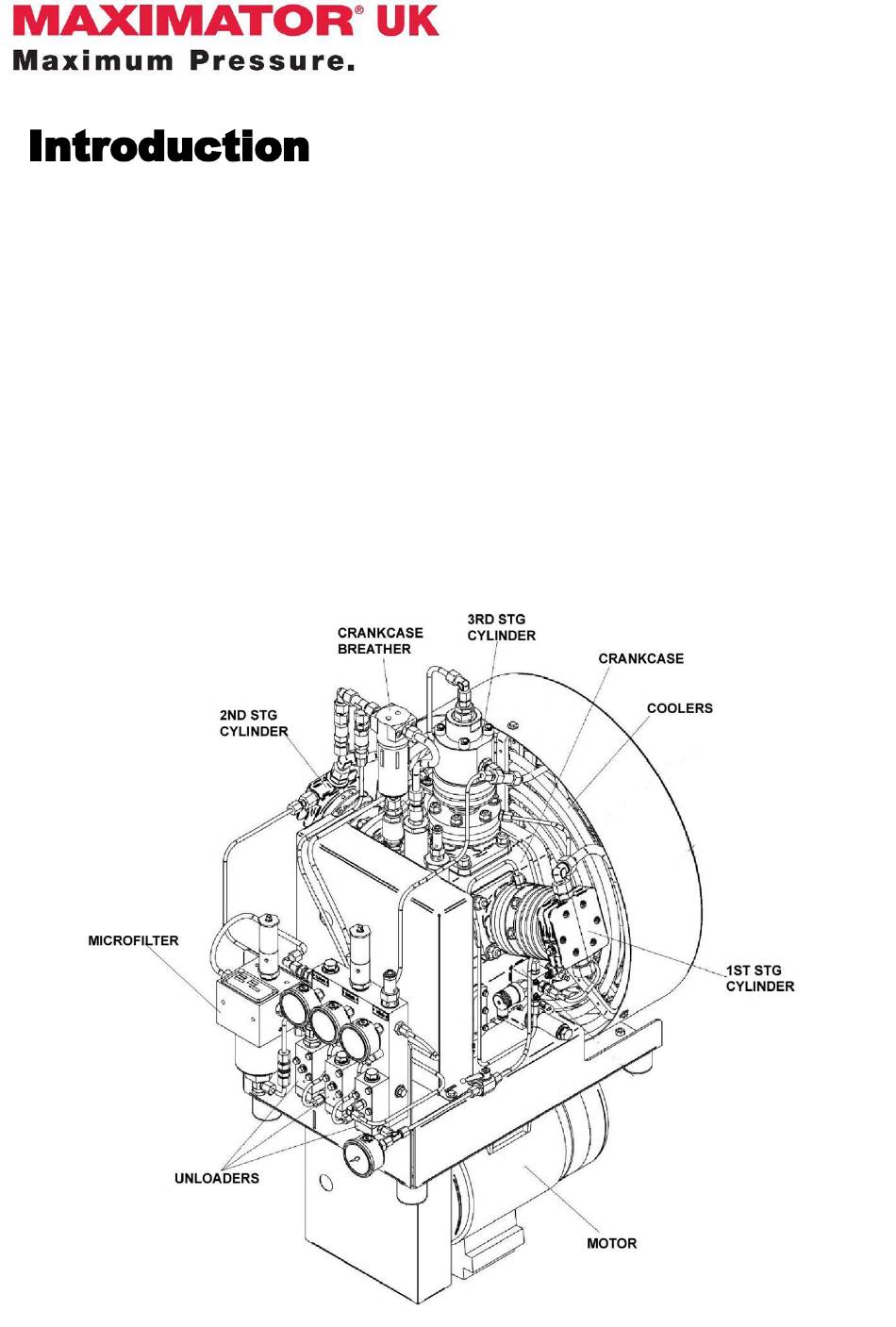

The main compressor components are identified in the photographs below.
