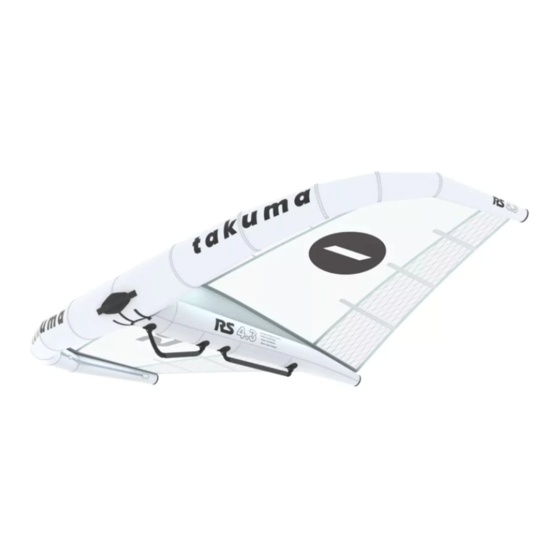

- Page 1 RS wing USER’S GUIDE...
- Page 2 The use of a RS WING exposes you and others around you to serious risks. It is recommended to take lessons by a certified instructor before using this product on your own.
- Page 3 RS WING overview Inflating the RS WING Leash & pump attachment loop Inflation/deflation valve Place your TAKUMA RS WING on a clean and flat surface. Make sure that the leading edge is facing into the wind. Leading edge Power tip battens...
- Page 4 Repeat the same process for the strut inflation Inflate the RS WING to the recommended 8 PSI.
- Page 5 Deflating the RS WING Place your TAKUMA RS WING on a clean and flat surface. Make sure that the leading edge is facing into the wind. Wind direction Repeat the same process for the strut deflation...
- Page 6 Packing the RS WING Make sure the wing is completely dry before folding and packing away. Do not hang by leading edge handle to dry. The strut bladder may bunch up and pop when you inflate again.
- Page 7 Power tip battens insert...
- Page 8 Power tip battens removal Direct control bars removal...
- Page 9 Leading edge bladder repair Use the repair kit included for small air leaks or punctures. For bigger tears we recommend taking it to a professional repair center. Open the wing tip and pull out the bladder just enough to attach a long line around the end using a larks head, repeat the other side.
- Page 10 Inflate the bladder. Fully deflate the bladder, sand down the area around the puncture using the sandpaper provided and clean with alcohol. Place the bladder on a smooth flat surface and stick a repair patch over the puncture. Reinflate the bladder to check it is fixed properly. Immerse the bladder in water, check for air bubbles to locate the leak.
- Page 11 Strut bladder repair Open the strut tip and pull out the bladder. Carefully push the inflation valve inside the leading edge, this may require slight force. Attach a line around the end using a larks head. Make sure the line is at least double the length of the strut.
- Page 12 Please refer to our website to review our warranty policy: Useful care tips takuma.com Frequently check your wing for damage. If you notice any small holes or tears in the canopy, fix it with the repair kit supplied or take it to your local repair center.
- Page 13 After-Sales Service: customerservices@takuma.com Please find our tutorial videos on our youtube channel: http://youtube.takuma.com...
