1. Remove the payload transport lock.
2. If not already attached, attach the payload compartment. Ensure that the SD card
for the camera is inserted in the payload compartment. The payload compartment
must be attached for the flight operation.
3. Attach the rear fuselage to the main body.
4. & 5.
Attach the wings.
6. Attach the elevator.
7. Take off the battery caps.
8. Connect the battery.

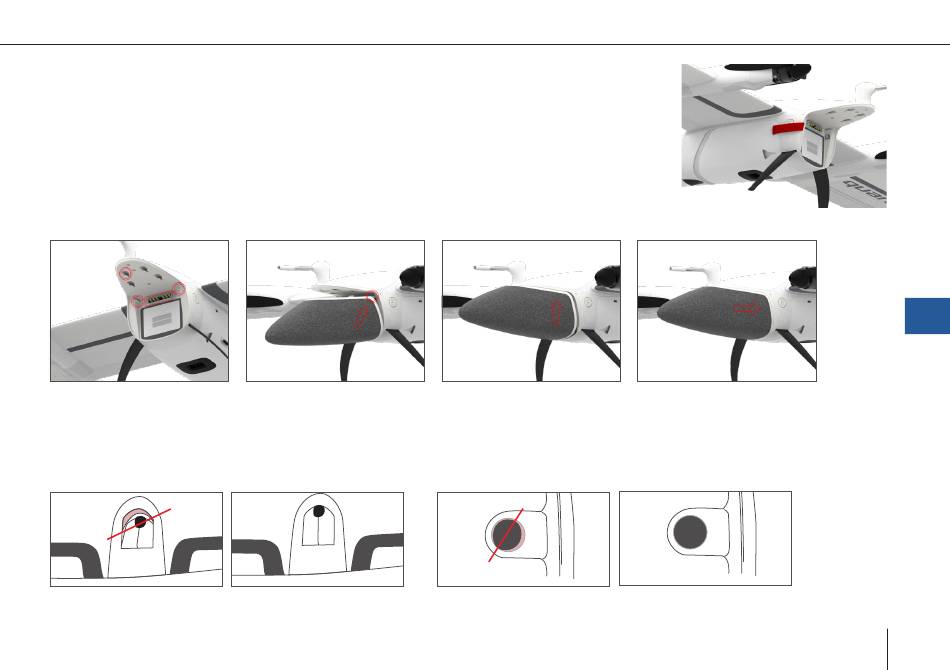

Nose lock mechanism
All parts are connected by a lock mechanism. No tools are required for the setup. Check all connections and ensure that the lock
mechanism is in place.
WRONG
Elevator
The UAV will power up automatically.
Align the battery according to the
picture.
CORRECT
Elevator
Connect the four mounting hooks
on the top of the battery to the
main body.
WRONG
Wing / Rear Fuselage / Nose
Flight setup – step by step
Slide the battery backwards. Make
sure the locking mechanism is in
place.
CORRECT
Wing / Rear Fuselage / Nose
