6.1.1 Menu overview

Change the menu of QS Charger by pressing
Scroll through the menu or the submenu by selecting
Select a menu item by pressing
on the user panel.
STOP/ESC
on the user panel. To go back select
START/ENT

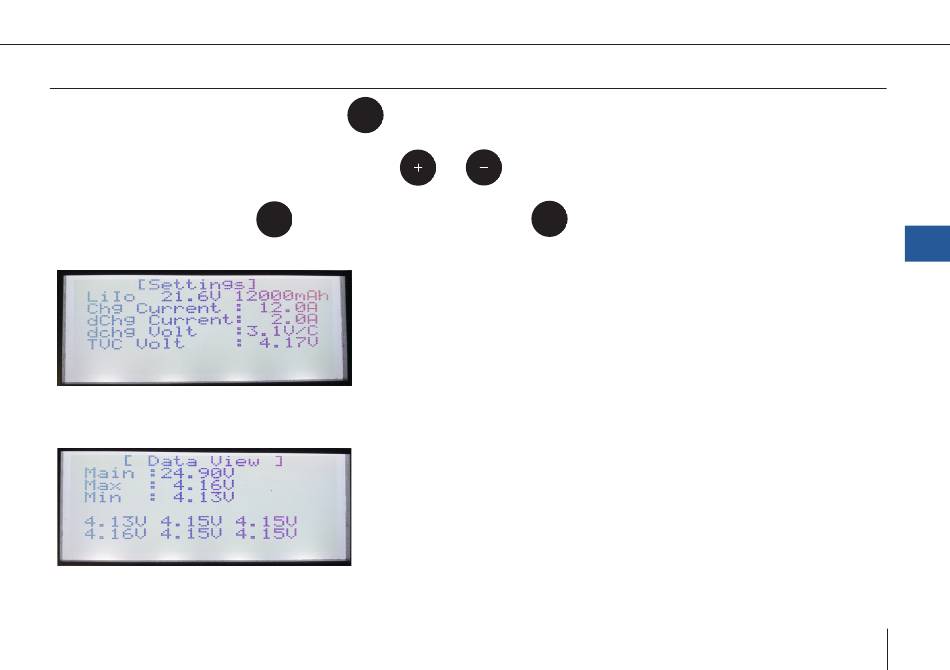

[Settings]
Battery type, nominal voltage, nominal capacity
Chg = Charging
dChg = Discharging
TVC (Terminal Voltage Control) = Final charge voltage per cell
All settings are default settings and can not be edited.
[Data View]
Main = Current total voltage of the six serial connected cells
Max / Min = Current minimum / maximum voltage of the cells
Current voltage of each cell
and on the user panel.
.
STOP/ESC
Battery & RC Transmitter
