Mechanical Installation

Placement
• The device is intended to be mounted on top of a machine or cabinet through an M50
(50.5 mm) hole using the included sealing ring and nut.
• The top mounting surface, in contact with the sealing, must be flat with a finish equivalent
to Ra 3.2 or finer and cleaned and free from oils and greases.
• For optimal reception, cellular devices require a zone around them clear of objects that
could obstruct or reflect the signal. To avoid interference, a minimum distance of 50 cm
between Wireless Bolt LTE and other cellular devices should be observed.
Tightening torque: 5 Nm ±10 %

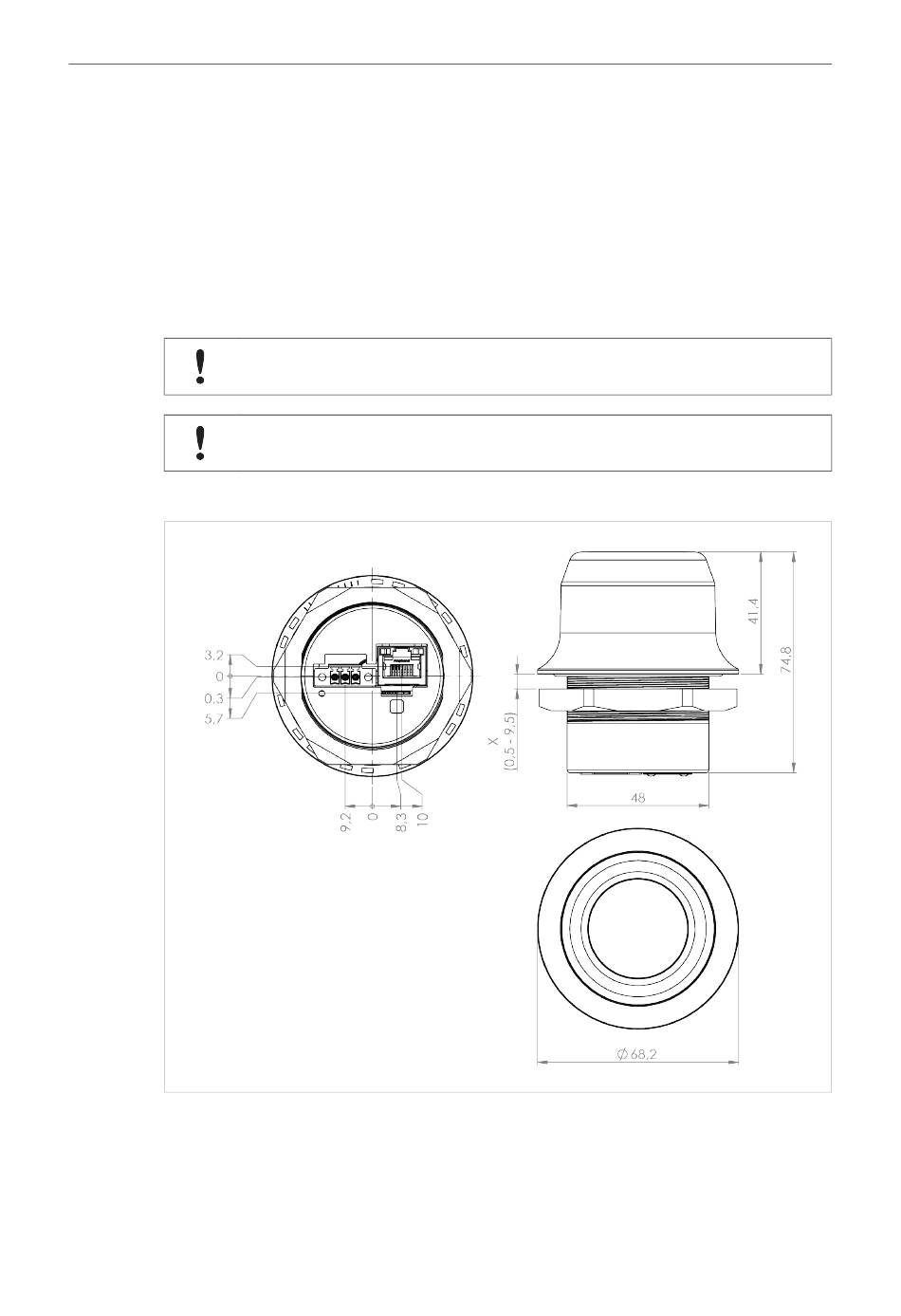

Fig. 2 Installation drawing
All measurements are in mm.
® ™
Anybus Wireless Bolt LTE User Manual
Make sure that the sealing ring is correctly placed in the circular groove in the top part of
the housing before tightening the nut.
Always hold the BOTTOM part of the unit when untightening the nut, not the top part
(the cap).
