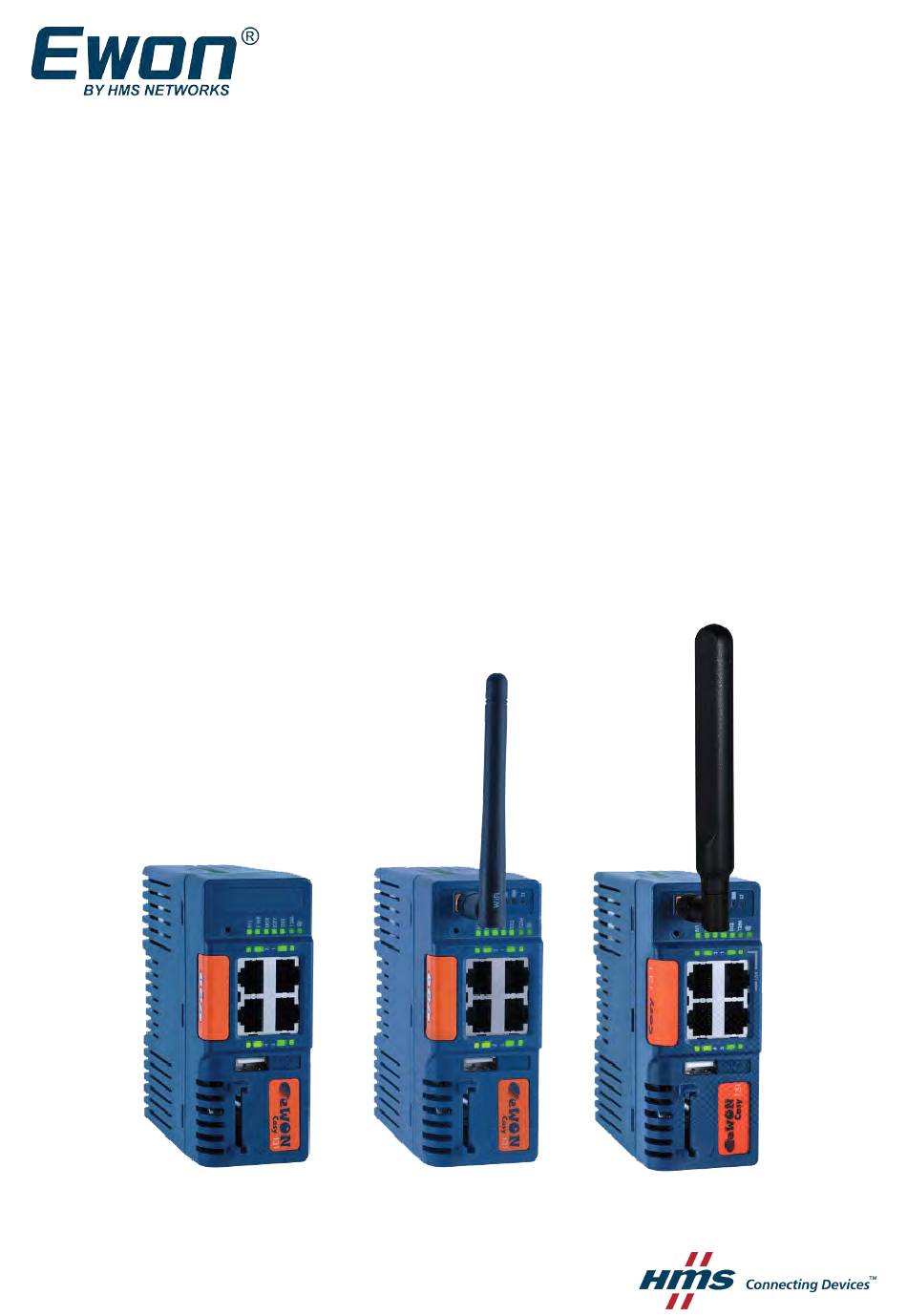

- Page 1 Ewon Cosy 131 INSTALLATION GUIDE IG-0022-00 2.8 en-US ENGLISH...
-
Page 2: Important User Information
The effects caused by any direct or indirect use of such aspects of the product are undefined and may include e.g. compatibility issues and stability issues. IG-0022-00 2.8 en-US Ewon Cosy 131 Installation Guide... -
Page 3: Table Of Contents
About This Document .......................3 Document History ......................3 Related Documents ......................3 Trademark Information .....................3 Product Summary........................ 4 Concept of the Ewon Cosy 131 ...................4 Hardware General Specification..................4 Typical Applications ......................4 Type & Part Numbers .......................4 Safety, Environmental & Regulatory Information ............. 5 Scope..........................5... - Page 4 Specification of the External Power Supply..............26 Digital Output & Digital Inputs..................27 Possible Features ......................28 D Supported Wireless Wi-Fi Frequencies ................29 IG-0022-00 2.8 en-US Ewon Cosy 131 Installation Guide...
-
Page 5: Preface
Preface 3 (30) Preface About This Document The present Installation Guide describes the hardware of the Ewon Cosy 131 which is an industrial gateway / router fully compatible with the Talk2M cloud connectivity services. For additional related documentation and file downloads, please visit www.ewon.biz/support. -
Page 6: Product Summary
Product Summary 4 (30) Product Summary Concept of the Ewon Cosy 131 There are 4 models of the Ewon Cosy 131, each proposing a different communication media: • 4 Ethernet ports only, labeled as Ewon Cosy 131 Ethernet • Wi-Fi & 4 Ethernet ports, labeled as Ewon Cosy 131 Wi-Fi •... -
Page 7: Safety, Environmental & Regulatory Information
5 (30) Safety, Environmental & Regulatory Information Scope This chapter addresses safety, environmental & regulatory information for the Ewon Cosy 131. Power Supply The external power supply is a third party device that is not part of this certification. The device shall be powered by an LPS power supply certified according to IEC/UL60950-1 or Class2 per NEC or by a 12-24Vdc 100w max. -
Page 8: Field Implementation & Environmental Conditions
Ingress Protection The Ewon Cosy 131 has an IP20 protection grade. Therefore, the Ewon Cosy 131 is NOT suited for outdoor mounting. It has to be integrated in an electrical cabinet, protected from excessive heat, humidity and dust. Do not push any sharp object into the air vents or openings of the equipment. - Page 9 Safety, Environmental & Regulatory Information 7 (30) Fig. 1 DIN rail mounting position Description SIM card slot DIN rail mounting bracket IG-0022-00 2.8 en-US Ewon Cosy 131 Installation Guide...
- Page 10 To ensure a proper ventilation of the equipment, a free gap of at least 2 cm must be respected in front of all upper & lower ventilation openings of the unit. A free gap of at least 1 cm must be respected on each side of the unit. IG-0022-00 2.8 en-US Ewon Cosy 131 Installation Guide...
- Page 11 USB cable must be: • Shorter than 3m • USB 2.0 type A (on Ewon Cosy 131 side) • Minimum current per contact : 0.5A (or better) Caution To prevent accidentally pulling out wires, be sure that cables are firmly attached to wire connectors.
-
Page 12: Internal Battery
Ethernet and USB to comply with the EMC requirements. Internal Battery The Ewon Cosy 131 contains a CR2032 battery. This battery is used to maintain the real time clock up-to-date even when the unit is not powered. Here is a list of risks and recommendations regarding the battery: •... -
Page 13: Hardware Description
Hardware Description 11 (30) Hardware Description Label The identification label of the Ewon Cosy 131 is placed on the right hand side of the housing. The different parts of the label are described hereunder: Label Description Part Number (see syntax table below) Serial Number in the form: YYWW-SSSS-PP •... - Page 14 Hardware Description 12 (30) Ewon Cosy 131 — 3G+ penta-band label Ewon Cosy 131 — 4G Japan label Ewon Cosy 131 — 4G APAC label Ewon Cosy 131 — 4G EU label Ewon Cosy 131 — 4G NA label The following table explains the Part Number syntax:...
-
Page 15: Mechanical Dimensions
Hardware Description 13 (30) Mechanical Dimensions Fig. 5 Mechanical dimensions of the Ewon Cosy 131 Overall Description 4.3.1 Front Description Reset button Status LEDs LAN / WAN Ethernet ports and corresponding status LEDs (Red: WAN and Green: LAN) USB slot SD card slot Fig. -
Page 16: Status Led
Steady orange = Poor signal ▅ ▆ Reception signal level Steady orange = Signal is OK ▅ ▆ ▇ Reception signal level Fig. 9 Status LEDs representation – Wi-Fi model Steady orange = Signal is good IG-0022-00 2.8 en-US Ewon Cosy 131 Installation Guide... -
Page 17: Radio Communication Models
The antenna used for this transmitter has to be installed in a space providing a safe distance of at least 20 cm without encountering anyone and must not be collocated or operating in conjunction with any other antenna or transmitter. 4.4.1 Ewon Cosy 131 with Internal Wi-Fi Model (EC6133C_00MA) Item Value(s) Protocols and frequencies IEEE802.11b/g/n, 2.4GHz - Channels: 1 to 11(inclusive) - Page 18 Device conformity has been tested with the reference antenna: Taoglas TG.09.0113 As seen in Mounting Recommendations, p. 6, SIM card tray is located at the rear of the Ewon Cosy 131. Additional information: • The product complies with the RE directive, the FCC, the IC and Japan regulations related to the GSM modems.
- Page 19 Device conformity assessment has been performed with the reference antenna: Taoglass G.30.B108111 As seen in Mounting Recommendations, p. 6, SIM card tray is located at the rear of the Ewon Cosy 131. Additional information: • The product complies with the Japanese regulations related to the GSM modems.
- Page 20 Hardware Description 18 (30) 4.4.4 Ewon Cosy 131 with Internal 4G APAC Quad-band Modem (EC6133F_00MA) Item Value(s) Protocols and LTE: B1, B3, B5, B7, B8, B18, B19, B21, B28, B38,B39, B40, B41 UMTS: B1, B5, B6, B8, B9, B19,B39 frequencies...
- Page 21 Device conformity assessment has been performed with the reference antenna: Panorama B4BE-7-27 As seen in Mounting Recommendations, p. 6, SIM card tray is located at the rear of the Ewon Cosy 131. Additional information: • The product complies with the RE directives related to the GSM modems.
-
Page 22: Lan Switch Specifications
4.5.1 Boot Process After powering on or requesting a reboot of the Ewon Cosy 131, a wait is required to get the LAN switch feature fully operational. (approximately 45 sec). The ultimate decision the Cosy 131 takes when it can no more run a given configuration is to reboot itself. - Page 23 The Ethernet ports functionality can be configured as wanted except for the port #1 which always remains in LAN mode. Ethernet port #1 must be used for maintenance operation such as update or recovery process. IG-0022-00 2.8 en-US Ewon Cosy 131 Installation Guide...
-
Page 24: Ip Address & Access To The Web Configuration
Connect a LAN port (port #1 is always set as a LAN port) of the Ewon Cosy 131 to one’s computer either through a point-to-point connection or a network where there is no risk Cosy 131's default IP address (10.0.0.53) would conflict with another connected device. -
Page 25: Troubleshooting
23 (30) Troubleshooting Normal Boot Process The normal boot process of the Ewon Cosy 131 takes approximately 25 seconds to complete. During this process, all LEDs are first shortly on (except BI1) then only the PWR LED stays steady green. -
Page 26: Impact Matrix Of A Reset
24 (30) • Power off the Ewon Cosy 131 and power it on again to reboot the unit in a normal mode. As described before, the Cosy 131 returns to its default COM parameters and factory IP addresses (such as LAN 10.0.0.53) after this level 2 reset is performed. -
Page 27: Connector Pinout & Related Specifications
(between +12 et +24 VDC) DI_COM Ground of the input (isolated) Input signal 1 Input signal 2 Power in Between +12 and +24 VDC VDD + Power in GND — Functional earth IG-0022-00 2.8 en-US Ewon Cosy 131 Installation Guide... -
Page 28: B Specification Of The External Power Supply
Specification of the External Power Supply The Ewon Cosy 131 must be powered by a 12-24Vdc 100w max. certified for 60°C and for altitudes up to 2000m for conformity to the UL/IEC 62368-1 or by a safety Low Power Supply (LPS) in accordance with clause 2.5 of UL/IEC 60950-1 Ed2. -
Page 29: C Digital Output & Digital Inputs
This is a sink only output to ground (the transistor acts as a switch ground). During the starting boot process, the DO will be switched ON for a short time (2 seconds) IG-0022-00 2.8 en-US Ewon Cosy 131 Installation Guide... -
Page 30: Possible Features
DO is set to 1. The configuration of these conditions has to be done during the “DI Config” wizard which offers the opportunity whether the Digital Input should be used or not and for which purpose. IG-0022-00 2.8 en-US Ewon Cosy 131 Installation Guide... -
Page 31: D Supported Wireless Wi-Fi Frequencies
29 (30) Supported Wireless Wi-Fi Frequencies Fig. 15 Supported Wi-Fi frequencies Supported channels frequencies are between channel 1 (2,412 Ghz) and channel 11 (2,462 Ghz). Channels 12, 13 & 14 are not supported IG-0022-00 2.8 en-US Ewon Cosy 131 Installation Guide... - Page 32 last page © 2020 HMS Industrial Networks Box 4126 300 04 Halmstad, Sweden info@hms.se IG-0022-00 2.8 en-US / 2020-01-20 / 16782...
