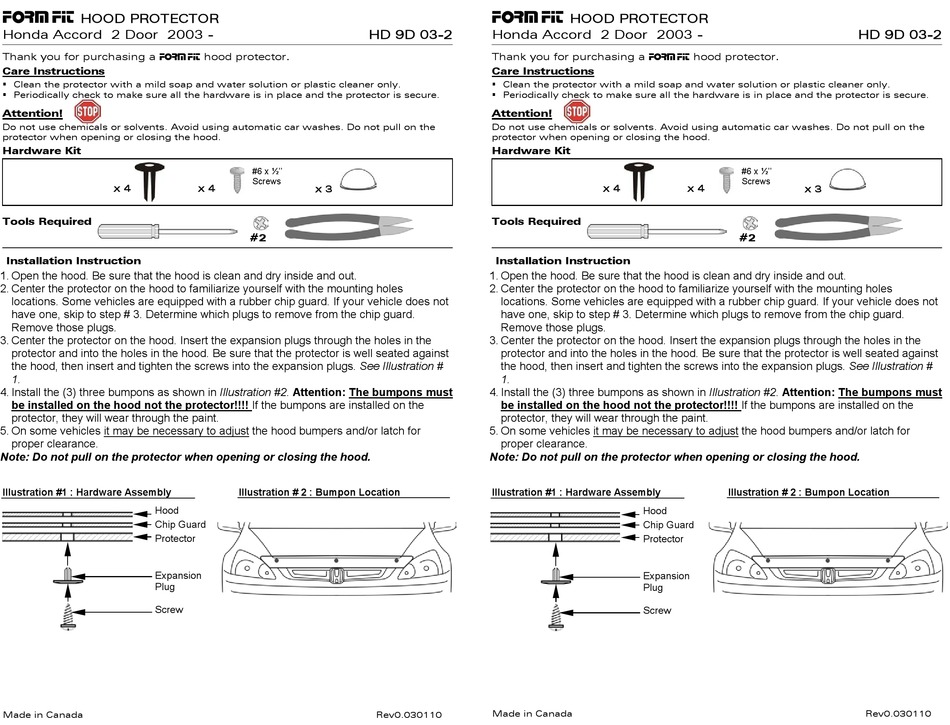

FORM FIT HD 9D 03-2 Installation Instructions

FORM FIT
HOOD PROTECTOR
Honda Accord 2 Door 2003 -
Thank you for purchasing a form fit hood protector.

Care Instructions

Clean the protector with a mild soap and water solution or plastic cleaner only.
Periodically check to make sure all the hardware is in place and the protector is secure.

Attention!

Do not use chemicals or solvents. Avoid using automatic car washes. Do not pull on the
protector when opening or closing the hood.

Hardware Kit

x 4

Tools Required

Installation Instruction

1. Open the hood. Be sure that the hood is clean and dry inside and out.
2. Center the protector on the hood to familiarize yourself with the mounting holes
locations. Some vehicles are equipped with a rubber chip guard. If your vehicle does not
have one, skip to step # 3. Determine which plugs to remove from the chip guard.
Remove those plugs.
3. Center the protector on the hood. Insert the expansion plugs through the holes in the
protector and into the holes in the hood. Be sure that the protector is well seated against
the hood, then insert and tighten the screws into the expansion plugs. See Illustration #
1.
4. Install the (3) three bumpons as shown in Illustration #2. Attention: The bumpons must
be installed on the hood not the protector!!!! If the bumpons are installed on the
protector, they will wear through the paint.
5. On some vehicles it may be necessary to adjust the hood bumpers and/or latch for
proper clearance.
Note: Do not pull on the protector when opening or closing the hood.

Illustration #1 : Hardware Assembly

Hood
Chip Guard
Protector
Expansion
Plug
Screw
Made in Canada
HD 9D 03-2
#6 x ½''
Screws
x 4 x 3
#
2

Illustration # 2 : Bumpon Location

Rev0.030110
