SImx LHT1148 Installation Instructions

PRODUCT COMPLIANCES
EN60598-1:2015 EN60598-2.1:1989 EN61347-1:2015
EN62031:2008 EN62471:2008 EN62493:2015
EN61547:2009 EN61000-3.2:2014 EN61000-3.3:2013
MANUFACTURERS EXTENDED WARRANTY
This product is guaranteed by SIMX Ltd and Ventair Pty Ltd for 3 years from the date of purchase against
faulty materials or workmanship which affects its designed ability to operate. During this period if the
product has a defect of this nature it will be repaired or replaced free of charge by SIMX with the same
item, or a similar one of higher specification.
ON CONDITION THAT:
• The buyer returns it to the seller from whom it was bought, freight paid.
• The product has been bought by the user (ie. a receipt/sales invoice is produced as proof of purchase).
• The product has not been misused or handled carelessly, installed in any way contrary to the
installation instructions, or installed in any unusually exposed or harsh environmental conditions.
This guarantee excludes liability for discolouration and/or delamination of paint or plastic, or any user
serviceable parts. It does not confer any rights other than those expressly set out above and does not
cover any claims for consequential loss or damage.
Our Goods come with guarantees that cannot be excluded under either Australian, or New Zealand,
Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the Goods repaired or replaced if
the Goods fail to be of acceptable quality and the failure does not amount to a major failure.
Distributed in New Zealand by Simx Ltd
Ph: +64 9 259 1660 | Technical Support Ph: +64 9 259 1662
e: sales@simx.co.nz | www.simx.co.nz
EN61347-2.13:2014
EN55015:2013
and all relevant amendments
Distributed in Australia by Ventair Pty Ltd
4 Capital Place, Carrum Downs, 3201 VIC, AUSTRALIA.
Technical Support: 1300 665 926
e: info@ventair.com.au | www.ventair.com.au
PUB1630 2106

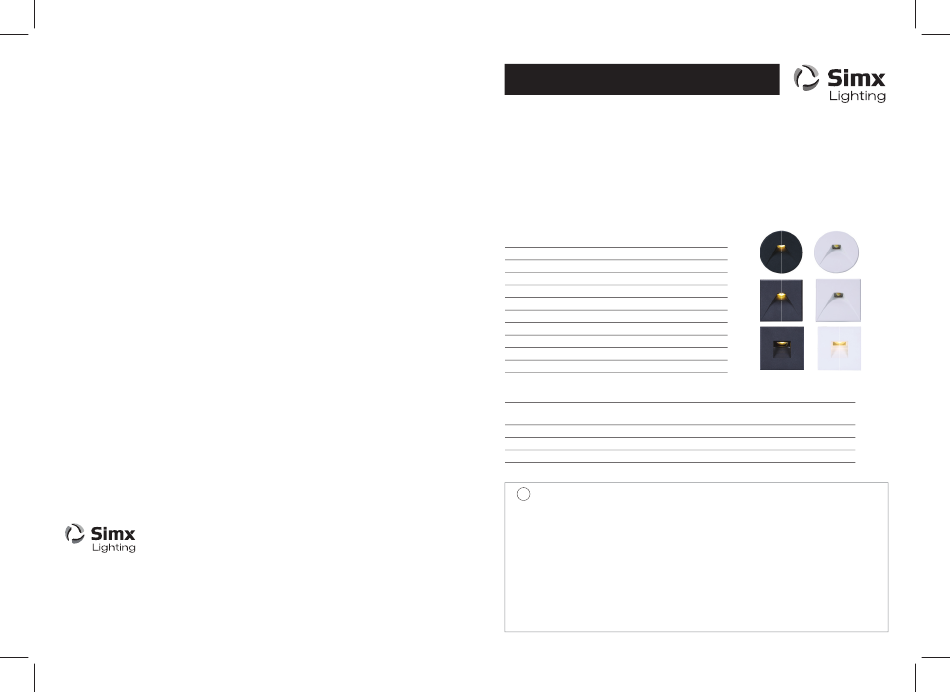

INSTALLATION INSTRUCTIONS
WAITOMO STEPLIGHT WAITOMO STEPLIGHT
3W LED - ROUND FAN 3W LED - SQUARE FAN
LHT1148 BLACK LHT1150 BLACK
LHT1149 WHITE LHT1151 WHITE
Thank you for purchasing the Simx Lighting Waitomo steplight. This product is suitable for sheltered
exterior locations. It requires a 230V AC power supply to operate and should be installed by a registered
electrician. Please read this manual before installation and retain for future reference.
TECHNICAL SPECIFICATIONS
Power Source 220-240V AC 50Hz
Wattage 3W
LED Colour Selectable 3000K, 4000K, 6000K
Lumens 120 lm (approx.)
Beam Spread 38° (approx.)
IP Rating IP44
Safety Class II
Mounting Wall
Construction Die-cast aluminium housing
Warranty 3 years
DIMENSIONS (mm)
Cut-out Size Cut-out Size
Model Solid Wall Hollow Wall
Round Fan 73 Ø 65 Ø
Square Fan 73 Ø 65 Ø
Square Tier 73 Ø 65 Ø
Specifications are subject to change without notice
!
IMPORTANT
This product is suitable for use only with a supply voltage of 220-240V AC.
All electrical work must be carried out in accordance with local and national electrical codes as
applicable. We strongly recommend that this light fitting is installed by a registered electrician.
Always switch power off prior to installation. A means of mains power isolation must be installed in
the circuit for the purpose of safe access for any internal cleaning, recalibration, or maintenance.
This light fitting is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety. Young children
should be supervised to ensure that they do not play with the appliance.
Any changes or modifications made or attempted to this product, without the prior written approval
of the manufacturer, will void any and all stated warranties.
WAITOMO STEPLIGHT
3W LED - SQUARE TIER
LHT1152 BLACK
LHT1153 WHITE
Cover Depth
79 x 79 54
85 x 85 57
85 x 85 57
