INSTALLATION INSTRUCTIONS
SENSOR LED
LHT1081 BLACK / LHT1082 WHITE

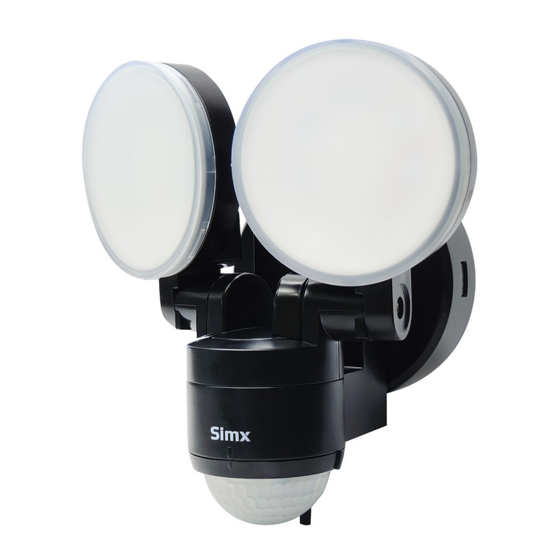

Twin 2x 4W LED Sensor Light
Thankyou for purchasing this Simx Lighting Sensor LED light fitting.
This product is suitable for both ceiling or wall installation and sheltered exterior locations.
It requires a 230V AC power supply to operate and should be installed by a registered electrician.
TECHNICAL SPECIFICATIONS
Power Source
Rated Load
Lumens (per lamp)
Colour Temperature
Light Beam Angle
Detection Range
Detection Angle
Time Setting
Min
Max
Dusk Control
PIR Aiming Adjustment
Working Temperature
Protection Rating
Safety
Construction
!
IMPORTANT
This product is suitable for use only with a supply voltage of 220-240V AC 50Hz.
All electrical work must be carried out in accordance with local and national electrical codes as applicable.
We strongly recommend that this light fitting is installed by a registered electrician.
Always switch power off prior to installation. A means of mains power isolation must be installed in the circuit
for the purpose of safe access for any internal cleaning, recalibration, or maintenance.
This light fitting is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Young children should be
supervised to ensure that they do not play with the appliance.
Any changes or modifications made or attempted to this product, or product installed contrary to these
installation instructions without the prior written approval of the manufacturer, will void any and all stated
warranties.
220-240V AC
9W max
275 lm
3000K Warm White
95° to half-peak intensity
8m ± 2 m
140° at 3 metres
90° at 8 metres
30 sec ± 10 sec
6 min ± 2 min
Day to night (adjustable)
Pan only, 90° left and right
-20°C - 40°C
IP55
Class II
UV-Stabilised Polycarbonate
2x
4x 32 mm
2x
6x 30 mm
1x
Advertisement
Table of Contents
Related Manuals for SImx LHT1081
Summary of Contents for SImx LHT1081

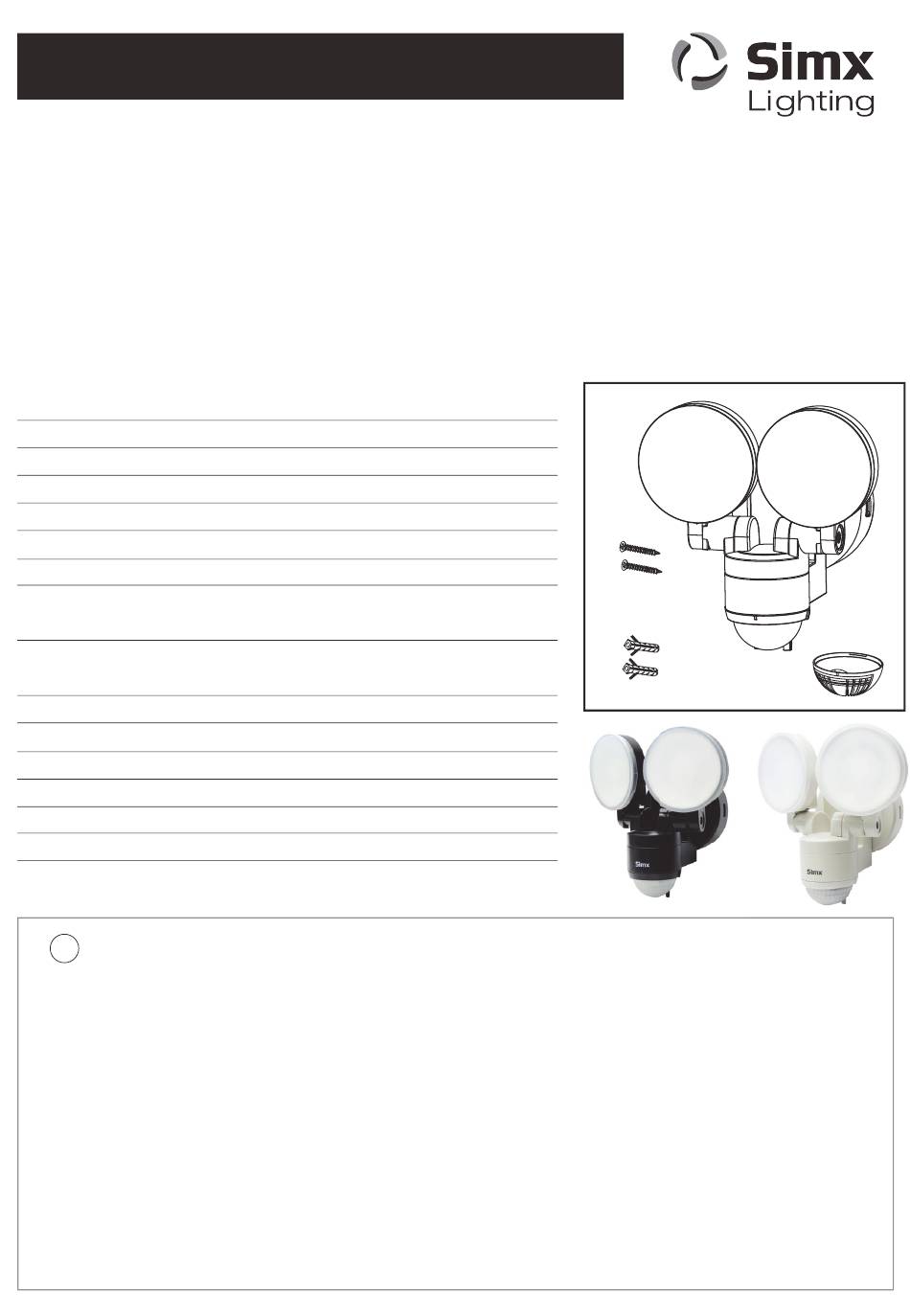

- Page 1 LHT1081 BLACK / LHT1082 WHITE Twin 2x 4W LED Sensor Light Thankyou for purchasing this Simx Lighting Sensor LED light fitting. This product is suitable for both ceiling or wall installation and sheltered exterior locations. It requires a 230V AC power supply to operate and should be installed by a registered electrician.
- Page 2 MOUNTING AND WIRING MOUNTING AND WIRING Eave mount Wall mount 50˚ 30˚ 30˚ (60˚ left & right- 2 spot pan together) “Click” 133mm “Click” 126mm 97mm Fig A Fig B Fig C • Switch off the power supply before commencing electrical work. •...
- Page 3 OPERATING ADJUSTMENT This light fitting only operates when the PIR sensor is activated by heat movement within its detection zone. Once power is connected, the unit requires approx. 60 seconds to warm up. Do not commence any walk tests until this has occurred. Minimum On Time Setting Maximum LUX Setting Fig D...
- Page 4 During this period if the product has a defect of this nature it will be repaired or replaced free of charge by SIMX with the same item, or a similar one of higher specification. ON CONDITION THAT: The buyer returns it to the seller from whom it was bought, freight paid.
