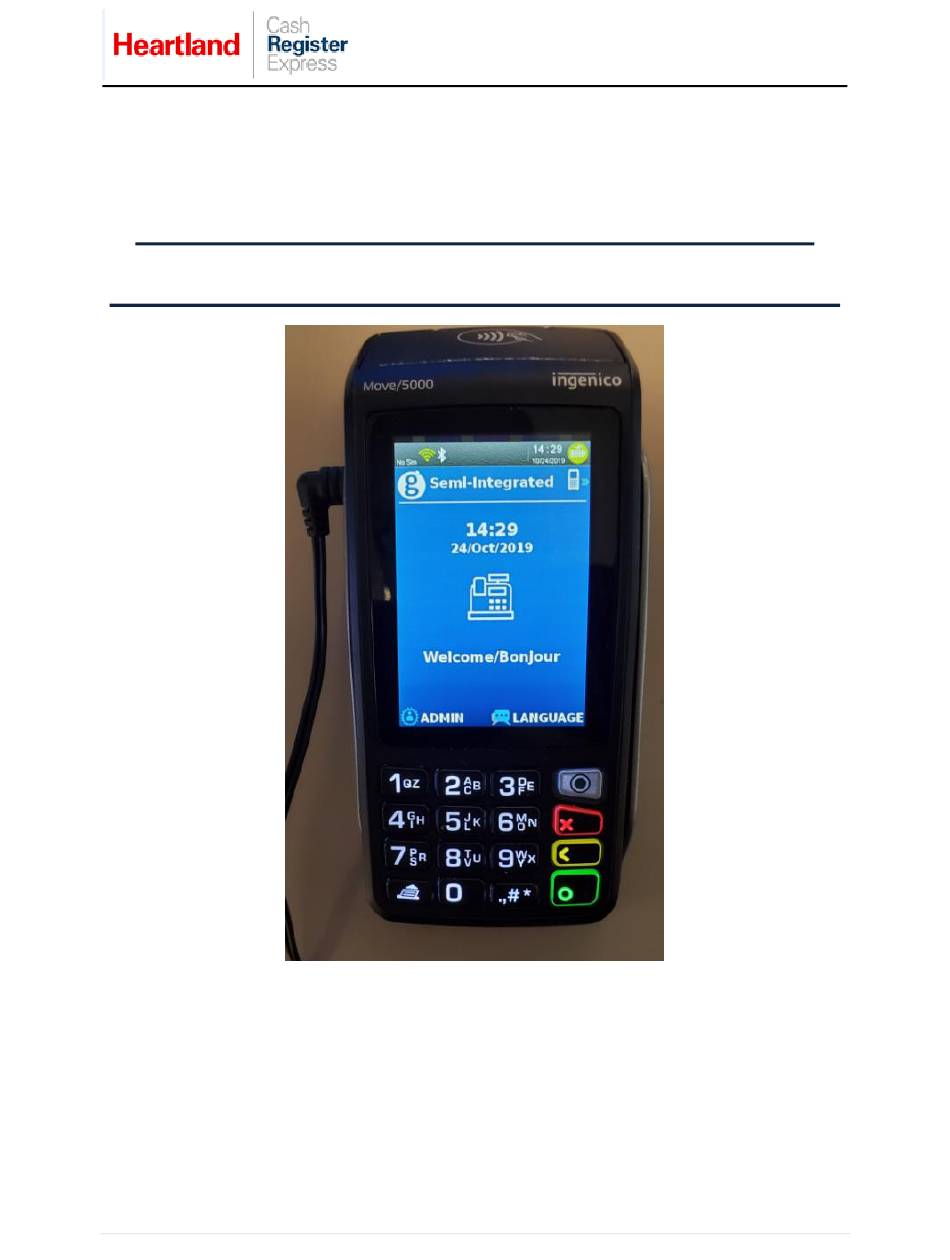

Ingenico Move/5000 EMV Certified
PINpad with Global Payments Canada
Cash Register Express now supports payment processing with EMV chip enabled cards through
the Ingenico Move/5000 EMV PINpad device. This document provides step-by-step instructions
on installation and usage of the Move/5000 with Cash Register Express.
Note: To use Global Payments EMV as a payment processor, you must be using version 12.8001
or above.
1 |
P a g e
