Front Panel Features - Extron electronics SW USB Pro Series Setup Manual

Connect the included power supply to the switcher power connector (see
5.
(Optional) Configure the switcher using PCS as necessary for functions such as autoswitching, front panel lock mode, and
6.
emulation (see the SW USB Pro Help File within PCS, available at www.extron.com).
Power on the host devices. The switcher is now ready for operation.
7.

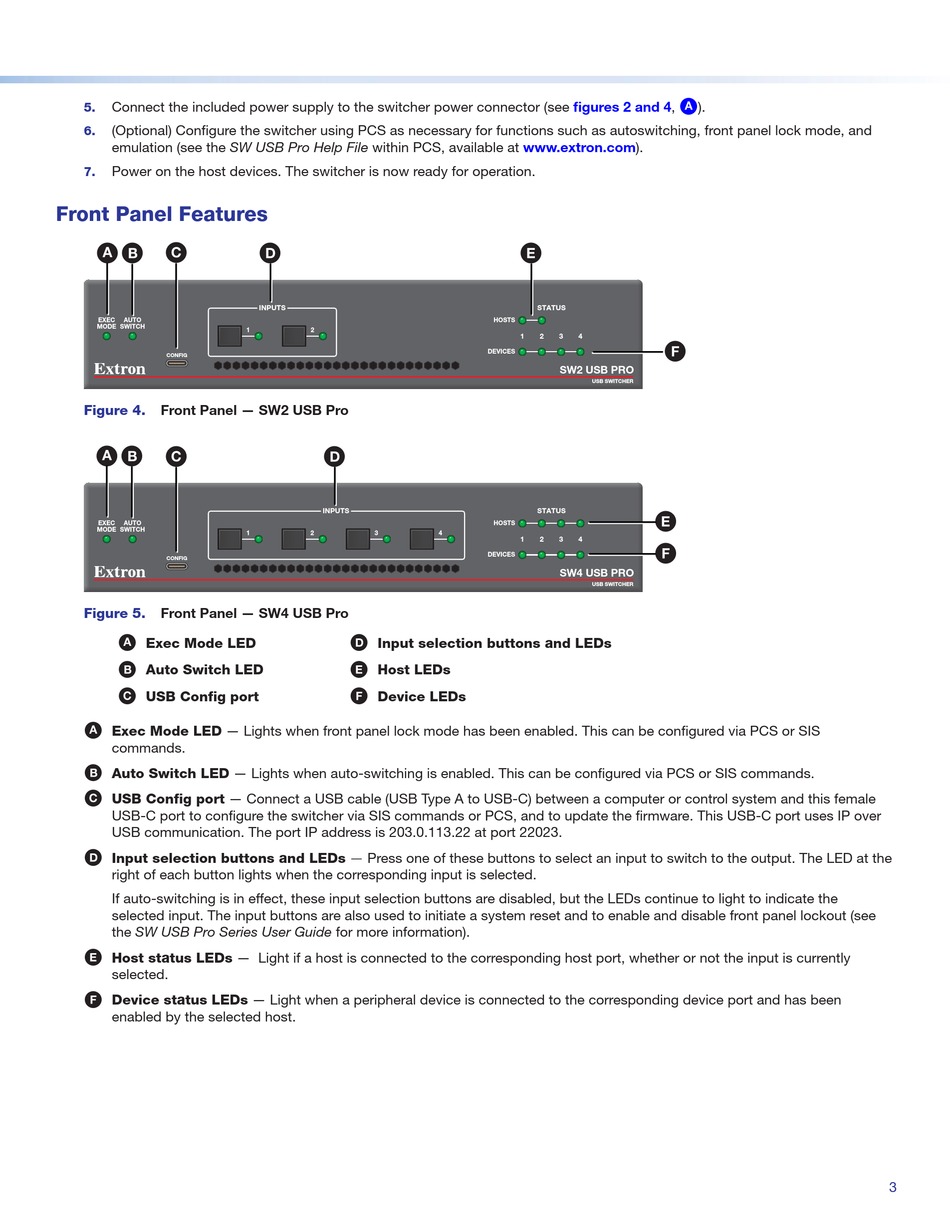

Front Panel Features

A A A B B B C C C
EXEC AUTO
MODE SWITCH
CONFIG
Figure 4. Front Panel — SW2 USB Pro
A A A B B B C C C
EXEC AUTO
MODE SWITCH
CONFIG
Front Panel — SW4 USB Pro
Figure 5.
A
Exec Mode LED
B Auto Switch LED
C
USB Config port
A Exec Mode LED — Lights when front panel lock mode has been enabled. This can be configured via PCS or SIS
commands.
B
Auto Switch LED — Lights when auto‑switching is enabled. This can be configured via PCS or SIS commands.
C USB Config port — Connect a USB cable (USB Type A to USB‑C) between a computer or control system and this female
USB‑C port to configure the switcher via SIS commands or PCS, and to update the firmware. This USB‑C port uses IP over
USB communication. The port IP address is 203.0.113.22 at port 22023.
D Input selection buttons and LEDs — Press one of these buttons to select an input to switch to the output. The LED at the
right of each button lights when the corresponding input is selected.
If auto‑switching is in effect, these input selection buttons are disabled, but the LEDs continue to light to indicate the
selected input. The input buttons are also used to initiate a system reset and to enable and disable front panel lockout (see
the SW USB Pro Series User Guide for more information).
E Host status LEDs — Light if a host is connected to the corresponding host port, whether or not the input is currently
selected.
F
Device status LEDs — Light when a peripheral device is connected to the corresponding device port and has been
enabled by the selected host.
D D D
INPUTS
1 2
D D D
INPUTS
1 2 3
D
Input selection buttons and LEDs
E Host LEDs
F
Device LEDs
figures 2 and
E E E
STATUS
HOSTS
1 2 3 4
DEVICES
SW2 USB PRO
USB SWITCHER
STATUS
HOSTS
4
1 2 3 4
DEVICES
SW4 USB PRO
USB SWITCHER
4, A ).
F F F
E E E
F F F
3
