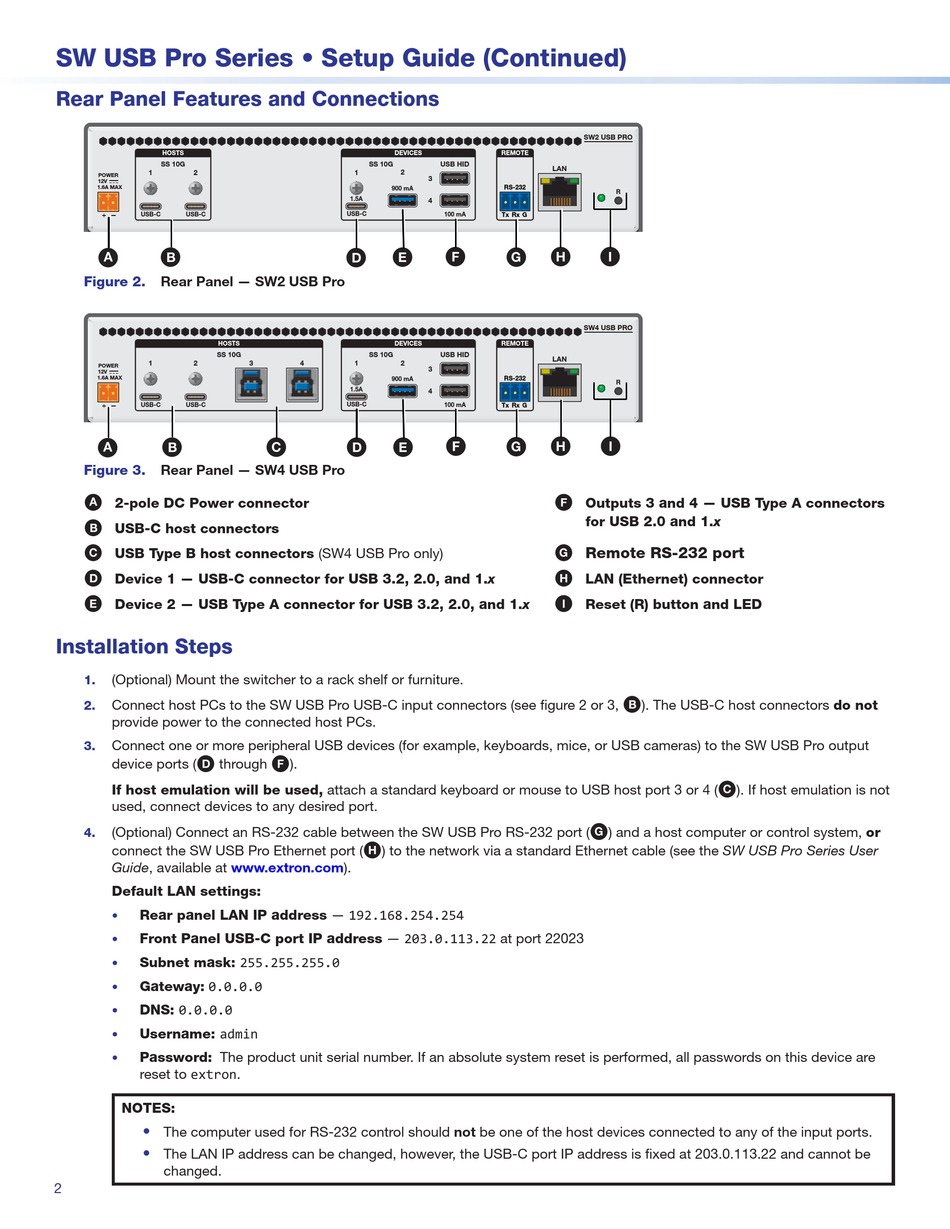

SW USB Pro Series • Setup Guide (Continued)

Rear Panel Features and Connections

HOSTS
SS 10G
1 2
POWER
12V
1.6A MAX
USB-C USB-C
B B B
A A A
Figure 2. Rear Panel — SW2 USB Pro
HOSTS
SS 10G
1 2
POWER
12V
1.6A MAX
USB-C USB-C
B B B
A A A
Figure 3. Rear Panel — SW4 USB Pro
A 2-pole DC Power connector
B
USB-C host connectors
C
USB Type B host connectors (SW4 USB Pro only)
D Device 1 — USB-C connector for USB 3.2, 2.0, and 1.x
E
Device 2 — USB Type A connector for USB 3.2, 2.0, and 1.x

Installation Steps

(Optional) Mount the switcher to a rack shelf or furniture.
1.
Connect host PCs to the SW USB Pro USB‑C input connectors (see figure 2 or 3,
2.
provide power to the connected host PCs.
Connect one or more peripheral USB devices (for example, keyboards, mice, or USB cameras) to the SW USB Pro output
3.
D
device ports ( through
If host emulation will be used, attach a standard keyboard or mouse to USB host port 3 or 4 (
used, connect devices to any desired port.
(Optional) Connect an RS‑232 cable between the SW USB Pro RS‑232 port (
4.
connect the SW USB Pro Ethernet port (
Guide, available at www.extron.com).
Default LAN settings:
Rear panel LAN IP address — 192.168.254.254
•
Front Panel USB-C port IP address — 203.0.113.22 at port 22023
•
Subnet mask: 255.255.255.0
•
Gateway: 0.0.0.0
•
DNS: 0.0.0.0
•
Username: admin
•
Password: The product unit serial number. If an absolute system reset is performed, all passwords on this device are
•
reset to extron.
NOTES:
•
The computer used for RS‑232 control should not be one of the host devices connected to any of the input ports.
•
The LAN IP address can be changed, however, the USB‑C port IP address is fixed at 203.0.113.22 and cannot be
changed.
2
DEVICES
SS 10G
1 2
3
900 mA
1.5A
4
USB-C
E E E
D D D
DEVICES
SS 10G
2
3 4 1
3
900 mA
1.5A
4
USB-C
C C C D D D E E E
F
).
H ) to the network via a standard Ethernet cable (see the SW USB Pro Series User
SW2 USB PRO
REMOTE
USB HID
LAN
RS-232
R
100 mA
Tx Rx G
F F F
G G G H H H I I I
SW4 USB PRO
REMOTE
USB HID
LAN
RS-232
R
100 mA Tx Rx G
F F F H H H I I I
G G G
F Outputs 3 and 4 — USB Type A connectors
for USB 2.0 and 1.x
Remote RS-232 port
G
H LAN (Ethernet) connector
I
Reset (R) button and LED
G
) and a host computer or control system, or
B ). The USB‑C host connectors do not
C ). If host emulation is not
