Center Control Surfaces

NOTE: Keep the X-PILOT switch off (manual mode) before you operate the steps below. See more
information in "X-PILOT switch" section.
With the transmitter turned on and the battery conected to the ESC(and installed in the battery
compartment), it is now possible to check the center of all control surfaces.

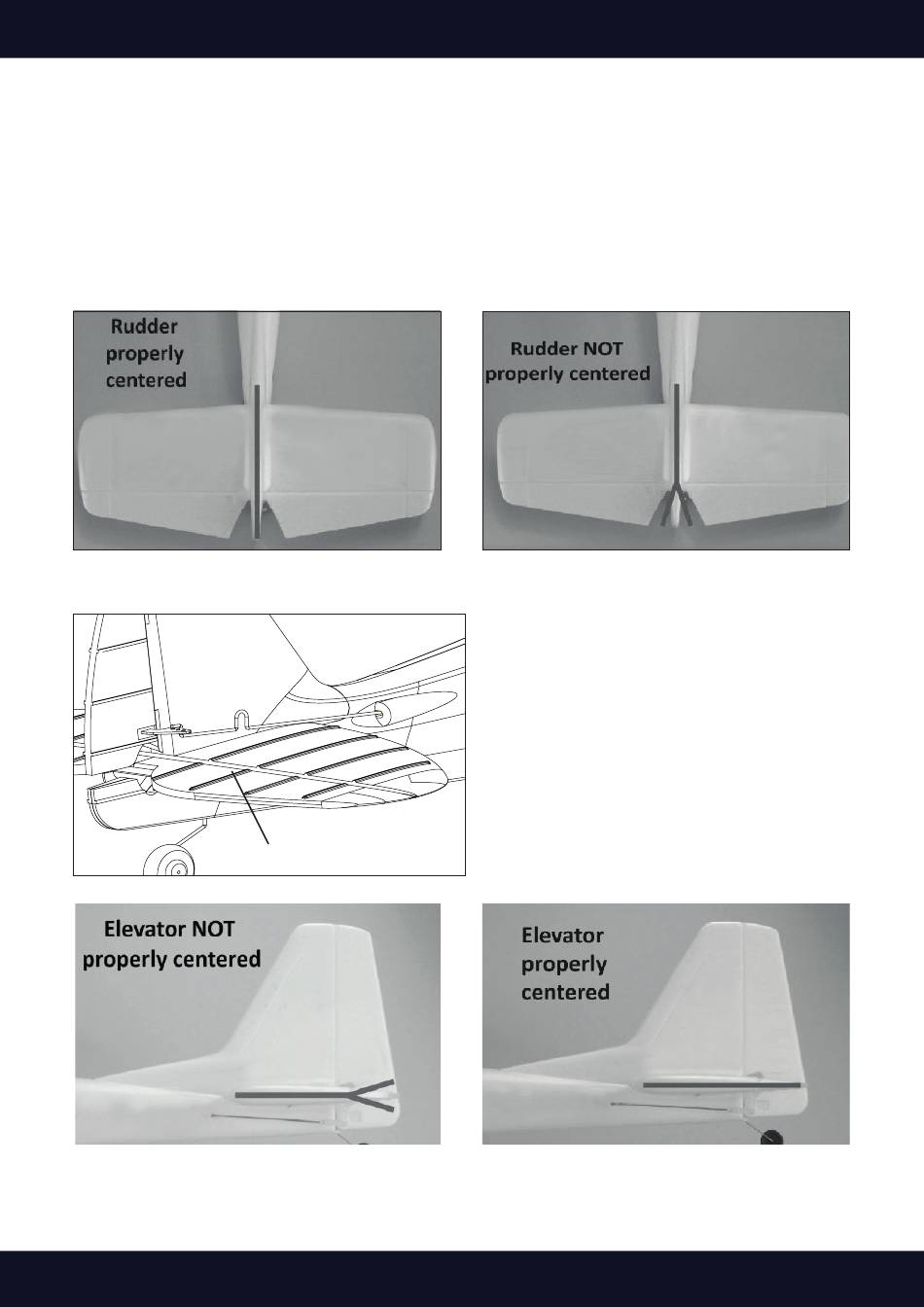

Observe the rudder to ensure it is properly centered as shown above.
Then observe the elevator to ensure it is properly centered as shown above.
6
Push Rod Arc-shaped Section
If the rudder is angled off to the right or left, adjust
the push rod by its arc-shaped section slightly,
making sure the rudder is properly centered.
