Propeller Replacement

Motor
Shaft
Base

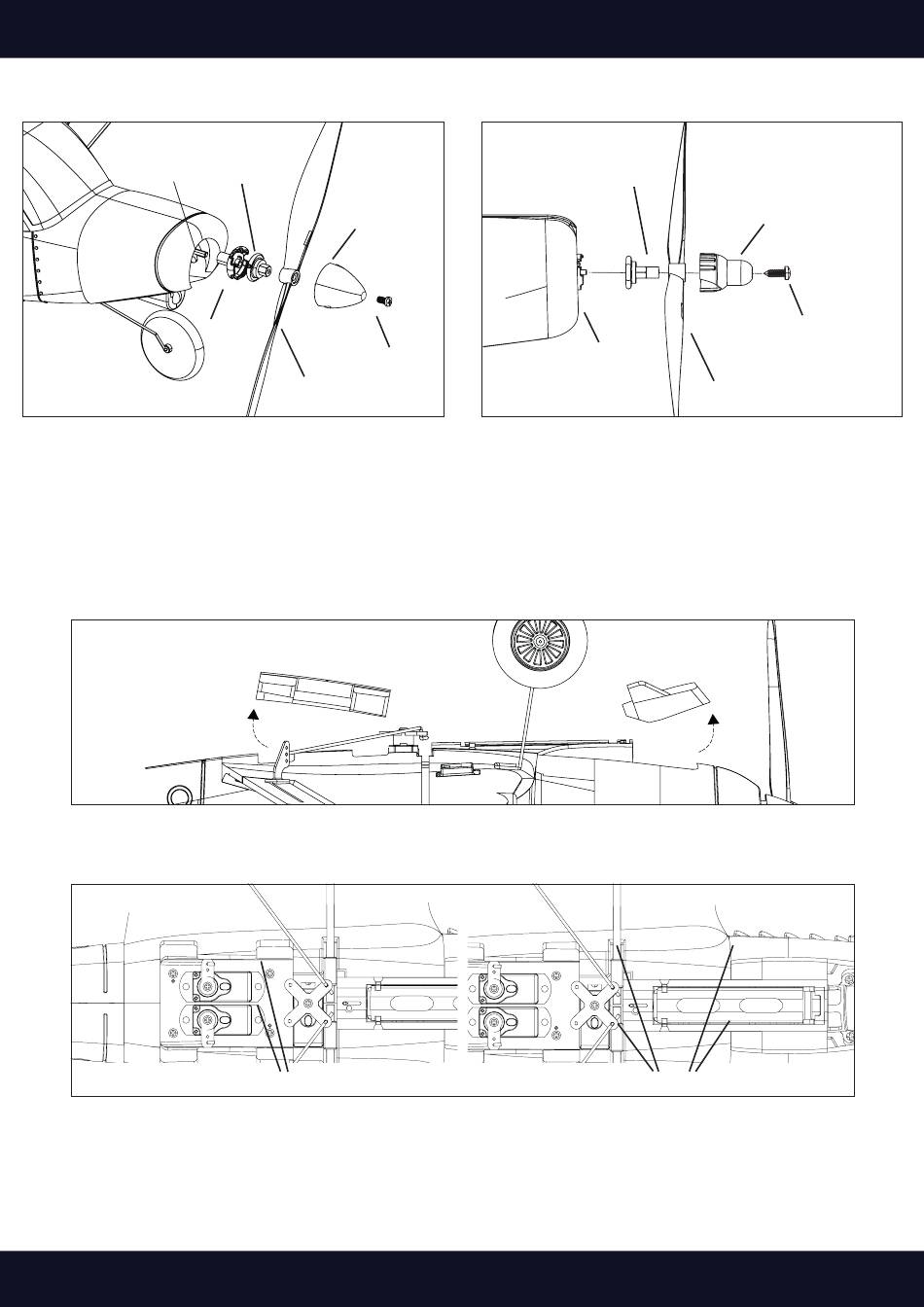

Follow below steps to replace broken propeller and shaft adaptor. You will need help of a Philips screw
driver and pliers(not included).
1. Take off the spinner and propeller by loosen the screw with a Philips screw driver.
2. Take off the shaft adaptor carefully. If it is too tight, use pliers to help.
3. Replace any part broken.
4. Install all parts back by inverted orders to finish the replacement.

Propeller System Replacement

1. Take off the cover in the head of fuselage to replace the motor, or the cover in the middle of fuselage to
replace the receiver. It is no need of tool to take off the covers.
2. Follow below steps to replace the receiver.
a. Loosen the screws of servo horns, take the servo horns off.
b. Unplug the motor cable and the mainwing servo cable. You may need to record the direction of cable
plugs.
c. Loosen the screws as shown to take off the the receiver.
