EasyRobotics PROFEEDER X User Manual page 26

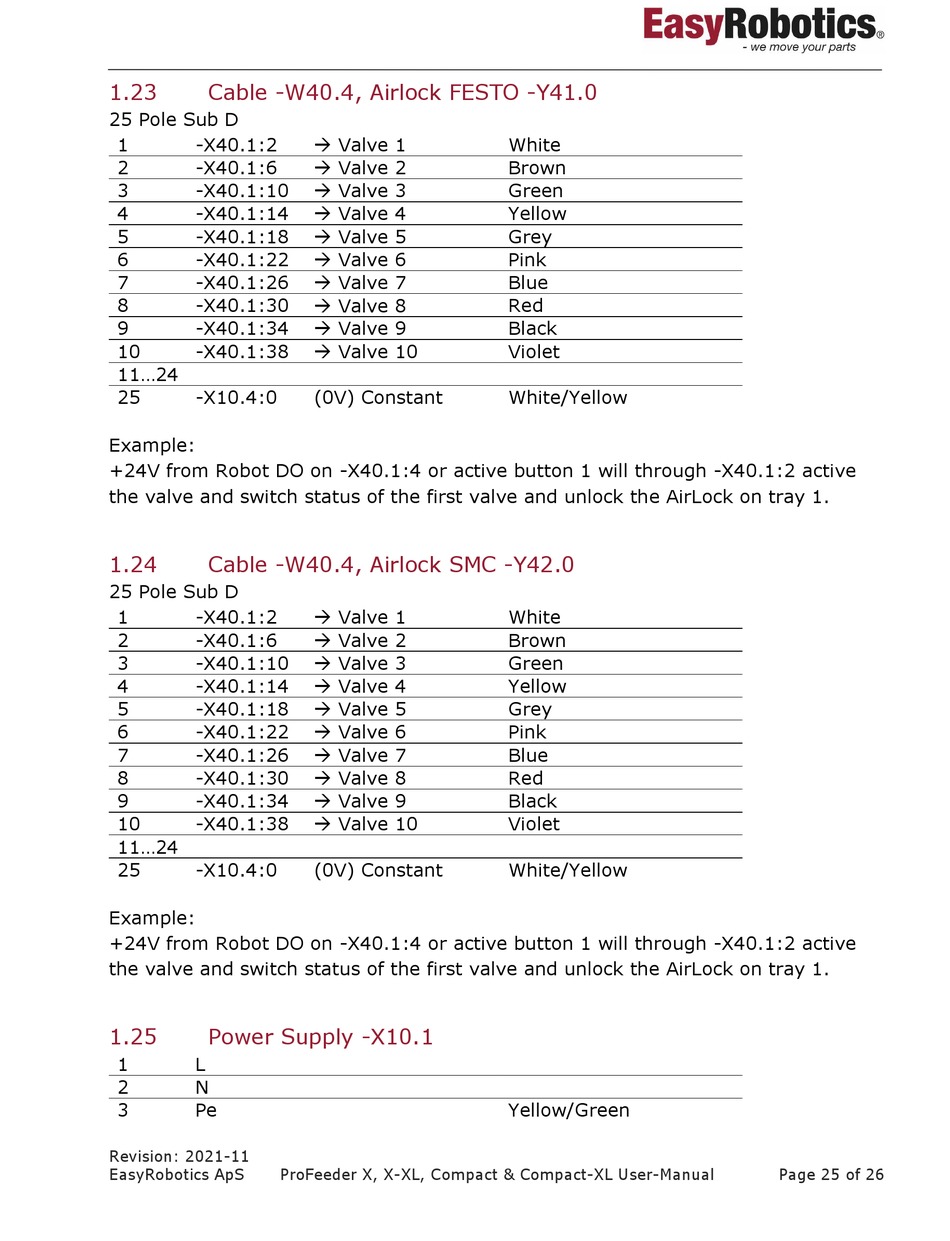

1.23 Cable -W40.4, Airlock FESTO -Y41.0
25 Pole Sub D
1 -X40.1:2
2 -X40.1:6
3 -X40.1:10
4 -X40.1:14
5 -X40.1:18
6 -X40.1:22
7 -X40.1:26
8 -X40.1:30
9 -X40.1:34
10 -X40.1:38
11...24
25 -X10.4:0
Example:
+24V from Robot DO on -X40.1:4 or active button 1 will through -X40.1:2 active
the valve and switch status of the first valve and unlock the AirLock on tray 1.
1.24 Cable -W40.4, Airlock SMC -Y42.0
25 Pole Sub D
1 -X40.1:2
2 -X40.1:6
3 -X40.1:10
4 -X40.1:14
5 -X40.1:18
6 -X40.1:22
7 -X40.1:26
8 -X40.1:30
9 -X40.1:34
10 -X40.1:38
11...24
25 -X10.4:0
Example:
+24V from Robot DO on -X40.1:4 or active button 1 will through -X40.1:2 active
the valve and switch status of the first valve and unlock the AirLock on tray 1.
1.25 Power Supply -X10.1
1 L
2 N
3 Pe
Revision: 2021-11
EasyRobotics ApS ProFeeder X, X-XL, Compact & Compact-XL User-Manual
 Valve 1
 Valve 2
 Valve 3
 Valve 4
 Valve 5
 Valve 6
 Valve 7
 Valve 8
 Valve 9
 Valve 10
(0V) Constant
 Valve 1
 Valve 2
 Valve 3
 Valve 4
 Valve 5
 Valve 6
 Valve 7
 Valve 8
 Valve 9
 Valve 10
(0V) Constant
White
Brown
Green
Yellow
Grey
Pink
Blue
Red
Black
Violet
White/Yellow
White
Brown
Green
Yellow
Grey
Pink
Blue
Red
Black
Violet
White/Yellow
Yellow/Green
Page 25 of 26
