- Page 1 TechScan™ v.1.1 Owner’s Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ………………………………………………………………..…….…….…2 ………………………………………………………..……..3 SWITCH KEY FUNCTIONS OPERATION……………………………………………………………………………...…….4 TIPS FOR USING TECHSCAN TO MEASURE WOOD………………………….….…….5 TIPS FOR USING TECHSCAN TO MEASURE RELATIVE MOISTURE…….…….…..6 CARING FOR YOUR METER…………………………………………………….……….….8 SERVICING YOUR METER ……………………………………………………….…….…..8 WARRANTY…………………………………………………………………..…….…………..8 ADDENDUM …………………………………………………………………………………..10 GlobalTestSupply www. .com Find Quality Products Online at:... -
Page 3: Introduction

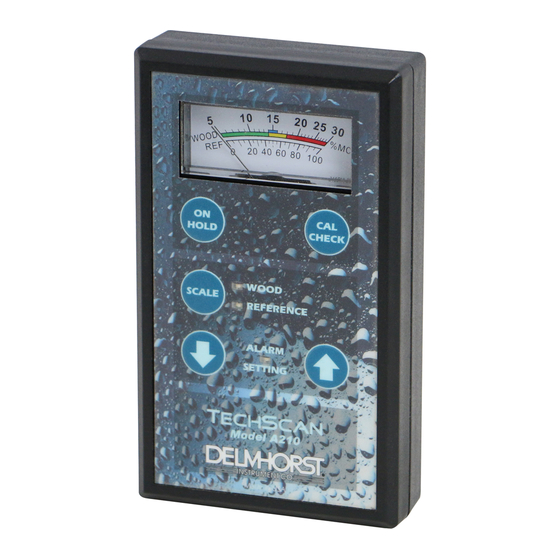

VERSION 1.1 OWNER’S MANUAL INTRODUCTION Thank you for purchasing TechScan, a multi-purpose meter that can be used in many applications including water damage restoration, home inspection, indoor air quality, woodworking, flooring installation. TechScan provides a fast, effective way to identify moisture problems and determine if further action must be taken. -
Page 4: Switch Key Functions
reference points against which subsequent readings are compared. One should not expect that the reference scales for meters of different brands and types (resistance /capacitance) will read alike on the same material. The benchmark may be different from one meter type/brand to another because a given meters’ response depends on the material used for calibration and on the meter’s range. -
Page 5: Operation
4. Down Arrow Key: Press and hold to decrease the alarm setting. 5. Up Arrow Key: Press and hold to increase the alarm setting. OPERATION Checking the Battery and Calibration The meter automatically checks the battery level when it is turned on. If the battery voltage is not high enough for reliable operation, all indicators will flash for a few seconds. -
Page 6: Tips For Using Techscan To Measure Wood
The entire sensor plate should be in contact with the surface of the board. The sensor plate measures 2-1/2” x 3-1/2”. Readings obtained with TechScan and pin-less moisture meters in general, are affected by the amount of pressure applied to the material. Apply and maintain uniform, firm pressure to the meter when taking readings. -
Page 7: Tips For Using Techscan To Measure Relative Moisture
(specifically the wood) being measured. Materials with higher specific gravity produce higher moisture readings than materials with lower specific gravity at the same moisture content. Since TechScan is calibrated for wood at a specific gravity (SG) of 0.46, a correction is required when measuring wood species with SG values other than 0.46. - Page 8 Using TechScan In A Water Damage Restoration Or Mold Remediation Job: TechScan is a useful tool in identifying moisture in walls, ceilings and floors in a water restoration or mold remediation. In order to establish pre-loss conditions, find an area of the building that was not damaged and take several readings on various materials.
-
Page 9: Caring For Your Meter
If within the warranty period of the TechScan you find any defect in material or workmanship return the meter following the instructions in the Service for Your Meter section. - Page 10 PURCHASE OF THIS PRODUCT. The express warranty set forth above constitutes the entire warranty with respect to Delmhorst meters and no other warranty, written, oral, or implied applies. This warranty is personal to the customer purchasing the product and is not transferable.
-
Page 11: Addendum
TECHSCAN ADDENDUM 1. Specific Gravity Correction Table - TechScan Meter Readings vs MC - April 2013 2. TechScan Species/Botanical/SG List – April 2013 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... - Page 12 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 13 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 14 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 15 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
