    Delmhorst Instrument Co. Model G-7 v.2.0 Owner’s Manual For instruments beginning with SN 13481) TABLE OF CONTENTS 2 INTRODUCTION 3 G-7 FEATURES SECTION A – METER OPERATION KEY SWITCH FUNCTIONS 4 SET UP MENU 4 ACCESS THE SET UP MENU...

  • Page 2: Introduction

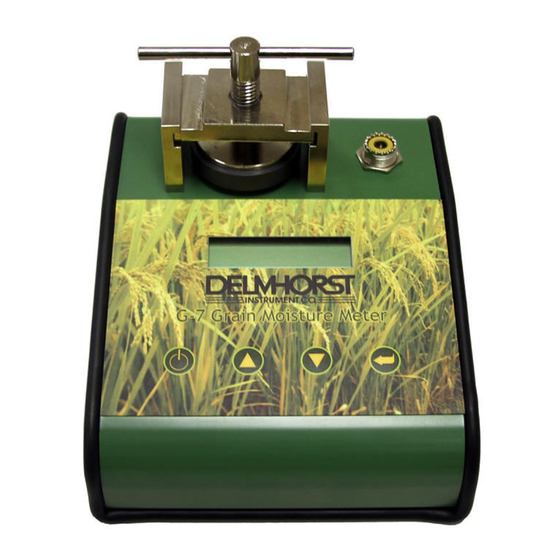

    INTRODUCTION Thank you for purchasing the G-7 Grain Moisture Meter. The G-7 is a full-featured meter that incorporates a double disc, pressure type electrode. The lower disc forms the base of a shallow cup in which the grain sample is placed.

  • Page 3: G-7 Features

    + 0.5% in the range 9 to 17 and + 1.0% in the range 17 to 23. The operating instructions for the G-7 are divided into three sections. Section A (Meter Operation) is a step-by-step guide to the different features and basic use of your moisture meter.

  • Page 4: Section A - Meter Operation

    #1 – ON/OFF Turns the meter on and off. The G-7 has an automatic shut off feature, which turns the meter off after 4 minutes of either LOW readings only or no key activity. The 4-minute timer is user-adjustable. #2 – ENTER The ENTER key accepts a selection you make for the various functions made available through the menus.

  • Page 5: Temperature Mode

    TEMP. MODE – The G-7 defaults to a temperature of 80°F. As grain temperature increases, indicated moisture content rises. Lower grain temperatures result in lower indicated moisture content. The temperature modes are: AUTOMATIC: A built-in temperature sensor measures the temperature of the grain sample.

  • Page 6: Set Off Timer

    Before changing the offset, we recommend that you determine the average of at least three tests with the G-7 on the sample that was tested with the elevator meter. If you accept the elevator moisture meter as a standard, then adjust the %MC offset to match the elevator.

  • Page 7: Check Meter Calibration

    c) Temp. Scale = Fahrenheit d) Alarm Set Point = 15.0% e) All Offsets = 0 f) Menu Timer = 4 secs. g) Off Timer = 4 minutes  Press the UP key until the display reads Reset meter?  Press ENTER to reset meter. The display will read “Memory storage is cleared. Meter is reset.”...

  • Page 8: Select The Grain

    STORAGE MENU The storage menu of the G-7 allows you to view any stored readings and display various statistics about those readings. It also allows you to clear the memory. TO ACCESS THE STORAGE MENU: ...

  • Page 9: View Statistics

     To scroll backward to a previously stored reading, press the DOWN key VIEW STATISTICS  Press the UP key until the display reads “Statistics?  If you have stored readings in more than one batch, the meter will display the current grain. To view statistics of another grain with stored readings, press the UP key until the desired batch is displayed.

  • Page 10: Section B - Taking A Reading

     Press the UP key until the display reads: Clear Memory?  Press the ENTER key. The display will read “Memory storage is cleared.” SECTION B – TAKING A READING TESTING GRAINS  Fill the sample cup with a single layer if grain or seed and place it on the pressure plate. ...

  • Page 11: Testing Hay

    cable to the external connector on top of the moisture meter.  Set the meter to HAY.  Push the #832 prod into the seed and Press down on the electrode until the head of the screw which holds the pressure button, touches the palm of your hand. ...

  • Page 12: Section C: Factors Affecting Your Readings

    SAMPLE SIZE  The G-7 tests a small sample and therefore its reading is directly related to the moisture content of the grain from where the sample was selected.  If the initial two or three tests indicate uniform moisture content, there is no need to make additional tests on other samples.

  • Page 13: Care Of Your Meter

    a moisture content too high for safe storage.  It is more important to know the range and distribution of moisture in stored grain than it is to know the average moisture content, since an average may not reveal the presence of high moisture pockets.

  • Page 14: Warranty

    90 days. If, within the warranty period of the G-7, you find any defect in material or workmanship return the meter following the instructions in the “Service for Your Meter”...
  • Page 15 510INS-0017 REV-1 10/2012 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com...
