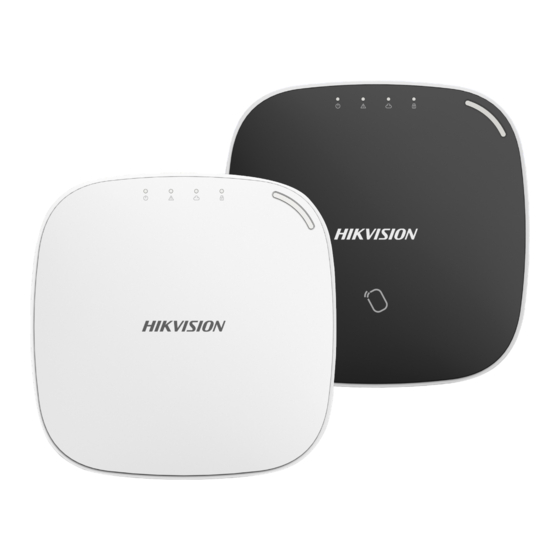

HIKVISION AX Series Manual

Wireless alarm hub
Hide thumbs Also See for AX Series:

Advertisement

Quick Links

Download this manual
R
INTRUSION WITH VISION
AX-SERIES
WIRELESS ALARM HUB
433MH
Z
www.hikvision.com
433MHZ - 8 Page AXHub Wireless brochure-6.indd 1
20/09/2018 11:12

Advertisement

loading
Need help?

Need help?

Do you have a question about the AX Series and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION AX Series

Summary of Contents for HIKVISION AX Series

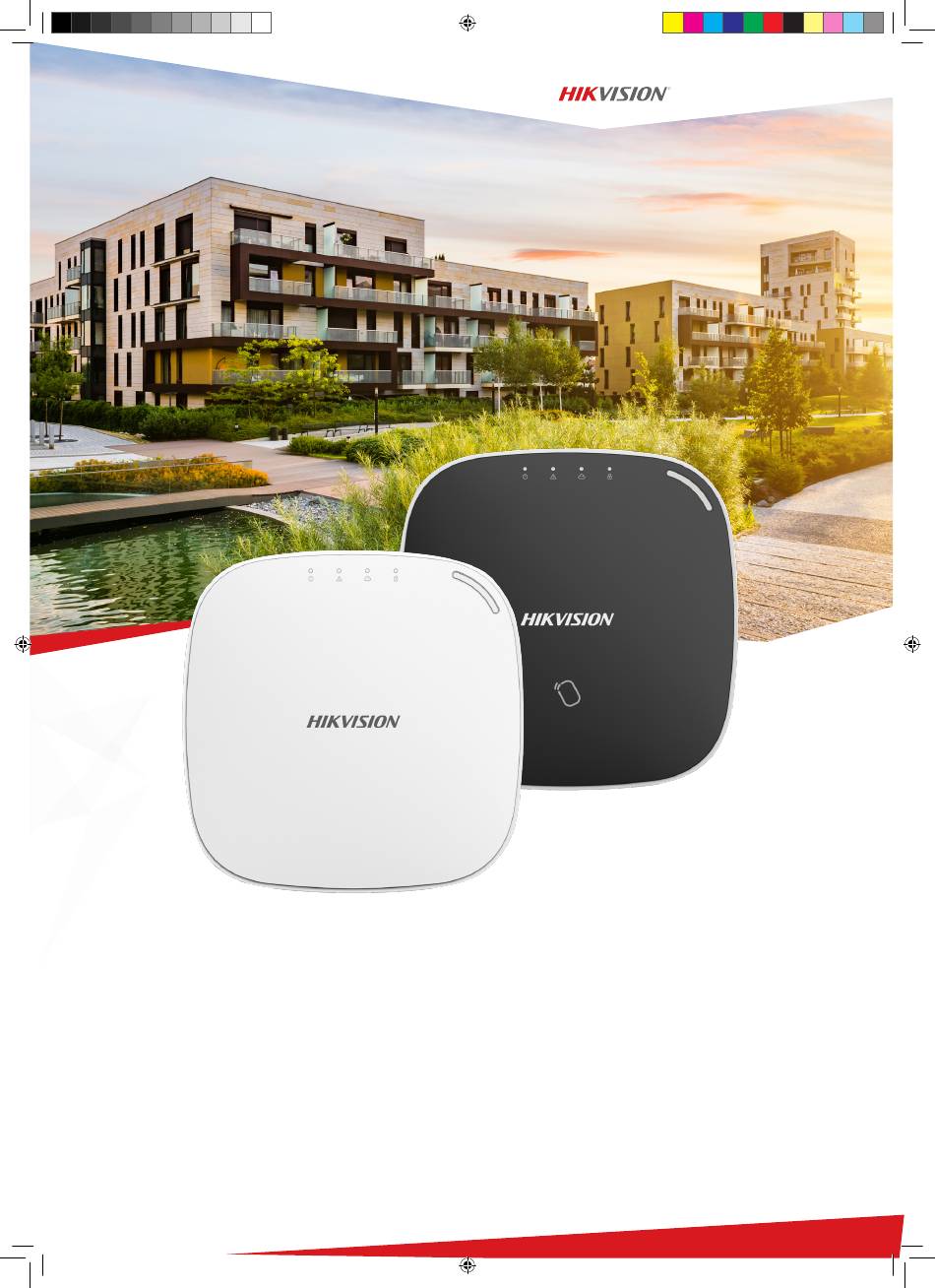

  • Page 1 INTRUSION WITH VISION AX-SERIES WIRELESS ALARM HUB 433MH www.hikvision.com 433MHZ - 8 Page AXHub Wireless brochure-6.indd 1 20/09/2018 11:12...
  • Page 2 STYLISH DESIGN WITH COMPREHENSIVE CONNECTIVITY The AXHub is the latest innovation in intruder alarm systems. Part of the Hikvision AX Series and catering for residential and small commercial applications, the AXHub connects security peripherals such as motion detectors and displacement sensors, alongside safety devices like smoke and gas sensors to keep people safe.
  • Page 3 5 seconds pre-alarm and 2 seconds post-alarm. As a result, Hikvision cameras and the AXHub alarm systems work seamlessly together to provide a recorded video clip or live HD video footage, directly through Hik-Connect, iVMS or instantly to monitoring stations. This allows active decisions to be made faster and more reliably in the event of an activation.
  • Page 4 TOTAL SOLUTION RESIDENTIAL SMALL COMMERCIAL 433MHZ - 8 Page AXHub Wireless brochure-6.indd 4 20/09/2018 11:13...

  • Page 5: System Topology

    SYSTEM TOPOLOGY Camera Cloud iVMS Hik-Connect Wireless Outdoor Dual Technology Detector (Low Mount) Wireless Water Leak Detector AXHub Wireless Outdoor Dual Technology Wireless Temperature Detector (High Mount) Detector Wireless Displacement Sensor Wireless 12m Dual Technology Wireless 25m Long Range PIR Wireless Magnetic Contact Detector Detector...
  • Page 6 ACCESSORIES DS-19K00-Y DS-PD2-P10P-W DS-PD2-P25-W DS-PD2-P15C-W Keyfob Wireless 10m Pet Immune PIR Detector Wireless 25m Long Range PIR Detector Wireless 15m Curtain PIR Detector DS-PD2-T10P-WEH DS-PD2-T12P-WEL DS-PD2-D12-W DS-PD2-D10P-W Wireless Outdoor Dual Technology Detector Wireless Outdoor Dual Technology Detector Wireless 12m Dual Technology Detector Wireless 10m Pet Immune Dual PIR Detector (High Mount) (Low Mount)
  • Page 7 5: 1 Orange (Fault), 2 Green (Power, Cloud connect), 1 Red (Alarm), 1 Blue (Arming) Description Tamper Protection Front and rear tamper protection The AX series wireless security hub supports 32 Control via Smart device Hik-Connect (available on both iOS and Android) wireless inputs. It can communicate alarm and...
  • Page 8 1 of 5 Preparation Android:V3.6.1 180928 or above Hik-Connect Client:IOS:V3.6.0 180922 / 2. AX Series Wireless Security Control Panel,V1.0.0 or above How to Add Wireless Control Panel to Hik-Connect Hik-Connect 1. Add the device to 1) Power on the control panel 2) Scan QR Code to enter the Scan QR code page.
  • Page 9 4) Tap Wireless Connect on the Adding Type page. 5) Follow the instructions and change the control panel to the AP mode. Tap Next. © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: •...
  • Page 10 7) Follow the instructions on the Hik-connect and connect the mobile phone with the control panel via wireless connection. © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: •...
  • Page 11 8) Create a device password for device activation, and enter activate. 9) Follow the instructions and change the control panel to the Station mode. Tap Next. © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: •...
  • Page 12 10) When the control panel is adding completed, tap Finish. First Choice for Security Professionals HIKVISION Technical Support © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: •...
  • Page 13 1 of 6 Preparation Android:V3.6.1 180928 or above Hik-Connect Client:IOS:V3.6.0 180922 / 2. AX Series Wireless Security Control Panel,V1.0.0 or above How to Add Peripheral (Detector/Card/Keyfob) to the Control Panel by Hik- Connect 1. Add Peripheral to the Control Panel You should add peripheral to the control panel before performing other operations such as arming or disarming.
  • Page 14 1) Select a control panel on the Hik-Connect page to enter the control panel management page. © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: •...

  • Page 15: Add Keyfob

    Make sure the keyfob's frequency is the same as the control panel's 1) Tap to enter the Scan QR Code page. © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: •...
  • Page 16 Step:Hold down Away arm button, at the same time insert battery, until the red light flashes three times, reset success. © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: •...
  • Page 17 Control Panel by Hik-Connect Product: AX Series Wireless Security Control Panel Page: 5 of 6 © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: • www.hikvision.com...
  • Page 18 AX Series Wireless Security Control Panel Page: 1 of 3 Preparation 1. AX Series Wireless Security Control Panel,V1.0.0 or above 2. Internet Explorer or 4200（2.7.3.8） 3. One SIM card and one Mobile Phone How to configure Alarm Notifications to Mobile Phone (SMS or Phone call) When an alarm is triggered, if you want the send the alarm notification to mobile phone（SMS or Phone call）, you can set the notification push parameters.
  • Page 19 3) Set Mobile Phone Index, SIM Card No. And enable Notification Type (SMS or Phone call). 3. Result Show SMS: © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: •...
  • Page 20 AX Series Wireless Security Control Panel Page: 1 of 5 Preparation 1. AX Series Wireless Security Control Panel,V1.0.0 or above 2. Internet Explorer or 4200（2.7.3.8） How to configure Video Management You can add two network cameras to the wireless security control panel, and link the camera with the selected zone for video monitoring.
  • Page 21 Page: 1 of 5 Preparation 1. AX Series Wireless Security Control Panel,V1.0.0 or above 2. Internet Explorer or 4200（2.7.3.8） How to configure Event Video Transfer via Email Settings You can add two network cameras to the wireless security control panel, and link the camera with the selected zone for video monitoring.
  • Page 22 2. Results Show Email: The alarm video playback will be sent to the email as an attachment. © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: •...
  • Page 23 Log in the website (https://accounts.google.com/b/0/displayunlockcaptcha), and click Continue. Yahoo Yahoo mail also have corresponding security Settings 1) Log in Email accounts © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: •...
  • Page 24 AX Series Wireless Security Control Panel Page: 4 of 5 2) Click less secure sign-in，the email can send successfully. © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: •...
  • Page 25 2) Select a zone needs video monitoring, and click the Setting. 3) Select the Linked Camera No. 4) Click OK. © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: •...
  • Page 26 1) When the Zone is triggered，notification will show like this, and click the notification 2) Enter the Playback. © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: •...
  • Page 27 3) You can see then video playback when Zone alarm.If you want storage the video,click recording. 4) You can see the recorded video in Pictures and Videos. © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: •...
  • Page 28 If you need this feature, refer to document: How to configure Event Video Transfer via Email Settings. First Choice for Security Professionals HIKVISION Technical Support © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: •...
  • Page 29 Date: 10/11/2018 Product: AX Series Wireless Security Control Panel Page: 1 of 8 Preparation 1. AX Series Wireless Security Control Panel,V1.0.0 or above 2. Internet Explorer or 4200（2.7.3.8） )： 3. Platform simulation software: Living Pattern CMS trial version ftp://hikftp.hikvision.com:400/Product%20File(Overseas)/20%20Alarm/Hikvision/11%20Installation&Ho w%20to/Tool/...
  • Page 30 The device will push notifications when any status in the system is changed. Operation Event Notification The device will push notifications when the user operate the device. © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: •...

  • Page 31: Configure Interface

    Platform heartbeat, default time is 10 min, detect devices by sending package, in 10 min no reply will judge as offline © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: •...
  • Page 32 Monitor interface You can see Message Notification form Device to Alarm Center. © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: • www.hikvision.com...

  • Page 33: For Example

    CID code doesn’t have correspond description of the event, it won’t display in the Monitor interface. © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: •...

  • Page 34: Debugging Interface

    The interface is showed actual message notification from device, if you see noting in Monitor interface, you can use this interface to check if the platform receives data from device. © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: •...
  • Page 35 4. Result Show You can see Message Notification form Device to Alarm Center when you operate. © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: •...
