Title:
DS-PWA32 How to Add Wireless output Expander and
Configure
Product:
AX Series Wireless Security Control Panel
Preparation
1. AX Series Wireless Security Control Panel,V1.0.2 or above
2. Wireless output Expander DS-PM-WO2 or DS-PM-WO8
DS-PWA32 How to Add Wireless output Expander and Configure
1. Add by Panel function button.
1) Click the function button of the Hub, enter Adding Detector Mode.

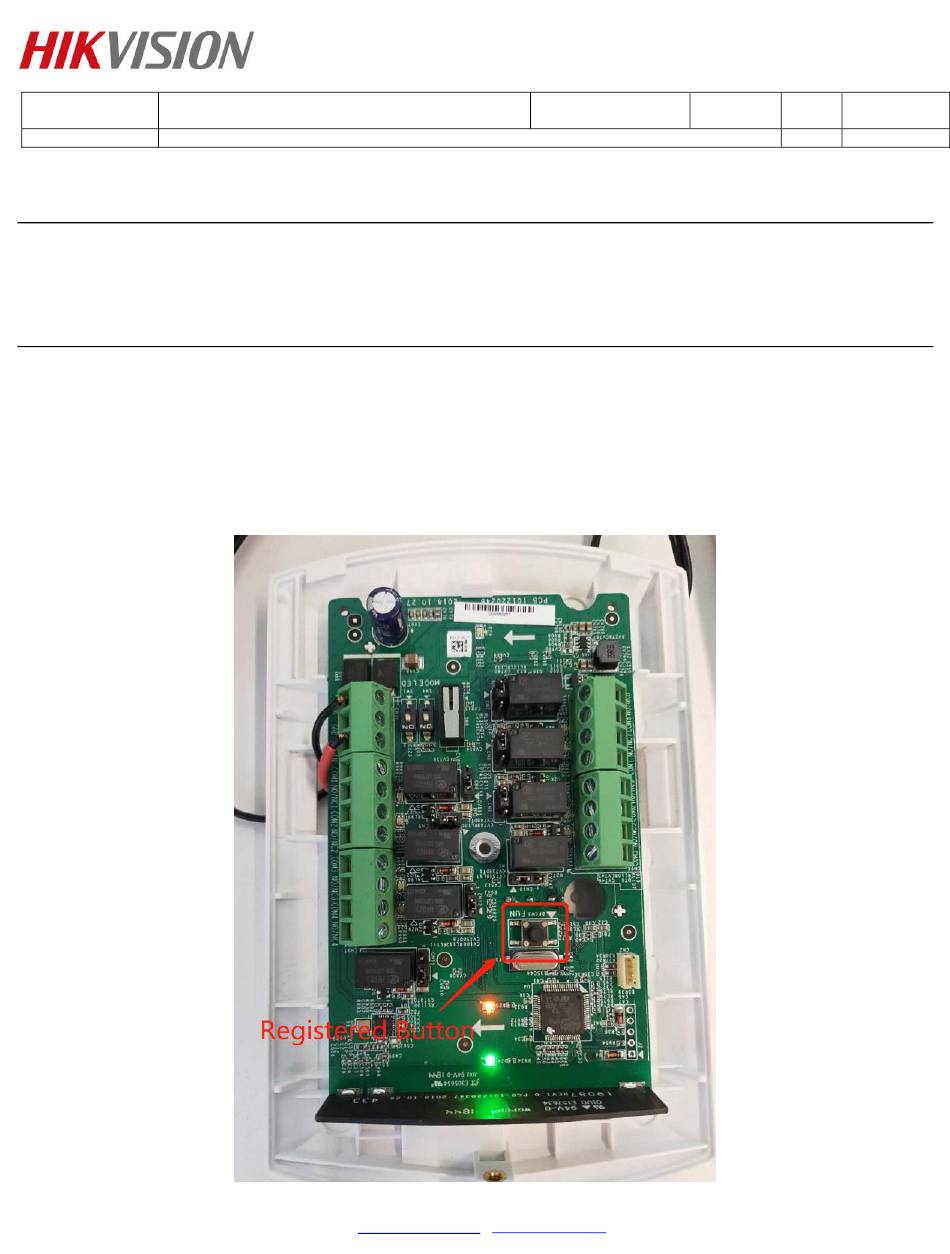

2) Press the registration key once and add the expander according to the voice
prompt.
No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788
© Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved.
E-Mail:
support@hikvision.com
Version:
•
www.hikvision.com
v1.0
Date:
05/05/2019
Page:
1 of 5
