- Page 1 Intelligent Temperature Measuring Socket F-TS100 User Manual V1.0.0 This manual is applicable to the following products: F-TS100 Xiamen Four-Faith Communication Technology Co., Ltd. https://www.fourfaith.com...
- Page 2 F-TS100 User Manual Document Revision History Date Version Note Author 2021.7.8 V1.0.0 Initial Version...
- Page 3 All contents in the files are protected by copyright law, and all copyrights are reserved by Xiamen Four-Faith Communication Technology Co., Ltd. Without written permission, all commercial use of the files from Four-Faith are forbidden, such as copy, distribute, reproduce the files, etc., but non-commercial purpose, downloaded or printed by individual (all files shall be not revised, and the copyright and other proprietorship notice shall be reserved) are welcome.
- Page 4 F-TS100 User Manual Contents Chapter 1 Product Introduction ..............1 1.1 Product Description ......................1 1.2 Product Image ........................ 1 1.3 Product Features ......................1 1.4 Product Parameters ......................2 Chapter 2 Installation Instructions ............... 3...

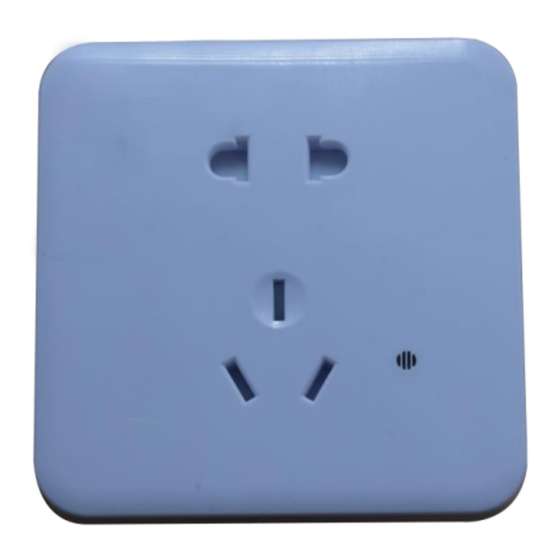

- Page 5 F-TS100 User Manual Chapter 1 Production Introduction 1.1 Product Description Intelligent temperature measuring socket F-TS100 is a socket that supports NB-IoT remote control and temperature detection. Supporting the room temperature detection platform independently developed by Four-Faith, it can achieve GIS monitoring, equipment management, real-time temperature monitoring, high &...
- Page 6 F-TS100 User Manual 1.4 Product Parameters Items Content Communication NB-IoT Method Communication Frequency Band Voltage 250V Current 10A MAX Stand-by Current 3mA @ 220V Socket Shape 5 holes Dimension 86*86*41mm Protection Level IP20...
- Page 7 F-TS100 User Manual Chapter 2 Installation Instructions 1. Use a flat-blade screwdriver to insert the card hole at the bottom of the socket to pry off the cover easily. The card hole is as shown in the figure below. Note: Please make sure the main power switch is closed before installation Card hole 2.
- Page 8 F-TS100 User Manual 3. Use the matching screws to fix the smart temperature measurement socket with the panel removed to the wall junction box, as shown below. Screw 2 Screw 1 Cover the panel again after the installation is complete, as shown in the following figure...
