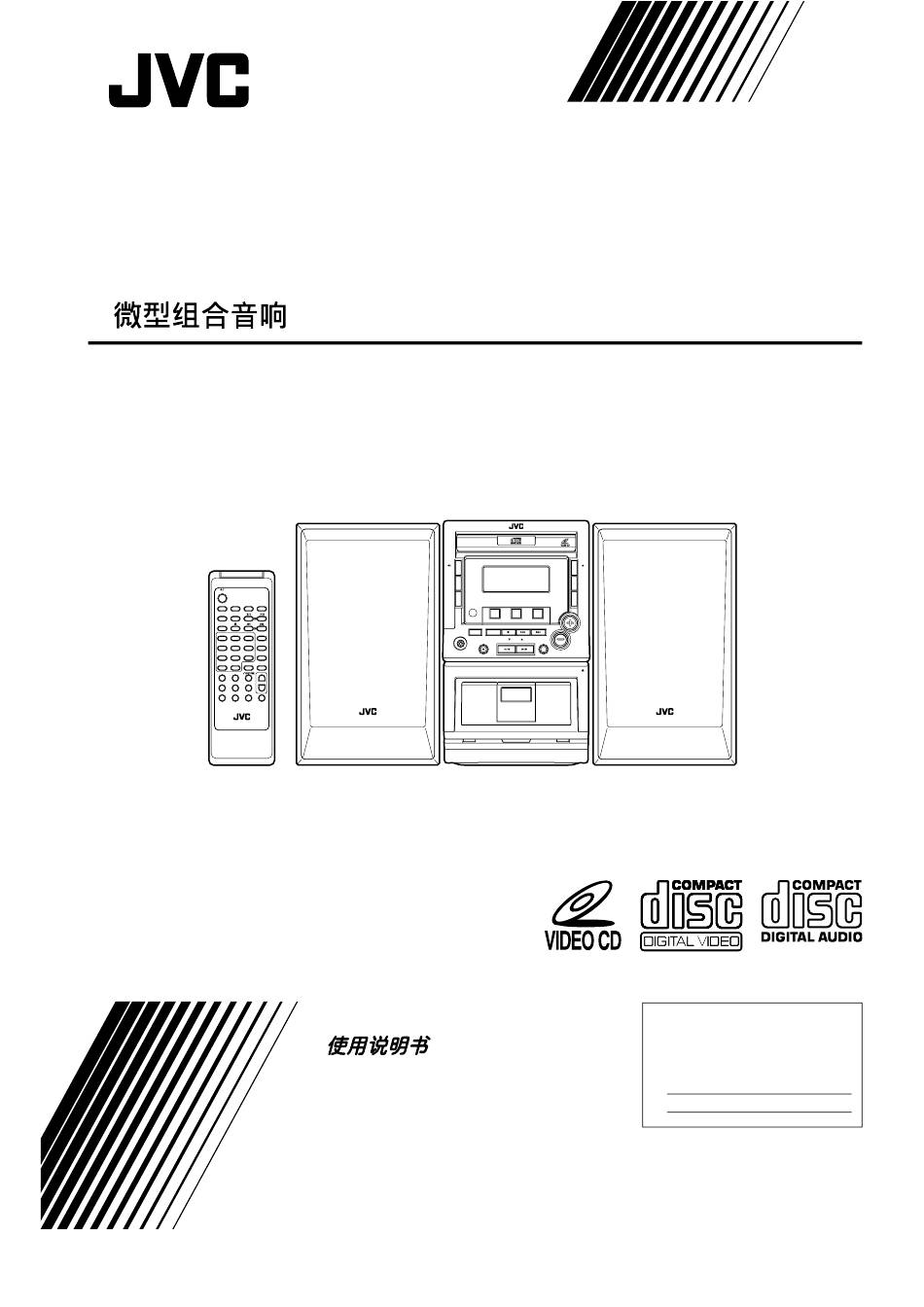

MICRO COMPONENT SYSTEM
UX-M6V
STANDBY/ON
TAPE
TUNER
CD/SHUFFLE
/BAND
/REV.MODE
OSD/DIM
PROGRAM
REC
DISPLAY
REPEAT
1
2
3
/DEMO
FM MODE
4
5
6
/VOCAL
7
8
9
MIC/ECHO
BEAT CUT
0
+10
MUTING
/KEY
NTSC/PAL
PBC
+
GOTO
A-B
RESUME
VOLUME
–
SLOW
TIMER
VIEW
PRE EQ/BBS
RM-SUXM6V REMOTE CONTROL
M I C R O
C O M P O N E N T
STANDBY
/ON
DISPLAY
TIMER
ON/OFF
SET
SHUFFLE
CD
PROGRAM
DEMO
STOP/CLEAR
REPEAT
MIC
PRESET
DIRECTION
REC
A U T O R E V E R S E
FULL LOGIC DECK
INSTRUCTIONS
S Y S T E M
U X - M 6 V
OPEN
/CLOSE
FM MODE
/VOCAL
OSD/DIM
BAND
REV. MODE
TUNER
TAPE
SEARCH/TUNING
VOLUME
PRE EQ
PLAY/PAUSE
/BBS
EJECT
For Customer Use:
Enter below the Model No. and Serial No.
which are located either on the rear, bot-
tom or side of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
LVT0809-001A
[US, UB]
