Trim SKU's
Current SKU's
Beveled Trim
2" Rectangular Trim
Ironworks Charcoal
Sizing
Beveled Trim
2" Rectangular Trim
* The bottom of the trim, when installed, is 1" above the base of the fireplace.
All Trim
Cross Section of Trim
Beveled
Packing List
Left, Right, and Top Trim
(18) #8 x 3/8" Pan Head Screws
Ironworks Trim
(2) ¼ x 20 Flat Head Screw (1/2")
5/32" Hex Wrench
Beveled Trim
(2) L Brackets with 2 Set Screws Pre-Installed
(2) L Spacers
2" Trim
(4) L Brackets with 2 Set Screws Pre-Installed
(4) L Spacers
Page 1 of 3

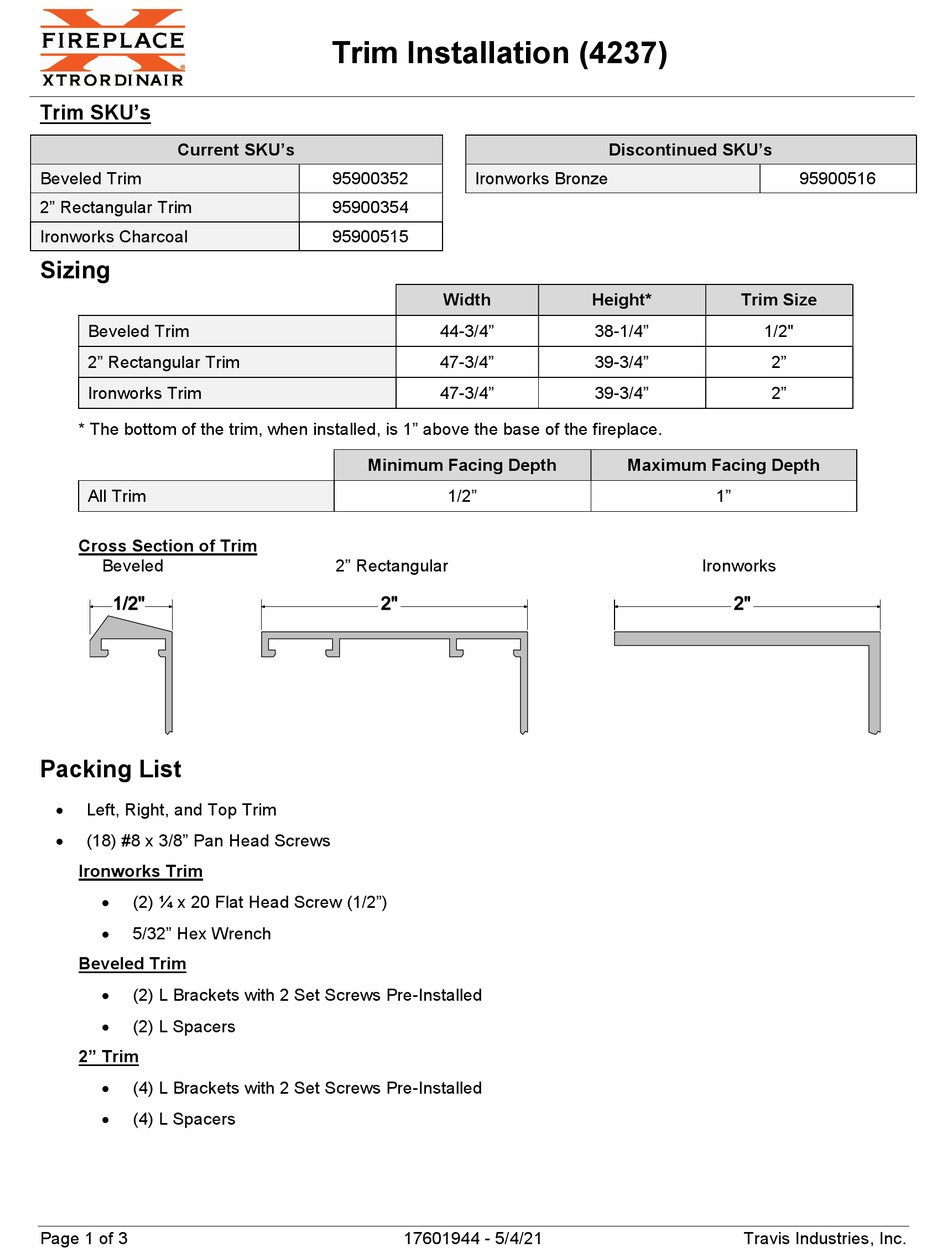

Trim Installation (4237)
95900352
Ironworks Bronze
95900354
95900515
Width
44-3/4"
47-3/4"
47-3/4"
Minimum Facing Depth
1/2"
2" Rectangular
17601944 - 5/4/21
Discontinued SKU's
Height*
Trim Size
38-1/4"
1/2"
39-3/4"
39-3/4"
Maximum Facing Depth
1"
Ironworks
Travis Industries, Inc.
95900516
2"
2"
