Compatibility

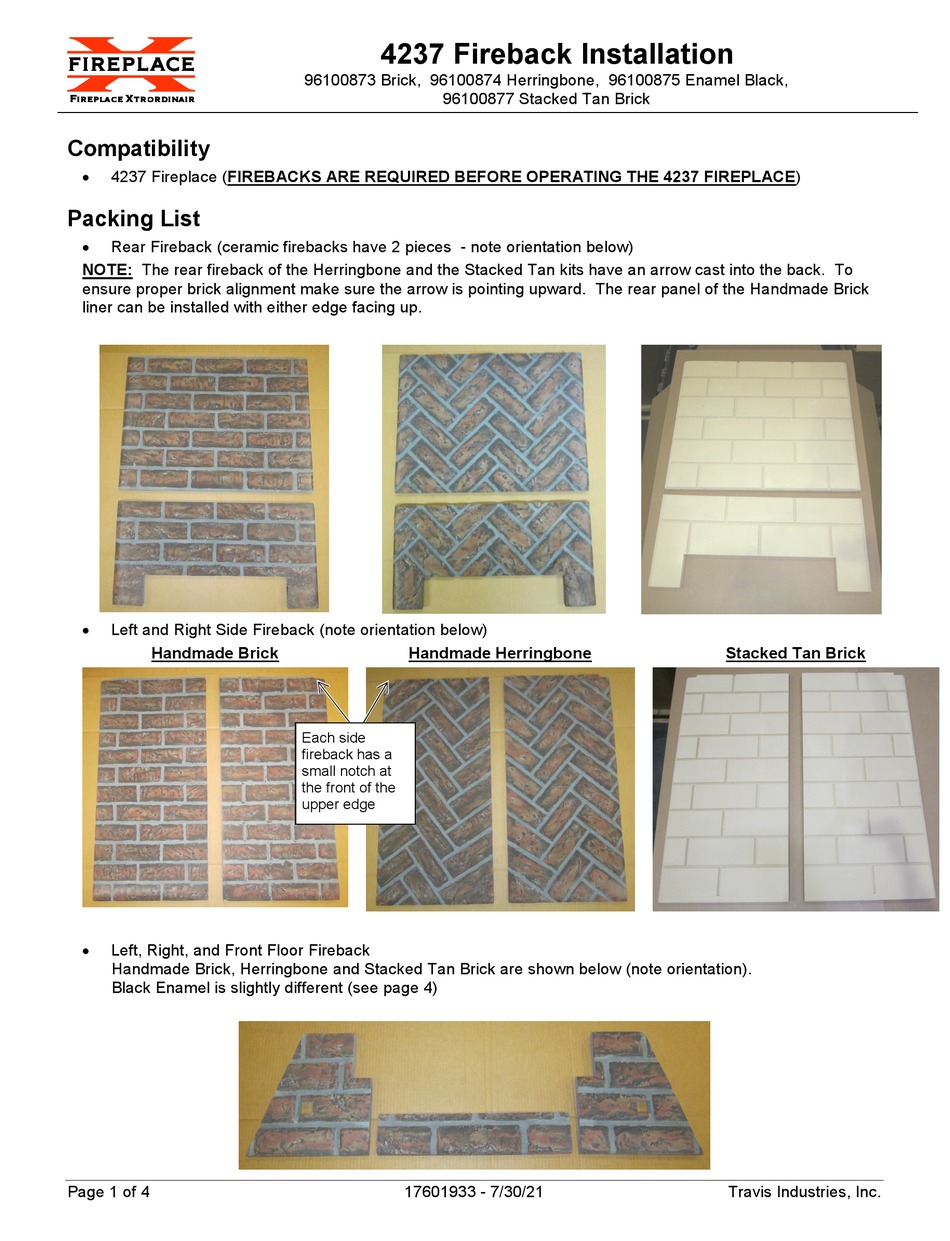

4237 Fireplace (FIREBACKS ARE REQUIRED BEFORE OPERATING THE 4237 FIREPLACE)
Packing List
Rear Fireback (ceramic firebacks have 2 pieces - note orientation below)
NOTE: The rear fireback of the Herringbone and the Stacked Tan kits have an arrow cast into the back. To
ensure proper brick alignment make sure the arrow is pointing upward. The rear panel of the Handmade Brick
liner can be installed with either edge facing up.
Left and Right Side Fireback (note orientation below)
Handmade Brick
Left, Right, and Front Floor Fireback
Handmade Brick, Herringbone and Stacked Tan Brick are shown below (note orientation).
Black Enamel is slightly different (see page 4)
Page 1 of 4
4237 Fireback Installation
96100873 Brick, 96100874 Herringbone, 96100875 Enamel Black,
96100877 Stacked Tan Brick
Handmade Herringbone
Each side
fireback has a
small notch at
the front of the
upper edge
17601933 - 7/30/21
Stacked Tan Brick
Travis Industries, Inc.
Advertisement
Table of Contents
Related Manuals for FireplaceXtrordinair 4237
Summary of Contents for FireplaceXtrordinair 4237
- Page 1 96100873 Brick, 96100874 Herringbone, 96100875 Enamel Black, 96100877 Stacked Tan Brick Compatibility 4237 Fireplace (FIREBACKS ARE REQUIRED BEFORE OPERATING THE 4237 FIREPLACE) Packing List Rear Fireback (ceramic firebacks have 2 pieces - note orientation below) NOTE: The rear fireback of the Herringbone and the Stacked Tan kits have an arrow cast into the back. To ensure proper brick alignment make sure the arrow is pointing upward.
- Page 2 4237 Fireback Installation 96100873 Brick, 96100874 Herringbone, 96100875 Enamel Black, 96100877 Stacked Tan Brick Installation WARNING Turn off gas to the appliance and make sure it is cool prior to conducting service. The firebacks should be installed while finalizing the installation (before installing the logs).
- Page 3 96100873 Brick, 96100874 Herringbone, 96100875 Enamel Black, 96100877 Stacked Tan Brick 4237 EG units with Enamel Black Firebacks ONLY Remove the rear log shelf. Loosen the 2 screws that secure the shelf to the unit, slide the shelf backward slightly and lift up to remove.
- Page 4 4237 Fireback Installation 96100873 Brick, 96100874 Herringbone, 96100875 Enamel Black, 96100877 Stacked Tan Brick Installation (continued) Place one side fireback in place. Secure with the two fireback clips. Repeat these steps for the remaining side fireback. Place the floor firebacks in place.
