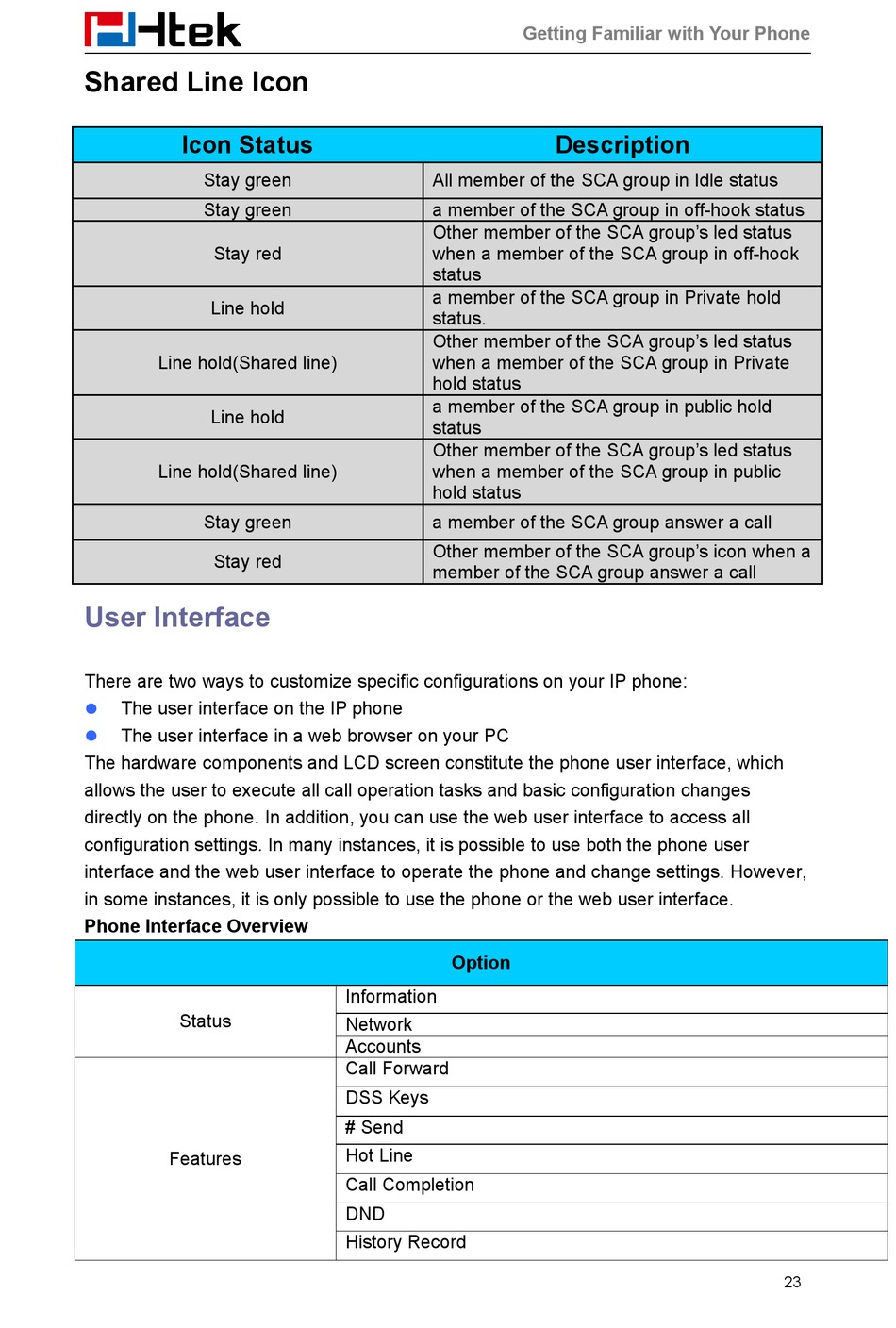

Shared Line Icon

Icon Status
Stay green
Stay green
Stay red
Line hold
Line hold(Shared line)
Line hold
Line hold(Shared line)
Stay green
Stay red

User Interface

There are two ways to customize specific configurations on your IP phone:
The user interface on the IP phone

The user interface in a web browser on your PC

The hardware components and LCD screen constitute the phone user interface, which
allows the user to execute all call operation tasks and basic configuration changes
directly on the phone. In addition, you can use the web user interface to access all
configuration settings. In many instances, it is possible to use both the phone user
interface and the web user interface to operate the phone and change settings. However,
in some instances, it is only possible to use the phone or the web user interface.
Phone Interface Overview
Status
Features
All member of the SCA group in Idle status
a member of the SCA group in off-hook status
Other member of the SCA group's led status
when a member of the SCA group in off-hook
status
a member of the SCA group in Private hold
status.
Other member of the SCA group's led status
when a member of the SCA group in Private
hold status
a member of the SCA group in public hold
status
Other member of the SCA group's led status
when a member of the SCA group in public
hold status
a member of the SCA group answer a call
Other member of the SCA group's icon when a
member of the SCA group answer a call
Option
Information
Network
Accounts
Call Forward
DSS Keys
# Send
Hot Line
Call Completion
DND
History Record
Getting Familiar with Your Phone
Description
23
