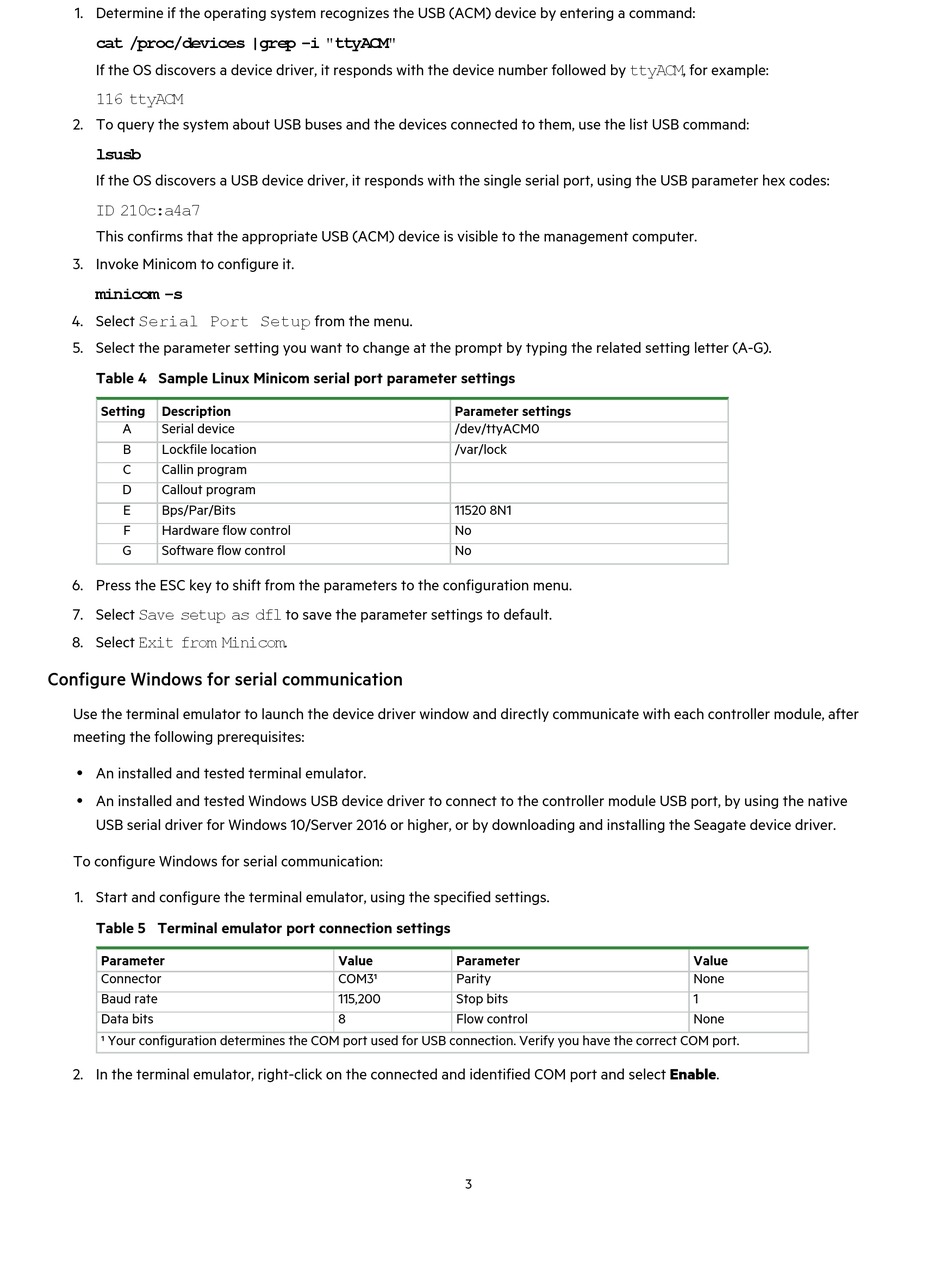

1. Determine if the operating system recognizes the USB (ACM) device by entering a command:
cat /proc/devices |grep -i "ttyACM"
If the OS discovers a device driver, it responds with the device number followed by ttyACM, for example:
116 ttyACM
2. To query the system about USB buses and the devices connected to them, use the list USB command:
lsusb
If the OS discovers a USB device driver, it responds with the single serial port, using the USB parameter hex codes:
ID 210c:a4a7
This confirms that the appropriate USB (ACM) device is visible to the management computer.
3. Invoke Minicom to configure it.
minicom -s
4. Select Serial Port Setup from the menu.
5. Select the parameter setting you want to change at the prompt by typing the related setting letter (A-G).
Table 4 Sample Linux Minicom serial port parameter settings
Setting Description
A Serial device
B Lockfile location
C Callin program
D Callout program
E Bps/Par/Bits
F Hardware flow control
G Software flow control
6. Press the ESC key to shift from the parameters to the configuration menu.
7. Select Save setup as dfl to save the parameter settings to default.
8. Select Exit from Minicom.
Configure Windows for serial communication
Use the terminal emulator to launch the device driver window and directly communicate with each controller module, after
meeting the following prerequisites:
An installed and tested terminal emulator.
l
An installed and tested Windows USB device driver to connect to the controller module USB port, by using the native
l
USB serial driver for Windows 10/Server 2016 or higher, or by downloading and installing the Seagate device driver.
To configure Windows for serial communication:
1. Start and configure the terminal emulator, using the specified settings.
Table 5 Terminal emulator port connection settings
Parameter
Connector
Baud rate
Data bits
¹ Your configuration determines the COM port used for USB connection. Verify you have the correct COM port.
2. In the terminal emulator, right-click on the connected and identified COM port and select Enable.
Parameter settings
/dev/ttyACM0
/var/lock
11520 8N1
No
No
Value Parameter
COM3¹ Parity
115,200 Stop bits
8 Flow control
3
Value
None
1
None
