Summary of Contents for shokz ROADWAVE

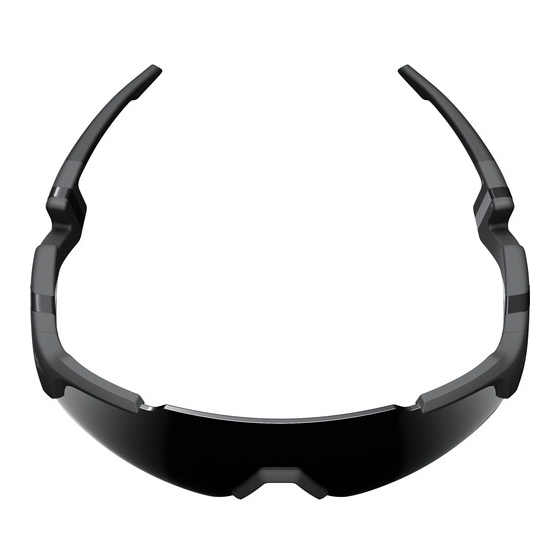

- Page 1 ROADWAVE V102 User Guide...
-
Page 2: Table Of Contents
CONTENTS Contents WHAT'S IN THE BOX �� HOW TO WEAR �� Check your fit �� Change the nose pad ON/OFF �� Power on �� Power off �� Auto-off BLUETOOTH CONNECTIONS �� Connect a mobile device �� Reconnect a mobile device ��... - Page 3 CONTENTS BATTERY �� Charge the glasses �� Check battery status �� Low battery notifications HOW TO SWITCH LENSES �� CARE AND MAINTENANCE �� Clean the glasses �� Water resistance �� Storage and maintenance WARRANTY �� Serial number locations �� Contact us REGULATORY AND LEGAL INFORMATION ��...
-
Page 4: What's In The Box
User guide Legal Statement Charging Cable If any part of your product is damaged or missing, do not use it. Contact authorized Shokz dealer or Shokz customer service. *Please note that the packaging envelope may vary depending on the sales region. -
Page 5: How To Wear
How to Wear... -
Page 6: Check Your Fit
CHECK YOUR FIT Check your fit Put on the glasses. Move your head up and down to check whether you’re using the best nose pad size. If the lens sits too low on your face or too close to your face, try the thicker nose pad provided in the box. -
Page 7: Change The Nose Pad
CHANGE THE NOSE PAD Change the nose pad 1. Distinguish the rubber part of the nose pad from the hard part, and only remove the rubber part. If you want to remove the entire nose pad, refer to page 26: How to switch lenses. 2. - Page 8 CHANGE THE NOSE PAD Change the nose pad 3. Align the bottom of the replacement nose pad hole with the bottom of the nose pad arm. Notice that the striped side of the nose pad should be facing inward. 4. Push the nose pad up and then in towards the glasses until you feel it click into place.
-
Page 9: On/Off
On/Off... -
Page 10: Power On
LED indicator flashes blue. *Audrey will say : “Welcome to Shokz.” *When the RoadWave is powered on for the first time, it directly enters the pairing mode, and the LED Indicator flashes red and blue alternately. -
Page 11: Power Off
LED indicator flashes red. *Audrey will say : “Power off.” Auto-off : If the RoadWave is not connected to any device for 5 minutes, it will turn off automatically. *Audrey will say : “Power off.”... -
Page 12: Bluetooth Connections
Bluetooth Connections... -
Page 13: Connect A Mobile Device
2. Press and hold the volume button and the multifunction button at the same time until the LED indicator flashes, will be red and blue alternately. The RoadWave is in the pairing mode. 3. Open your device's Bluetooth settings and select "... -
Page 14: Reconnect A Mobile Device
RECONNECT A MOBILE DEVICE Reconnect a mobile device Reconnect a mobile device · When powered on, the glasses try to connect with the most recently connected device. The device must be within the connectable range and powered on. *You will hear a tone when the connection has been established. -
Page 15: Clear The Device List
· You can store up to eight devices in the glasses’ device list. You can connect and play audio from only one device at a time. · If you need to clear the device list, while RoadWave is in charging state, press and hold the volume button and the multifunction button at the same time until the LED indicator flashes twice, will be blue. -
Page 16: Controls
Controls... -
Page 17: Media Playback
MEDIA PLAYBACK Media playback Multifunction Button Play/pause music Previous song Triple-click while music is playing Next song Double-click while music is playing... -
Page 18: Call Functions
CALL FUNCTIONS Call functions Multifunction Button Answer/End a Call Reject a call Press and hold for 2 seconds... -
Page 19: Voice Assistant
VOICE ASSISTANT Voice assistant Multifunction Button Prompt device’s voice assistant Press and hold for 2 seconds... -
Page 20: Volume Button
VOLUME BUTTON Volume Button Operate volume controls while audio is playing. Volume Button Increase Volume Decrease Volume Press and hold the Button... -
Page 21: Switch Languages
SWITCH LANGUAGES Switch languages Multifunction Button 1. Start with your RoadWave powered off. 2. Press and hold the volume button and the multifunction button at the same time to enter the Bluetooth pairing state (LED indicator flashes red and blue alternately). -
Page 22: Battery
Battery... -
Page 23: Charge The Glasses
CHARGE THE GLASSES Charge the glasses *Keep the charging ports dry before connecting to the charger.If the charging ports are wet, please wipe them with a soft dry cloth. 1. Attach charging cable's magnetic connectors to the charging ports on each temples, and connect the charging cable to a USB port. - Page 24 CHARGE THE GLASSES Charge the glasses 2. The LED indicator will turn red during the charging process and the glasses will automatically turn off. 3. The LED indicator will turn from red to blue when charging is complete.
-
Page 25: Check Battery Status
CHECK BATTERY STATUS Check Battery Status Volume Button How to check battery status : Click the volume button once while music is not playing, Audrey will tell the battery status if it’s powered on: * "Battery high/Battery medium/Battery low/Charge me"... -
Page 26: Low Battery Notifications
LOW BATTERY NOTIFICATIONS Low battery notifications When the glasses are at low battery (less than 5%), there will be a “charge me” voice prompt and the red light will flash intermittently. Use the provided magnetic charging cable for charging. -
Page 27: How To Switch Lenses
HOW TO SWITCH LENSES How to Switch Lenses 1. Press each button located on the inner side of each arm to release the arm from the lens. 2. Squeeze the hard parts of the nose pad together and pull down to release the nose pad from the lens. - Page 28 HOW TO SWITCH LENSES How to Switch Lenses 3. Align the replacement lens to the temples and the nose pad and push the lens into the grooves until you hear a snap. Confirm the glass is securely locked in.
-
Page 29: Care And Maintenance
Care and Maintenance... -
Page 30: Clean The Glasses
CLEAN THE GLASSES Clean the glasses Component Cleaning instructions After each use, wipe both sides of the lenses and all parts of the frame with the cloth bag provided. Do not use paper tissues or cloths containing fibers derived from wood. Do not use dirty or abrasive cloths. -
Page 31: Water Resistance
WATER RESISTANCE Water resistance This product was tested under controlled laboratory conditions, and has a rating of IPX4 under IEC standard 60529. Sweat and water resistance are not permanent conditions and resistance might decrease as a result of normal wear. CAUTIONS : ·... -
Page 32: Storage And Maintenance
STORAGE AND MAINTENANCE Storage and Maintenance · Keep the product in the cloth bag or case provided during transport and periods when not in use. · Keep in a dry place at a temperature between -10°C and 35°C. · Keep the product away from heat sources, direct sunlight, combustible gas or other liquids. -
Page 33: Warranty
Warranty... -
Page 34: Serial Number Locations
SERIAL NUMBER LOCATIONS Serial number locations The serial number can be found at the barcode of the packing box and on the warranty card. The serial number is also printed on the hinge of the left temple. -
Page 35: Contact Us
CONTACT US Contact us Your glasses are covered by a limited warranty. If you experience problems with the glasses, visit our website at US region: help.shokz.com All other region: customer.service@shokz.com... -
Page 36: Regulatory And Legal Information
REGULATORY AND LEGAL INFORMATION Regulatory and Legal Information Hearing Loss Listening with this product at high volume may affect your hearing and audio may be distorted. Please avoid using this product at a high volume for long periods of time. Be Aware of Your Surroundings ·... - Page 37 · Do not wear the glasses while charging. Do not charge the glasses during lightning storms. · Please only use accessories specified by Shokz. · Use this product only with an agency-approved power supply that meets local regulatory requirements (e.g., UL, CSA, VDE, CCC).
- Page 38 · Do not make unauthorized alterations to this product as this will result in the product and accessories not being covered by the Shokz warranty. If the products malfunctions, take your product and provide proof of purchase to Shokz or to an authorized dealer for assistance. Water Protection ·...
- Page 39 REGULATORY AND LEGAL INFORMATION Cleaning and Maintenance · Before cleaning and maintenance, turn off the power of the product and disconnect all connections and cables from other equipment. · After each use, wipe both sides of the lenses and all parts of the frame with the cloth bag provided.
- Page 40 Responsible party (contact for FCC matters only): FCC ID: 2A5CD-V102 AfterShokz LLC. 3200 Gracie Kiltz Lane, Suite 400 Austin, TX 78758, The USA. www.shokz.com Industry Canada This device complies with Industry Canada license-exempt RSS standard(s): Operation is subject to the following Two conditions:...
- Page 41 CE Declaration of Conformity Shokz Holding Limited hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and PPE (2016/425/EU) and all other applicable EU Directive requirements.
- Page 42 3%-8% very high sun on high mountains, glare reduction or in desert. ISO 7000-2951 not suitable for driving and road use. Note: Design and specification are subject to change without notice. For the most up-to-date product information, please visit www.shokz.com.
