Item # 1000 246 933
Model # FTS80721
USE AND CARE GUIDE

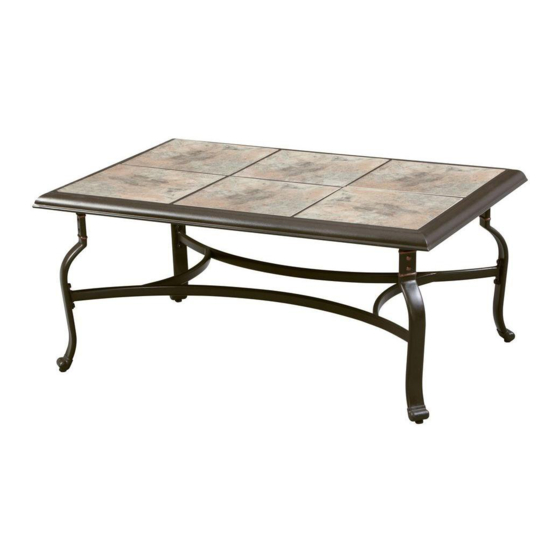

BELLEVILLE COFFEE TABLE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY FTS80721
Summary of Contents for HAMPTON BAY FTS80721
- Page 1 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM THANK YOU quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
-
Page 2: Table Of Contents
Table of Contents Pre-Assembly ..............3 Table of Contents ............2 Planning Assembly ..............3 Safety Information ............2 Product Caution ..............2 Hardware Included ..............3 Safety Information ..............2 Package Contents ..............4 Assembly ............... 5 Warranty ................ -
Page 3: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. NOTE: Hardware not shown to actual size. HARDWARE INCLUDED Part Description... -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Tile Table rim Leg connector Table leg... -
Page 5: Assembly
Assembly Connecting the table leg Place the table rim (B) upside down on a soft surface. Attach each of the table legs (D) to the table rim (B) using M6x20 combination bolts (BB). NOTE: Loosely tighten all the bolts using the hex wrench (CC). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance. - Page 6 Assembly (continued) Connecting the leg connector to the table legs Align the holes on the leg connector (C) with the holes on the inside of each table leg (D). Attach the leg connector (C) to the table legs (D) using M6x15 combination bolts (AA). NOTE: Loosely tighten all the bolts using the hex wrench (CC).
- Page 7 Assembly (continued) Adding the tiles Turn the table right side up. Ensure all connections are secure. Carefully place the tiles (A) onto the table rim (B). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
-
Page 8: Care And Cleaning
Assembly (continued) Securing the table Tighten all the bolts. Check and ensure the table is tightly assembled and stable before use. Care and Cleaning For best results, clean the frames with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. - Page 9 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
