Item # 1001 407 176
1001 407 177
Model # FTS81084A
FTS81084AG
USE AND CARE GUIDE

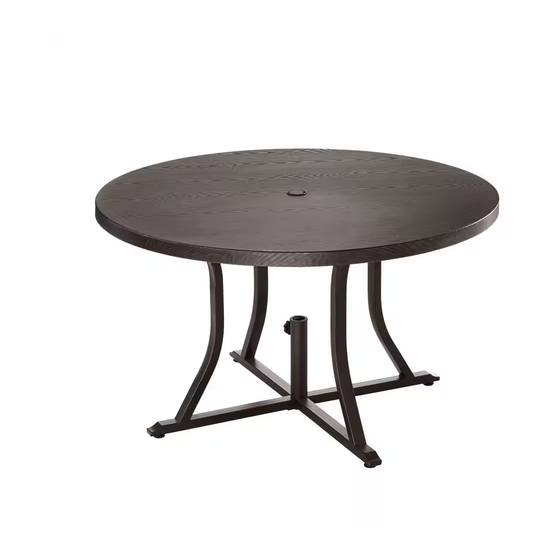

BEACON PARK 48 IN. ROUND DINING TABLE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
y through the purchase of this dining table. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY BEACON PARK
Summary of Contents for HAMPTON BAY BEACON PARK
- Page 1 Model # FTS81084A FTS81084AG USE AND CARE GUIDE BEACON PARK 48 IN. ROUND DINING TABLE Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Important Safety Instructions ........2 Planning Assembly ..............3 Save These Instructions ............2 Hardware Included ..............3 Read All Instructions Before Use ..........2 Package Contents ..............4 Warranty ................ -
Page 3: Warranty
Warranty 2 YEAR LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for two WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover s warranty. -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Table top Main table leg Side table leg Connection plate Umbrella ring cover... -
Page 5: Assembly
Assembly ATTACHING THE MAIN TABLE LEG TO THE TABLE TOP Place the table top (A) upside down on a soft surface. Attach the main table leg (B) to the table top (A) using M6x40 combination bolts (AA). Do not fully tighten the bolts at this step. NOTE : Loosely tighten all bolts using the hex wrench (CC). - Page 6 Assembly (continued) ATTACHING THE SIDE TABLE LEG TO THE TABLE TOP Attach the side table legs (C) to the table top (A) using M6x40 combination bolt (AA). Do not fully tighten the bolts at this step. NOTE : Loosely tighten all bolts using the hex wrench (CC).
- Page 7 Assembly (continued) CONNECTING THE SIDE TABLE LEGS TO THE MAIN TABLE LEG Attach the side table legs (C) to the main table leg (B) with the connection plate (D) using M6x15 combination bolts (BB). Do not fully tighten the bolts at this step. NOTE : Loosely tighten all bolts using the hex wrench (CC).
-
Page 8: Care And Cleaning
Assembly (continued) CHECKING THE TABLE Once all of the bolts are in place, fully tighten the bolts using the hex wrench (CC). Turn the table right side up. Place the umbrella ring cover (E) on the table top (A). Ensure all connections are secure before use. Care and Cleaning For best results, clean the table with a damp cloth and dry thoroughly. - Page 9 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA Retain this manual for future use. Factory ID # FTS81084A...
