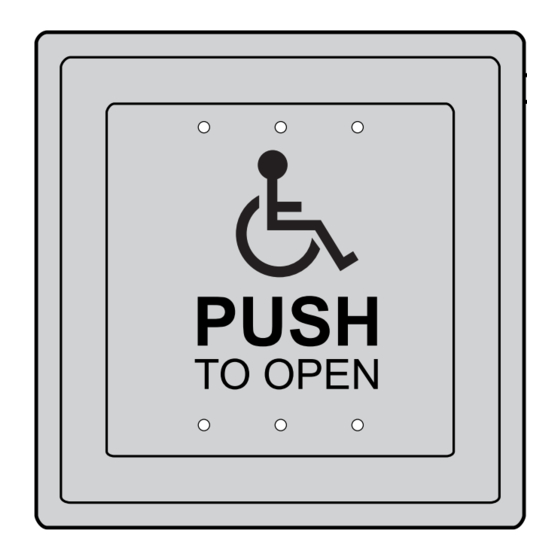

Model 8310-2420
The product warranty will be voided if the product is mounted for an exterior door and/or is exposed to elements.
Description
Actuators
Available faceplates:
Dual Single Gang "Push to Open/Push to Lock" with
illuminated flush mount box
Double Gang "Push to Open" with illuminated flush mount
box
E-strike
Provided faceplates:
•
4-7/8" x 5/8" (ANSI Square/Hollow Metal)
•
6-7/8" x 5/8" (Aluminum)
•
7-7/8" x 5/8" (Wood Door)
Parts lists
Main parts list
Item
#
1
"Push to Open" switch
"Push to Open/Push to Lock" combo
2
switch
3
LED electrical board
4
LED diffuser
5
Power supply/relay cabinet
6
Door position switch
7
Flush mounting boxes
E-strikes parts list
Item
#
E-strike (comes pre-installed w/ ANSI
1
faceplate)
2
Aluminum faceplate
3
Wood faceplate
4
Faceplate template
5
24V female connector
6
Varistor (MOV)
7
Trim plate
For cleaning purposes, do not expose components to extreme wash-down.
The electric strike is not water-proof.
Description
Description
8310-2420 Push Plate Restroom Kit
CAUTION
•
Transformer
•
Open style, channel bracket, two-hole chassis mount.
•
120 VAC @ 60 Hz.
•
Minimum 6" leads
•
Class B insulation (130° C)
Cabinet
•
11-1/16" x 7-7/8" x 2-11/16"
•
Power Supply (blue circuit board), Relay Module (green
circuit board), and two terminal buses
•
Must be set to 24VDC output
Item
Quantity
#
8
"Wait for Door to Close" vinyl decal
1
"Door locked when red/unlocked when
9
1
green" black vinyl sign
"Door occupied when red/vacant
2
10
when green" black vinyl sign
2
E-strike with 3 faceplates and
11
hardware (see the E-strike parts list
1
below)
1
12
Transformer
2
Item
Quantity
#
8
Mounting brackets
1
9
Wire nuts
1
#10-32 x 1/2" machine screws
10
(installed w/ ANSI faceplate on
1
e-strike)
3
#10 - 11/4" wood screws (used for
11
mounting brackets to wood frame)
1
M5 x 12mm machine screws (for
1
mounting brackets - 2 screws for
12
1
securing the frame brackets and 2
screws for securing the electric strike)
Installation Instructions
Description
Description
Quantity
1
1
1
1
1
Quantity
2
4
2
2
4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LCN 8310-2420
Summary of Contents for LCN 8310-2420
- Page 1 8310-2420 Push Plate Restroom Kit Model 8310-2420 Installation Instructions CAUTION The product warranty will be voided if the product is mounted for an exterior door and/or is exposed to elements. For cleaning purposes, do not expose components to extreme wash-down.
-
Page 2: Technical Specifications
Technical specifications Actuators Descriptions 8310-2420 Series Input voltage 24V DC (for LED electronic board) Current draw 110 mA @ 24 VDC (for LED electronic board) Contact rating 3A @ 30 VDC Lumina red 14.8 lumens, 1600 mW Lumina green 3.8 lumens, 330 mW Sounder 3200 ±... -
Page 3: Installation
Installation Mounting CAUTION The product warranty will be voided if the product is mounted for an exterior door and/or is exposed to elements. For cleaning purposes, do not expose components to extreme wash-down. The electric strike is not water-proof. L IMPORTANT: Do not apply power to the unit until you have fully read the instructions and have made the required adjustments! Actuators L NOTE: Actuators are for interior use only! - Page 4 E-strikes L Note: This can only be used with cylindrical locks. These cannot be used with mortise locks, deadbolts, or rim exit devices. Allegion suggests a storeroom function for a cylindrical lockset when paired with an e-strike (ex. the Schlage ND-Series ND80). L Note: this e-strike is not rated for preloading (pressure against the strike when the door is closed).
- Page 5 L IMPORTANT: Do not apply power to the unit until you have fully read the instructions and have made the required adjustments! The 8310-2420 cabinet should be mounted in a clean, dry location out of direct contact with the elements. The cabinet base dimensions can be seen on the separate cabinet base template (on page 17).
- Page 6 All applications The 8310-2420 comes with the relay module pre-wired to a labeled set of two terminal strips. A complete wiring diagram is adhered to the inside of the door to provide a layout of the wiring as a reference when wiring the field devices to the kit.
- Page 7 Connected to 24V DC Switch mounting holes (x2) from the +/- Wire to VDC terminals Inside in the cabinet "Push to Lock" (via wire terminals in access hole) the cabinet (via wire access hole) Enable Dipswitch ON DP Wired to the 1 2 3 Inside “Push Power and Relay Terminal Strip...
- Page 8 Transformer Refer to the graphic below to wire the transformer. Transformer Schematic OPEN STYLE FILAMENT & L.V. RECTIFIER USE TRANSFORMERS Black Black DPS switch Wire the switch as needed for the application. 2 5 8 '' 3 3 4 '' Set-up Ă...
- Page 9 Actuators Dip Switch Settings The Enable Dip Switch Bank contains three dip switches. Dip switch #3 turns the speaker on or off. Dip switch #2 toggles relay operation, and should be left ON for standard operation. Dip switch #1 allows you to choose whether the color will be changed locally via the push switch or remotely, and should be left OFF for standard operation.
- Page 10 Restroom signage SMP3 6, 12, 24 VDC POWER SUPPLY CLSD OPEN OPEN OPEN OPEN CLSD Power Supply Cabinet INSIDE THE to be mounted on RESTROOM the wall or above the ceiling tiles WAIT FOR DOOR TO CLOSE (if applicable) TO LOCK THIS DOOR Light ring on switch will turn red when door is locked.
- Page 11 Wiring diagram Door operator Electric strike Wire MOV directly to strike or 120 VAC magnet Transformer 24 VAC, 50 VA + Lock + Strike Outside - St rike Push To Open Inside Door Push To Open Operator Push To Lock DPS NC Control IMPORTANT:...
-
Page 12: Troubleshooting
Auto Operator Wiring Auto operator 4630/4640 Series Electric Auto- Terminals 17 or 19 Terminals 16 or 18 Equalizers 7900 Series Pneumatic Auto- Terminal 10 Terminal 8 (for Door A) or Equalizers Terminal 6 (for Door B) 9100 Series Benchmark Either “MAIN ACT” terminal Either “MAIN ACT”... - Page 13 Scenario Cause Solution Electric Strike itself is set to Follow the electric strike instructions in the Set-up section to change Fail Secure rather than Fail the screw on the back of the strike from Fail Secure to Fail Safe. Safe. The strike needs to be in the fully closed position in order for the Strike is not fully seated/ in strike to lock.
- Page 14 Scenario Cause Solution If the LED display is not on, then check the power troubleshooting section as either the module is bad or the module is not being powered up. No Power to the strike (cont.) If the LED Display is not set to ‘8’, press the far left “MENU” button on the Logic Module and use the “UP”...
- Page 15 Scenario Cause Solution Automatic Logic Module set to wrong Change Logic Module to Mode 7 or 8 depending on if your Electric operator will not mode Strike is set as Fail Safe or Fail Secure, respectively. Ensure all mode 7 close or 8 settings are set as shown in the instructions Logic Module has a stuck relay...
- Page 16 Scenario Cause Solution LED changes DIP Switch #1 in the Enable bank of dip switches needs to be set to DIP Switch Configuration color from idle "OFF". If it's turned "ON", this will happen. to active when The Push to Open actuator is incorreclty wired to the "Push to Lock" pressing the Incorrect wiring terminals in the Power Supply Cabinet.
- Page 17 Cabinet base template 6" 9⁵⁄8"...
