External Bridge Dimension Verification

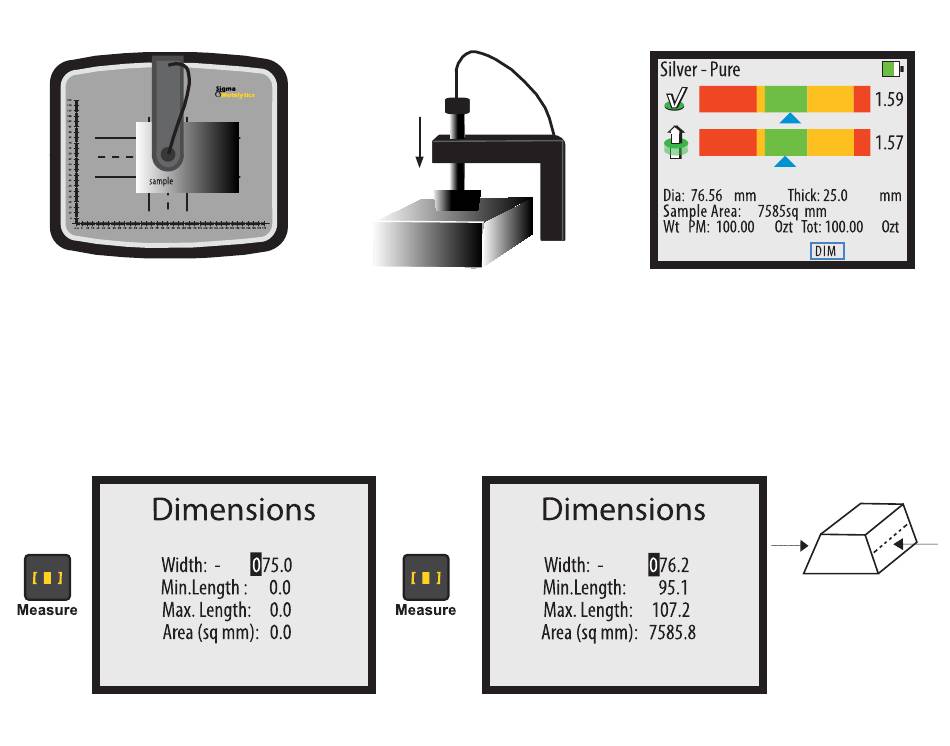

The External Bridge can provide dimension verification, similar to the onboard sensors. Please refer to Page 12 for a basic
overview. When verifying dimensions with the External Bridge, enter the measured weight, then, press the MEASURE button
while the device is reading the sample. The device will display an initial DIMENSIONS screen. You must enter the measured
width of the bar first for the device to calculate the expected minimum and maximum length of the sample. Use the onboard
scale or calipers to measure the width. Once you have entered the width, press the MEASURE button again and the device
will display the calculated minimum and maximum lengths for the sample. Confirm that your sample falls within that range.
Refer to Page 9 for data entry.
Note:
Plunger
17
For bars with angled
Note:
sides, measure width
from the middle of
each side.
