- Page 1 MANUAL - QUICK GUIDE MODEL #2601 Sigma Metalytics...
-
Page 3: Table Of Contents
Contents Precautions PMV PRO Diagram PMV PRO Functions Power-on Measure Screen Select Metal Measure Screen - Basic Interpreting the Measure Screen Measuring Dimensions - Weight Mode/Weight Select Enter Weight Value Measure Screen - with Weight & Dimensions Measuring Sample Dimensions Wand Use Thickness Calibration Setup Screen... - Page 5 Sigma Metalytics and the Precious metal Veri er Pro make no claim, guarantee or promise that measurments made by the Precious Metal Veri er Pro indicates that any sample is or is not the selected metal or alloy, whether the reading is within or is not within the bounds consistent with the selected metal or alloy.
-

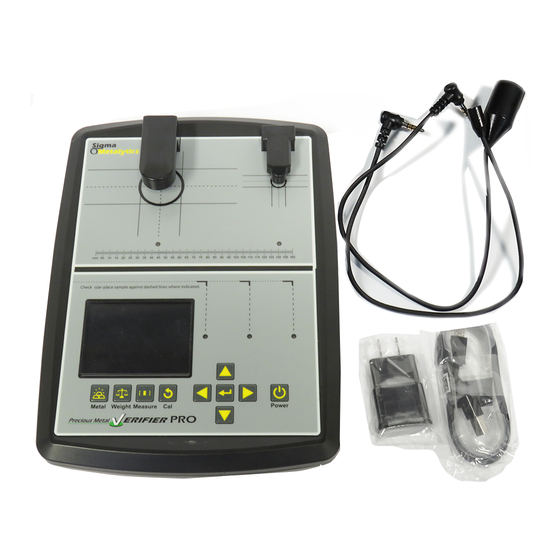

Page 6: Pmv Pro Diagram
PMV Pro Small Sensor ________________________ Large Sensor and Bridge and Bridge Sample Placement Sample Placement External Circle Circle Sensor Port Sample must cover inside Sample must cover inside of placement circle of placement circle ________________________ Active Sensor Wand Measurement Lamps Connection Scale 105 110... -
Page 7: Pmv Pro Functions
PMV PRO Functions The PMV Pro is a revolutionary device used to electronically determine if the metal in a precious metal coin or bar is as expected. There are four measurements you can take with this instrument: Basic Verifier mode: The PMV Pro measures the characteristic resistance or resistivity of the sample, just under the surface of the metal. - Page 8 POWER- ON CALIBRATE - MEASURE SCREEN Precious Metal Press Veri er Pro Firmware Version: 1.01 FPGA Version: 1.03 Power ON Database: 1.03 Silver-Silver Pure Calibrating Calibration required Press Ready - Place Sample Please wait Remove sample. Press Cal button to start Wt PM: 1.00 Ozt Tot: 1.00...
-
Page 9: Select Metal
SELECT METAL Press Metal Select Other Select Gold Select Silver Silver Pure Gold Pure Platinum 92.5% Sterling 91.7% 22K bal Cu Palladium Rhodium 90% Coin 1945 90% Bal Cu Copper 96% Britannia American Eagle Calibrator 98.6% 1. Press Either Enter Select Silver Silver Pure █... -
Page 10: Measure Screen - Basic
MEASURE SCREEN (Basic) Selected Metal Battery Charge Blue -charging Reading inconsistent Green- charged with selected metal Yellow- low Silver-Silver Pure Red- charge immediately Reading consistent with selected metal 1.59 Veri er Reading Reading cautionary- Consistent but possibly a ected by relief or 1.57 Thru-Sample Reading contaminants... - Page 11 INTERPRETATION Press █ GOOD READING Silver-Silver Pure Silver-Silver Pure Measure Verifier & Thru 1.59 readings consistent Ready - Place Sample with selected metal 1.57 Other possible readings below: Silver-Silver Pure Gold-Gold Pure Top arrow 1.80 1.59 Readings will di er in red region: signi cantly Veri er reading...
-
Page 12: Measuring Dimensions - Weight Mode/Weight Select
MEASURING DIMENSIONS Press WEIGHT MODE / WEIGHT SELECT Weight PM ( Precious Metal) Weights English Units - Ozt Metric Units - grams Arrows to select Units of PM 1/10 1/20 Arrows Up/Down to select On/O Value Enter Weight Metric Units - grams English Units - Ozt Weight Mode PM Weight :... -
Page 13: Enter Weight Value
ENTER WEIGHT VALUE The precious metal or total weight can be entered in oz troy or grams Arrows Enter Weight Enter Weight Enter Weight Arrows Up-Down English Units - Ozt to Select English Units - Ozt English Units - Ozt Press Select PM Weight :... - Page 14 MEASURE SCREEN Measure screen weight and size enabled* Selected Metal Battery Charge (Blue when charging) Reading inconsistent with selected metal Silver-Silver Pure Reading consistent with selected metal Veri er Reading 1.59 Michrom- cm Reading cautionary- Consistent but possibly a ected by relief or Thru-Sample Reading 1.57 contaminants...
-
Page 15: Measuring Sample Dimensions
MEASURING SAMPLE DIMENSIONS Instrument must have weight mode on and correct weight entered Silver-Silver Pure Select Sample Shape Choose Shape 1.60 Press Round █ Rectangular 1.58 Measure Dia: 76.56 mm Thick: 6.44 Sample Area: 4604sq mm Wt PM: 10.00 Ozt Tot: 10.00 Press Enter Place right edge... -
Page 16: Wand Use
WAND USE Plug in wand- Calibration required wand icon will show on screen Remove sample. Calibrate away from metal when using wand Press Cal button to start 105 110 Place sample against dotted lines where indicated. Press Silver-Silver Pure 1.61 █... -
Page 17: Thickness Calibration
Thickness Calibration Press Cal and hold 3 seconds Place Calibrator under sensor. Calibration Press Enter button mm 05 105 110 to cal Place sample against dotted lines where indicated. Place calibration Silver-Silver Pure coin under each sensor that that needs to be Ready - Place Sample calibrated Wt PM: 1.00... -
Page 18: Setup Screen
SETUP SCREEN Setup Silver-Silver Pure 1.59 Weight Mode: 1.57 Display: Resist Conduct Backlight: High Arrows Arrows Up/Down to select to select Category Condition Press █ Measure When Done... -
Page 19: External Bridge Sensor
External Bridge Sensor Place Sample: Reading Results: -Read measure screen as usual- -To start place middle of sample under sensor -Reading may take several seconds to stabilize -Push plunger down to contact with sample or sample holder Silver-Silver Pure &!--- 1.60 1.58 Dia: 76.56 mm... -
Page 20: External Bridge Sensor (Cont)
External Bridge Sensor (cont) Purpose: To verify large bars -measuring up to 100 oz. /5 kg Checking remainder of sample: Bars must be 12-45 mm thick and at least 50 mm wide -Move sample around to examine other areas Attach External Bridge : Plug into 15 pin receptor on PRO: -Attach screws for permanent or long term use -Attachment can be done with power on or off... - Page 21 90 days from the date listed on your receipt and covers defects in materials and workmanship in your Precious Metal Verifier and accessories. If you purchased through a retailer, you may be required to provide Sigma Metalytics with your original sales receipt from your purchase to receive our warranty service.
- Page 22 MODEL #2601 Sigma Metalytics email: info@sigmametalytics.com Made in USA - US Patent No. 9,922,487 & Pending www.sigmametalytics.com...
