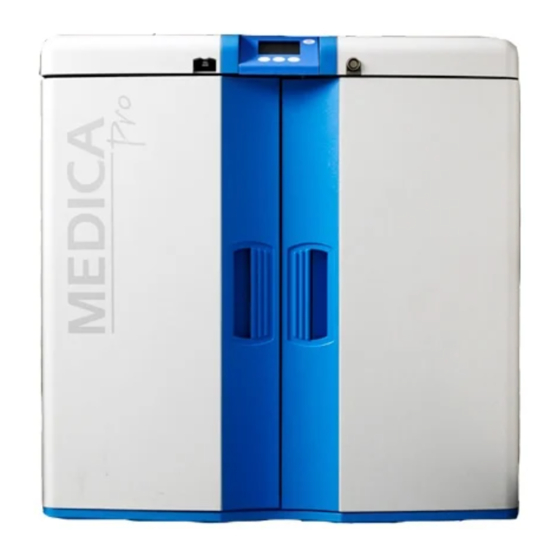

- Page 1 MEDICA Pro EDI - US Quick Start Manual...
-
Page 3: Health And Safety Notes
2.1 Electricity It is essential that the electrical supply to the MEDICA Pro EDI – US is isolated before any items are changed or maintenance work performed. The appliance coupler (mains lead) connected to the rear of the unit can be removed to isolate the power supply. If access to this is restricted then it is recommended that access to the supply socket is easily available to disconnect the electrical supply. -
Page 4: Installation
ELGA MEDICA Pro EDI - US Quick Start Manual INSTALLATION 3.1 Unpacking MEDICA Pro EDI -US The following items are supplied: MEDICA Pro. EDI - US Electrical supply lead. Quick reference guide fitted on inside of door. MEDICA Pro Starter Kit 6 or 7 (to be ordered separatly). - Page 5 ELGA MEDICA Pro EDI - US Quick Start Manual 3.3 Connecting MEDICA Pro EDI Once the MEDICA Pro EDI unit has been positioned, it should be connected as follows: CONNECT potable feed water supply using tube supplied. Note: Ensure a suitable valve is fitted to allow isolation of the supply during essential maintanence.
- Page 6 ELGA MEDICA Pro EDI - US Quick Start Manual CONNECT electrical supply lead into the socket on the rear of the MEDICA Pro EDI unit and to local isolated supply. Electrical supply connection MEDICA Pro EDI MANU40683 Ver.2 – 10/15...
- Page 7 PRESS UP to increase or DOWN to decrease month. PRESS SHIFT to step cursor onto year. PRESS UP to increase or DOWN to decrease year. PRESS TICK ✓ . Setting date screens MEDICA Pro EDI - US MANU40683 Ver.2 – 10/15 Page 5...
- Page 8 ELGA MEDICA Pro EDI - US Quick Start Manual CONSUMABLE INSTALLATION LC181 LC109 LC206 LC136 LC123 LC105 LC177 LC207 CONSUMABLES LOCATION 5.1 Pre-treatment Cartridge Protek L2 (LC177) SCREEN prompt to install Protek pre- treatment cartridge. (PT LC177). REMOVE Protek pre-treatment cartridge from packaging.
- Page 9 PRESS process button The system now enters an automatic purge phase. After a maximum of 60 minutes the system will exit the purge phase regardless of the final water purity. MEDICA Pro EDI - US MANU40683 Ver.2 – 10/15 Page 7...
-
Page 10: Basic Operation
Sanitization Procedure. MEDICA Pro EDI - US is supplied set up to operate on Monday to Friday, between the hours of 07:30 to 18:00. Refer to Operators Manual supplied on CD for instructions on how to adjust the times of operation or to switch to continuous recirculation.
