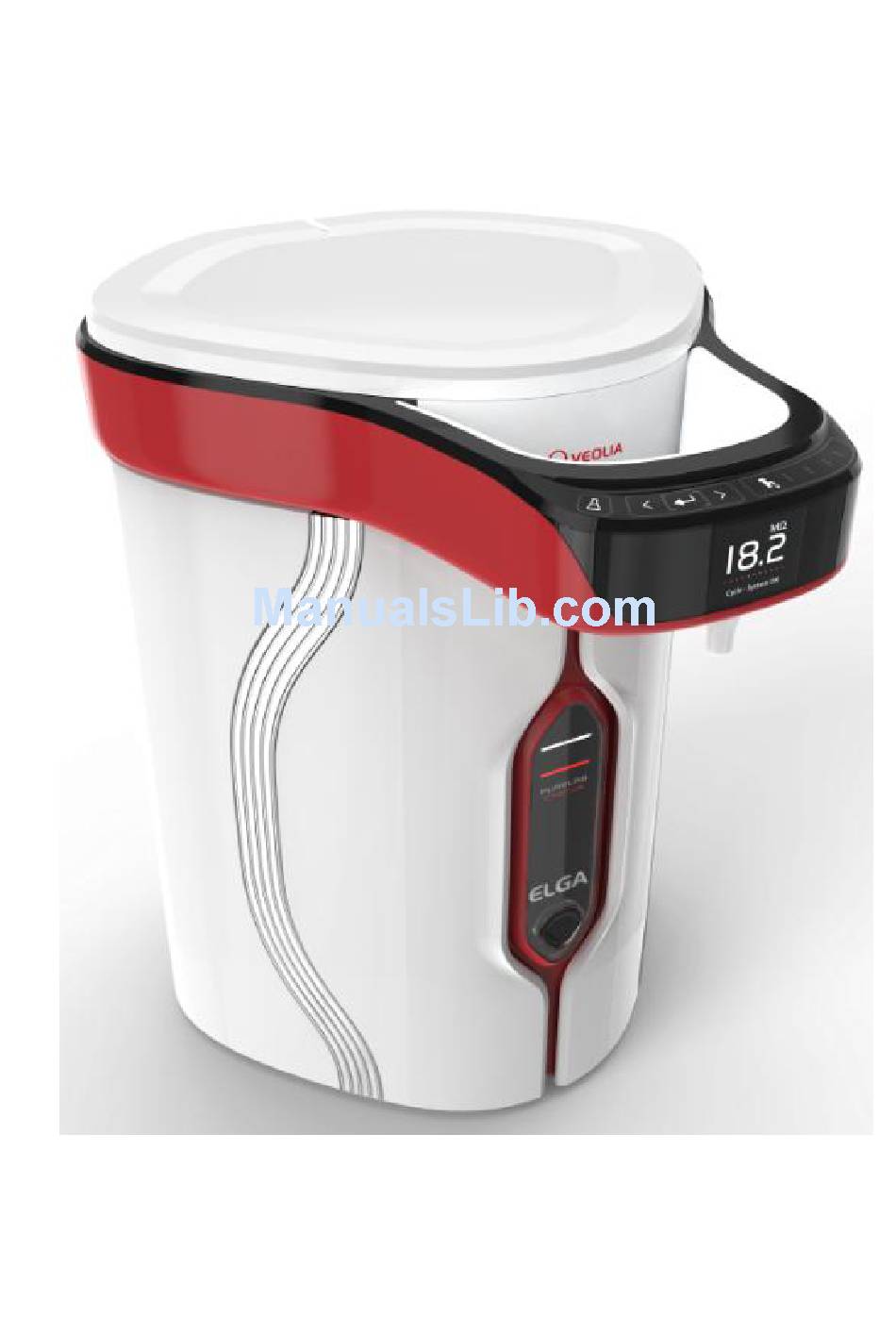

PURELAB
Chorus
Configuration & Installation Guide
(PAF0076-01)

Advertisement

Table of Contents
loading

Related Manuals for ELGA PURELAB Chorus

Summary of Contents for ELGA PURELAB Chorus

  • Page 1 ® PURELAB Chorus Configuration & Installation Guide (PAF0076-01)
  • Page 2 WALL MOUNTING KITS & MOUNTING CONFIGURATIONS ....13 1 x PURELAB Chorus 3 (RO) + 15, 30, 60 or 100 liter Storage Reservoir ..... 17 2 x PURELAB Chorus 3 (30lph) + 15, 30, 60 or 100 liter Storage Reservoir ....18 3 x PURELAB Chorus 3 (30lph) + 60 or 100 liter Storage Reservoir ......
  • Page 3 Copyright Note The information contained in this document is the property of VWS (UK) Ltd, trading as ELGA LabWater, and is supplied without liability for errors or omissions. No part of this document may be reproduced or used except as authorized by contract or other written permission from VWS (UK) Ltd.

  • Page 4: Introduction

    Humidity max 80% non-condensing. Failure to follow the environmental specification could result in damage to the system. CAUTION! PURELAB Chorus is not designed for use in fume cupboards where chemicals could damage the system. Halo Dispense The Halo Flexible Dispense handset is not CAUTION! designed to be submersed in water.
  • Page 5 Ultraviolet Light UNDER NO CIRCUMSTANCES SHOULD THE LAMP BE CONNECTED AND ACTIVATED WHEN OUTSIDE THE HOUSING. EXPOSURE COULD CAUSE SERIOUS WARNING! INJURY TO EYES AND SKIN. ENSURE THE UV LAMP IS DISPOSED OF IN ACCORDANCE WITH LOCAL REGULATIONS. Residual Biostat DURING THE COMMISSIONING CYCLE TRACE RESIDUAL BIOSTAT IS FLUSHED FROM THE WARNING!

  • Page 6: Ammendments To This Document

    PC2RODIM1 PURELAB Chorus 2 (RO/DI) – Tap to Pure Water System RO310XXM1 PURELAB Chorus 3 (RO) – Type III General Grade Solution up to 10l/hr PURELAB Chorus 3 (RO) – Type III General Grade Solution up to 10l/hr. RO310BPM1 (fitted with feed water boost pump) RO320XXM1 PURELAB Chorus 3 (RO) –...

  • Page 7: Installation Kits & Part Details

    Not compatible with PURELAB Chorus 1 – General Science or Analytical Research 6. INSTALLATION KITS & PART DETAILS The following pages detail what is contained in PURELAB Chorus Installation Kits to help you locate the correct parts for installation. Parts / Installation Kits Required...
  • Page 8 LEAD39874 1.5MTR EXTERNAL POWER LEAD TEES38261 EQUAL TEE - 8MM OD TUBE LA779 Remote Mounted Installation Kit For installing a Halo Dispenser remotely up to 5m away from the PURELAB Chorus system. Part Number Description FTBEAC0505 FLOW BEND JG 5/16"...

  • Page 9: External Electrical, Comm'n & Water Connections

    Port 8 – Electrical Power (all systems) Port 7 – Network Connection (all systems) Port 6 – Electrical Power (all systems) Port 5 – Return – Purified Water (PURELAB Chorus 1 only) systems) Port 4 – Purified Water Outlet (all systems) Port 3 –...

  • Page 10: Internal Electrical & Communication Connections

    8. INTERNAL ELECTRICAL & COMMUNICATION CONNECTIONS. Chorus 3 / PURELAB Chorus 2 or Microprocessor Board Network Network Connection Connection (External Port 7) (External Port 9) Port 9 – Network Connection Port 8 – Electrical Power Port 7 – Network Connection Port 6 –...

  • Page 11: Storage Reservoir Microprocessor Board

    Storage Reservoir Microprocessor Board Network & Power Network & Power Connection Connection...

  • Page 12: Halo Dispense Microprocessor Board

    Halo Dispense Microprocessor Board Power Power Network Network Connection Connection Connection Connection (External Port 8) (External Port 6) (External Port 7) (External Port 9)

  • Page 13: Wall Mounting Kits & Mounting Configurations

    9. WALL MOUNTING KITS & MOUNTING CONFIGURATIONS The following page details what is contained in PURELAB Chorus Installation Kits to help you locate the correct parts for installation. Parts / Installation Kits Required Supplied Ordered Part No. Description with System...
  • Page 14 It is not possible to wall mount the 100 liter Storage reservoir on a wall. Wall Mounted Bench / Wall Mounted Chorus 3 (RO) or PURELAB Chorus 2 Chorus 3 (RO) or PURELAB Chorus 2 (RO/DI) with 15 or 30 liter Storage...
  • Page 15 Halo Flexible Dispense configuration is not possible. possible Bench Mounted Wall Mounted PURELAB Chorus 1 with Halo Dispense and PURELAB Chorus 1 with Halo Dispense 15 or 30 liter Storage Reservoir Integrated Integrated Underneath and 15 or 30 liter on top...
  • Page 16 Wall Mounted Halo Dispense with integrated 15 or 30 liter reservoir Integrated on top Use LA768 Wall Mounting Kit and additional mounting bracket supplied to secure reservoir to the wall.

  • Page 17: X Purelab Chorus 3 (Ro) + 15, 30, 60 Or 100 Liter Storage Reservoir

    1 x PURELAB Chorus 3 (RO) + 15, 30, 60 or 100 liter Storage Reservoir Hydraulic / Water Connections Inlet Outlet Outlet Drain Electrical / Communications Connections Storage Power Reservoir Supply System 1 External Communication & Power Cable Communication / Power Connection Details...

  • Page 18: X Purelab Chorus 3 (30Lph) + 15, 30, 60 Or 100 Liter Storage Reservoir

    2 x PURELAB Chorus 3 (30lph) + 15, 30, 60 or 100 liter Storage Reservoir Hydraulic / Water Connections Inlet Outlet Outlet Drain Electrical / Communications Connections System 2 Power Storage Supply Reservoir External System 1 Communication & Power Cable...

  • Page 19: X Purelab Chorus 3 (30Lph) + 60 Or 100 Liter Storage Reservoir

    3 x PURELAB Chorus 3 (30lph) + 60 or 100 liter Storage Reservoir Hydraulic / Water Connections Inlet Inlet Outlet Outlet Outlet Drain Electrical / Communications Connections System 2 Power Storage Supply Reservoir External Communication External & Power Cable Communication...

  • Page 20: X Purelab Chorus 3 (30Lph) + 60 Or 100 Liter Storage Reservoir

    4 x PURELAB Chorus 3 (30lph) + 60 or 100 liter Storage Reservoir Hydraulic / Water Connections Inlet Inlet Outlet Outlet Outlet Drain Electrical / Communications Connections System 2 System 4 Storage Power Reservoir Supply External External Communication Communication & Power Cable &...

  • Page 21: X Purelab Chorus 2 (Ro/Di) + 15, 30, 60 Or 100 Liter Storage Reservoir

    1 x PURELAB Chorus 2 (RO/DI) + 15, 30, 60 or 100 liter Storage Reservoir Hydraulic / Water Connections Inlet Outlet Outlet Drain Electrical / Communications Connections Storage Power Reservoir Supply System 1 External Communication & Power Cable Communication / Power Conn ction D tails...

  • Page 22: X Purelab Chorus 2 (Ro/Di) + 15, 30, 60 Or 100 Liter Storage Reservoir

    2 x PURELAB Chorus 2 (RO/DI) + 15, 30, 60 or 100 liter Storage Reservoir Hydraulic / Water Connections Inlet Outlet Outlet Drain Electrical / Communications Connections System 2 Power Storage Supply Reservoir External System 1 Communication & Power Cable...

  • Page 23: X Purelab Chorus 2 (Ro/Di) + 60 Or 100 Liter Storage Reservoir

    3 x PURELAB Chorus 2 (RO/DI) + 60 or 100 liter Storage Reservoir Hydraulic / Water Connections Inlet Inlet Outlet Outlet Outlet Drain Electrical / Communications Connections System 2 Power Storage Supply Reservoir External Communication External & Power Cable Communication...

  • Page 24: X Purelab Chorus 2 (Ro/Di) + 60 Or 100 Liter Storage Reservoir

    4 x PURELAB Chorus 2 (RO/DI) + 60 or 100 liter Storage Reservoir Hydraulic / Water Connections Inlet Inlet Outlet Outlet Outlet Drain Electrical / Communications Connections Storage System 2 System 4 Power Reservoir Supply External External Communication Communication & Power Cable &...

  • Page 25: Purelab Chorus 1

    10. PURELAB CHORUS 1 PURELAB Chorus 1 Range with Integrated Halo dispense Hydraulic / Water Connections Inlet Inlet Note: Drain connection required for Life Science and Drain Note: Halo Flexible Dispense Drain Analytical Research variants will not integrate underneath only.

  • Page 26: Purelab Chorus 1 Range With Remote Halo Dispense

    PURELAB Chorus 1 Range with Remote Halo Dispense Hydraulic / Water Connections Inlet Inlet Note: Drain connection required for Life Science and Drain Drain Analytical Research variants only. Electrical / Communications Connections 1. Connected to a Storage Reservoir 1. NOT connected to a Storage Reservoir...

  • Page 27: Purelab Chorus 1 Range With Multiple Halo Dispense Solutions

    PURELAB Chorus 1 Range with multiple Halo Dispense solutions Hydraulic / Water Connections Inlet Halo 2 Halo 3 Halo 4 Halo 2 Halo 3 Halo 4 Note: Drain connection required for Life Science and Note: Halo Flexible Dispense Drain Analytical Research variants will not integrate underneath only.

  • Page 28: Gravity Feed - Halo Dispense Configurations

    11. GRAVITY FEED - HALO DISPENSE CONFIGURATIONS 1 x Halo Dispense (mounted remotely) Gravity Geed from Storage Reservoir (Flooded Suction) Max Distance 0.0m (00.0’) Max Flow Rate 0.0 l/min Dispense...

  • Page 29: X Halo Dispensers (1 X Integrated & 1 X Mounted Remotely)

    2 x Halo Dispensers (1 x integrated & 1 x mounted remotely) Gravity Geed from Storage Reservoir (Flooded Suction) Max Flow Rate 0.0 l/min Dispense Max Distance 0.0m (00.0’) Loop pressure in recirculation 0.0 bar (0.0psi) Max Flow Rate 0.0 l/min Dispense...

  • Page 30: Halo Dispensers (Mounted Remotely)

    2 Halo Dispensers (mounted remotely) Gravity Geed from Storage Reservoir (Flooded Suction) Max Distance Max Distance 0.0m (00.0’) 0.0m (00.0’) Max Flow Rate Max Flow Rate 0.0 l/min 0.0 l/min Dispense Dispense Loop pressure in recirculation 0.0 bar (00.0psi)

  • Page 31: Halo Dispensers (1 X Integrated & 2 X Mounted Remotely)

    3 Halo Dispensers (1 x integrated & 2 x mounted remotely) Gravity Geed from Storage Reservoir (Flooded Suction) Max Flow Rate 0.0 l/min Dispense Max Distance Max Distance 0.0m (00.0’) 0.0m (00.0’) Max Flow Rate Max Flow Rate 0.0 l/min 0.0 l/min Dispense Dispense...

  • Page 32: Halo Dispensers (Mounted Remotely)

    3 Halo Dispensers (mounted remotely) Gravity Geed from Storage Reservoir (Flooded Suction) Max Distance 0.0m (00.0’) Max Flow Rate Max Flow Rate Max Distance 0.0 l/min 0.0 l/min 0.0m (00.0’) Dispense Dispense Max Distance 0.0m (00.0’) Max Flow Rate 0.0 l/min Dispense Loop pressure in recirculation 0.0 bar (00.0psi)

  • Page 33: X Halo Dispensers (1 X Integrated & 3 X Mounted Remotely)

    4 x Halo Dispensers (1 x integrated & 3 x mounted remotely) Gravity Geed from Storage Reservoir (Flooded Suction) Max Distance Max Flow Rate 0.0m (00.0’) 0.0 l/min Dispense Max Flow Rate Max Flow Rate Max Distance 0.0 l/min 0.0 l/min 0.0m (00.0’) Dispense Dispense...

  • Page 34: X Halo Dispensers (Mounted Remotely)

    4 x Halo Dispensers (mounted remotely) Gravity Geed from Storage Reservoir (Flooded Suction) Max Distance 0.0m (00.0’) Max Flow Rate Max Flow Rate Max Distance 0.0 l/min 0.0 l/min 0.0m (00.0’) Dispense Dispense Max Distance 0.0m (00.0’) Max Flow Rate Max Flow Rate 0.0 l/min 0.0 l/min...

  • Page 35: Pressurized Feed - Halo Dispense Configurations

    12. PRESSURIZED FEED - HALO DISPENSE CONFIGURATIONS 1 x Halo Dispense (mounted remotely) Inlet Pressure between 1.0bar (14.7psi) and 2.0bar (29.0psi) (Recommended 1.0 bar) Max Distance 5.0m (16.0’) Max Flow Rate 2.0 l/min Dispense...

  • Page 36: X Halo Dispensers (1 X Integrated & 1 X Mounted Remotely)

    2 x Halo Dispensers (1 x integrated & 1 x mounted remotely) Inlet Pressure between 1.0bar (14.7psi) and 2.0bar (29.0psi) (Recommended 1.0 bar) Max Flow Rate 2.0 l/min Dispense Max Distance 5.0m (16.0’) Loop pressure in recirculation 1.0 bar (14.7psi) Max Flow Rate 2.0 l/min Dispense...

  • Page 37: Halo Dispensers (Mounted Remotely)

    2 Halo Dispensers (mounted remotely) Inlet Pressure between 1.0bar (14.7psi) and 2.0bar (29.0psi) (Recommended 1.0 bar) Max Distance Max Distance 5.0m (16.0’) 5.0m (16.0’) Max Flow Rate Max Flow Rate 2.0 l/min 2.0 l/min Dispense Dispense Loop pressure in recirculation 1.0 bar (14.7psi)

  • Page 38: Halo Dispensers (1 X Integrated & 2 X Mounted Remotely)

    3 Halo Dispensers (1 x integrated & 2 x mounted remotely) Inlet Pressure between 1.0bar (14.7psi) and 2.0bar (29.0psi) (Recommended 1.0 bar) Max Flow Rate 2.0 l/min Dispense Max Distance Max Distance 3.0m (10.0’) 3.0m (10.0’) Max Flow Rate Max Flow Rate 2.0 l/min 1.7 l/min Dispense...

  • Page 39: Halo Dispensers (Mounted Remotely)

    3 Halo Dispensers (mounted remotely) Inlet Pressure between 1.0bar (14.7psi) and 2.0bar (29.0psi) (Recommended 1.0 bar) Max Distance 3.0m (10.0’) Max Flow Rate Max Flow Rate Max Distance 2.0 l/min 1.7 l/min 3.0m (10.0’) Dispense Dispense Max Distance 3.0m (10.0’) Max Flow Rate 2.0 l/min Dispense...

  • Page 40: X Halo Dispensers (1 X Integrated & 3 X Mounted Remotely)

    4 x Halo Dispensers (1 x integrated & 3 x mounted remotely) Inlet Pressure between 1.0bar (14.7psi) and 2.0bar (29.0psi) (Recommended 1.0 bar) Max Flow Rate Max Distance 2.0 l/min 3.0m (10.0’) Dispense Max Flow Rate Max Flow Rate Max Distance 1.7 l/min 1.5 l/min 3.0m (10.0’)

  • Page 41: X Halo Dispensers (Mounted Remotely)

    4 x Halo Dispensers (mounted remotely) Inlet Pressure between 1.0bar (14.7psi) and 2.0bar (29.0psi) (Recommended 1.0 bar) Max Distance 3.0m (10.0’) Max Flow Rate Max Flow Rate Max Distance 1.7 l/min 2.0 l/min 3.0m (10.0’) Dispense Dispense Max Distance 3.0m (10.0’) Max Flow Rate Max Flow Rate 2.0 l/min...
  • Page 42 Technical Support ELGA LabWater Global Operations DDI: +44 (0)1494 887850 email: techsupport@elgalabwater.com Web: www.elgalabwater.com...
