Relio 4.2.x User Manual – 07/2015

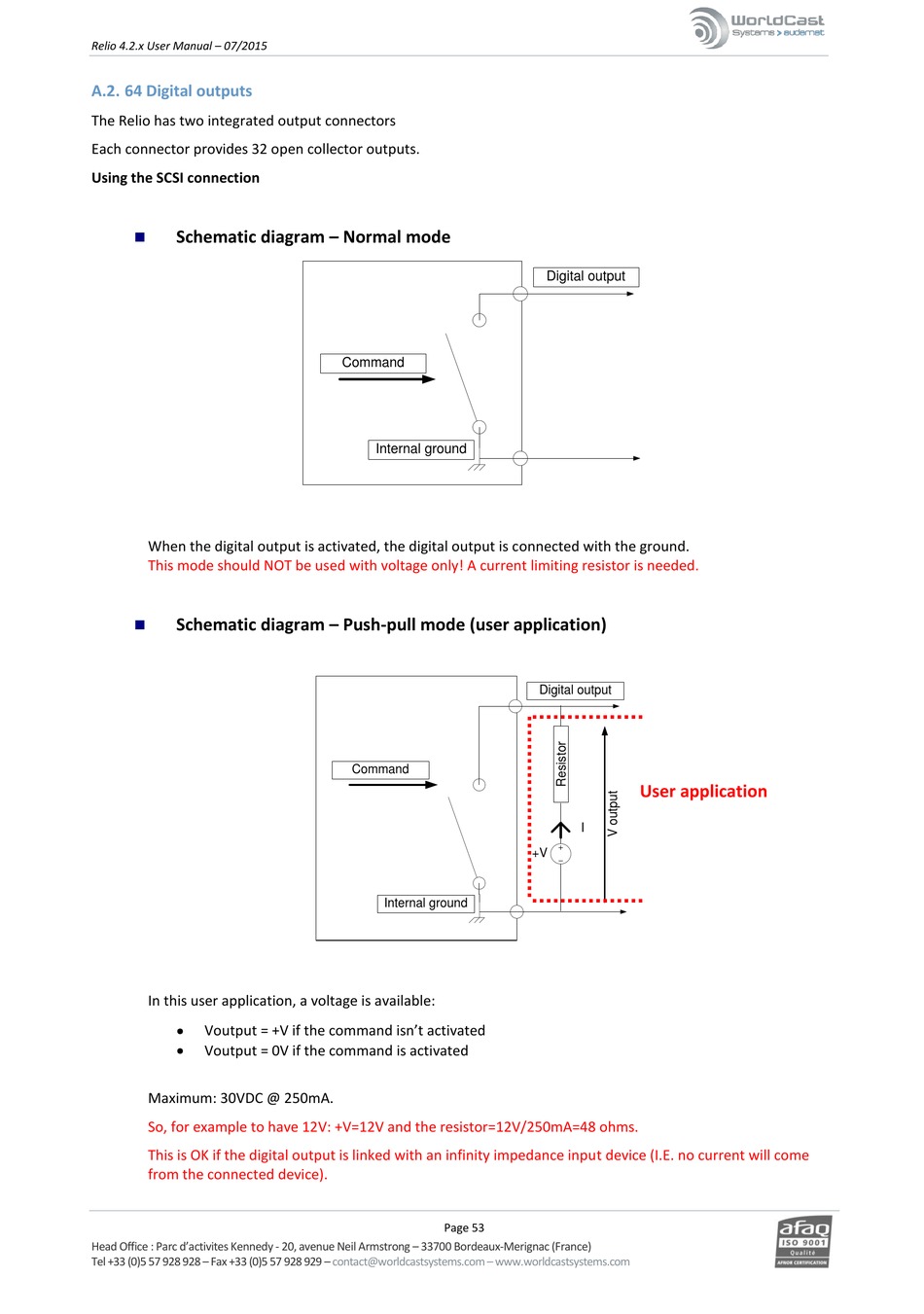

A.2. 64 Digital outputs
The Relio has two integrated output connectors
Each connector provides 32 open collector outputs.

Using the SCSI connection

 Schematic diagram – Normal mode
When the digital output is activated, the digital output is connected with the ground.
This mode should NOT be used with voltage only! A current limiting resistor is needed.
 Schematic diagram – Push-pull mode (user application)
In this user application, a voltage is available:
Voutput = +V if the command isn't activated
Voutput = 0V if the command is activated
Maximum: 30VDC @ 250mA.
So, for example to have 12V: +V=12V and the resistor=12V/250mA=48 ohms.
This is OK if the digital output is linked with an infinity impedance input device (I.E. no current will come
from the connected device).
Head Office : Parc d'activites Kennedy - 20, avenue Neil Armstrong – 33700 Bordeaux-Merignac (France)
Tel +33 (0)5 57 928 928 – Fax +33 (0)5 57 928 929 –
Command
Internal ground
Command
Internal ground
Page 53
contact@worldcastsystems.com – www.worldcastsystems.com
Digital output
Digital output
User application
I
+V
