Relio 4.2.x User Manual – 07/2015

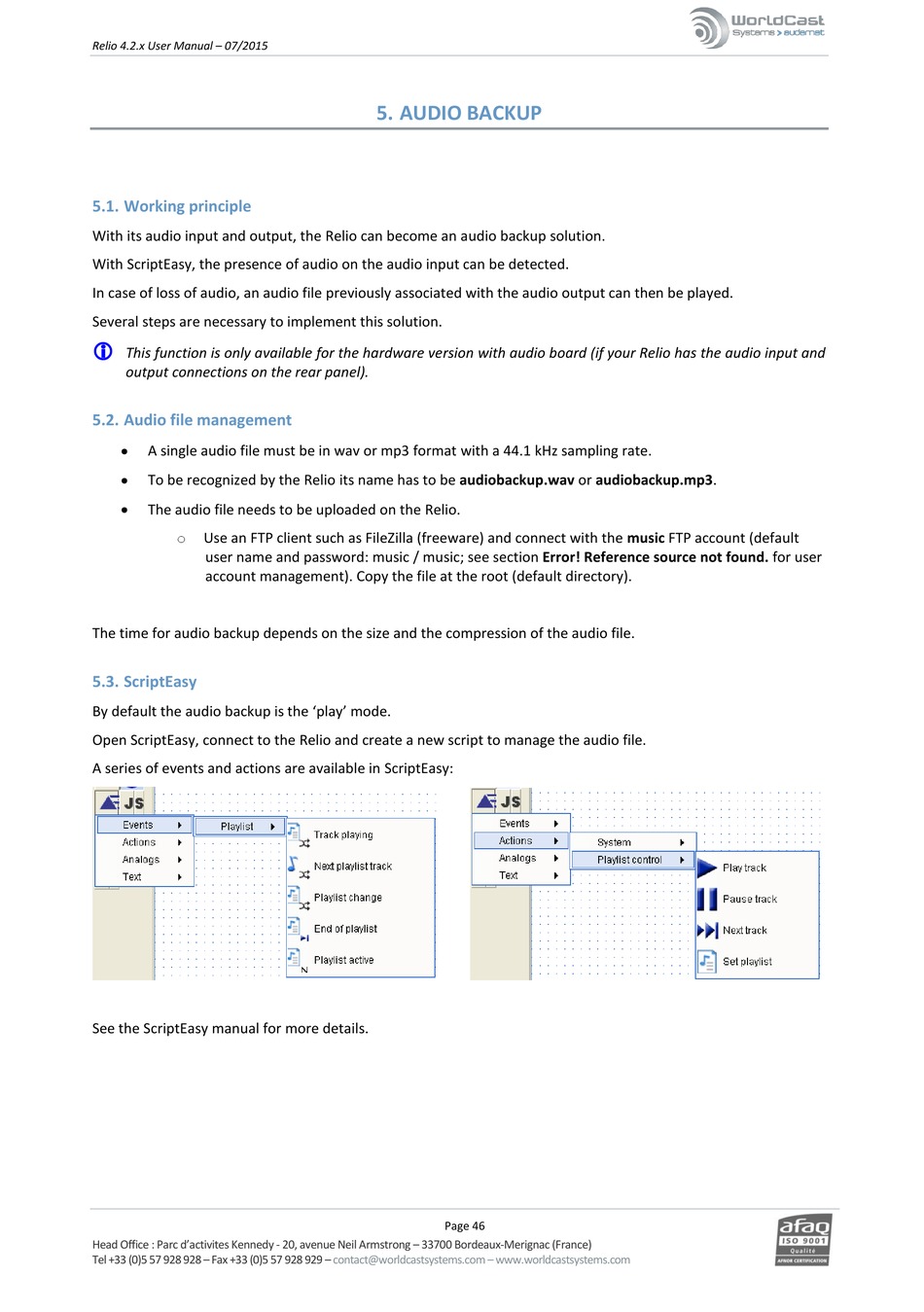

5.1. Working principle

With its audio input and output, the Relio can become an audio backup solution.
With ScriptEasy, the presence of audio on the audio input can be detected.
In case of loss of audio, an audio file previously associated with the audio output can then be played.
Several steps are necessary to implement this solution.

This function is only available for the hardware version with audio board (if your Relio has the audio input and
output connections on the rear panel).

5.2. Audio file management

A single audio file must be in wav or mp3 format with a 44.1 kHz sampling rate.
To be recognized by the Relio its name has to be audiobackup.wav or audiobackup.mp3.
The audio file needs to be uploaded on the Relio.
o
Use an FTP client such as FileZilla (freeware) and connect with the music FTP account (default
user name and password: music / music; see section Error! Reference source not found. for user
account management). Copy the file at the root (default directory).
The time for audio backup depends on the size and the compression of the audio file.

5.3. ScriptEasy

By default the audio backup is the 'play' mode.
Open ScriptEasy, connect to the Relio and create a new script to manage the audio file.
A series of events and actions are available in ScriptEasy:
See the ScriptEasy manual for more details.
Head Office : Parc d'activites Kennedy - 20, avenue Neil Armstrong – 33700 Bordeaux-Merignac (France)
Tel +33 (0)5 57 928 928 – Fax +33 (0)5 57 928 929 –

5. AUDIO BACKUP

Page 46
