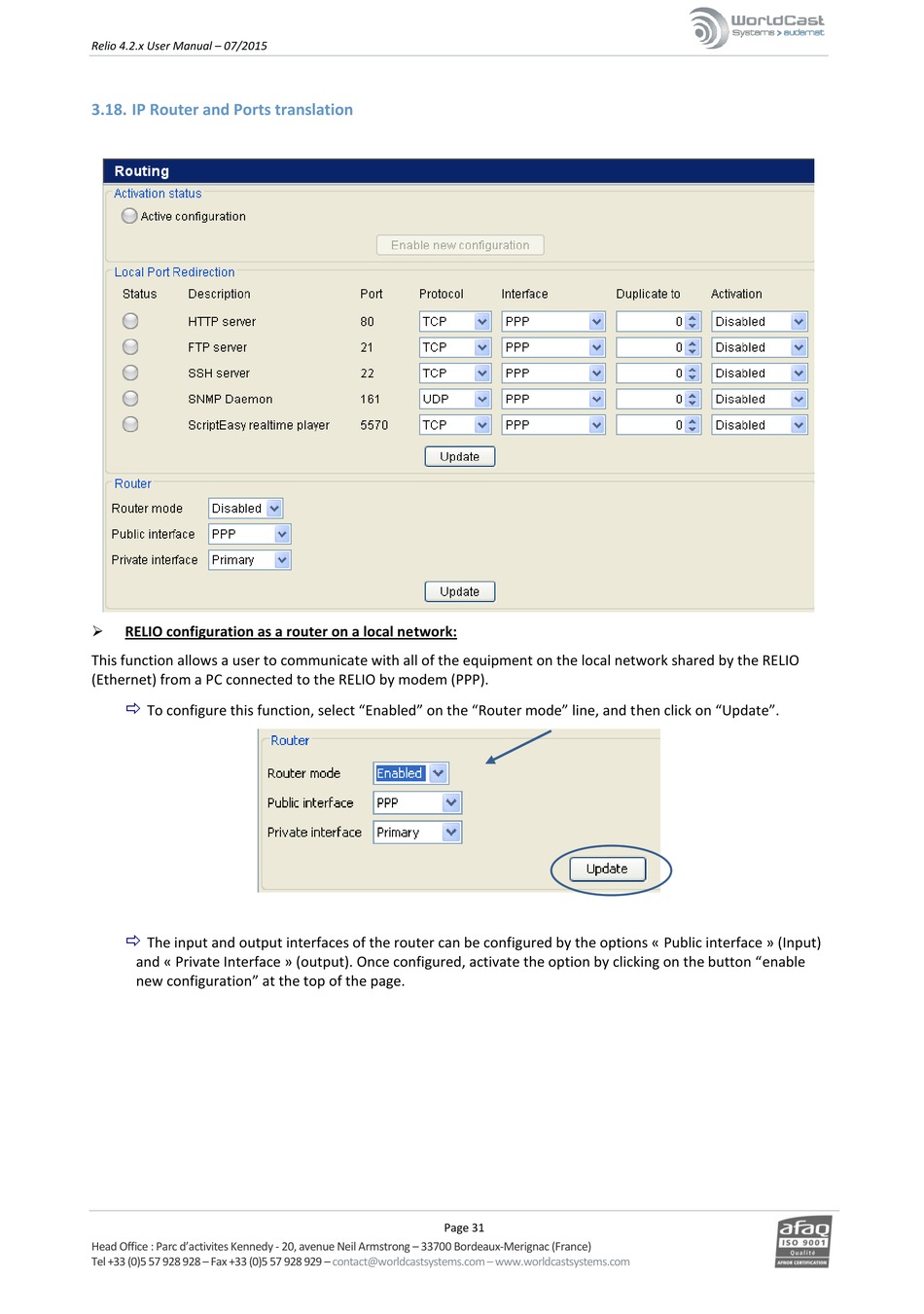

3.18. IP Router and Ports translation


RELIO configuration as a router on a local network:
This function allows a user to communicate with all of the equipment on the local network shared by the RELIO
(Ethernet) from a PC connected to the RELIO by modem (PPP).

To configure this function, select "Enabled" on the "Router mode" line, and then click on "Update".

The input and output interfaces of the router can be configured by the options « Public interface » (Input)
and « Private Interface » (output). Once configured, activate the option by clicking on the button "enable
new configuration" at the top of the page.
