TSL-H - LG110
TELESCOPIC SCREEN LIFT HEAVY

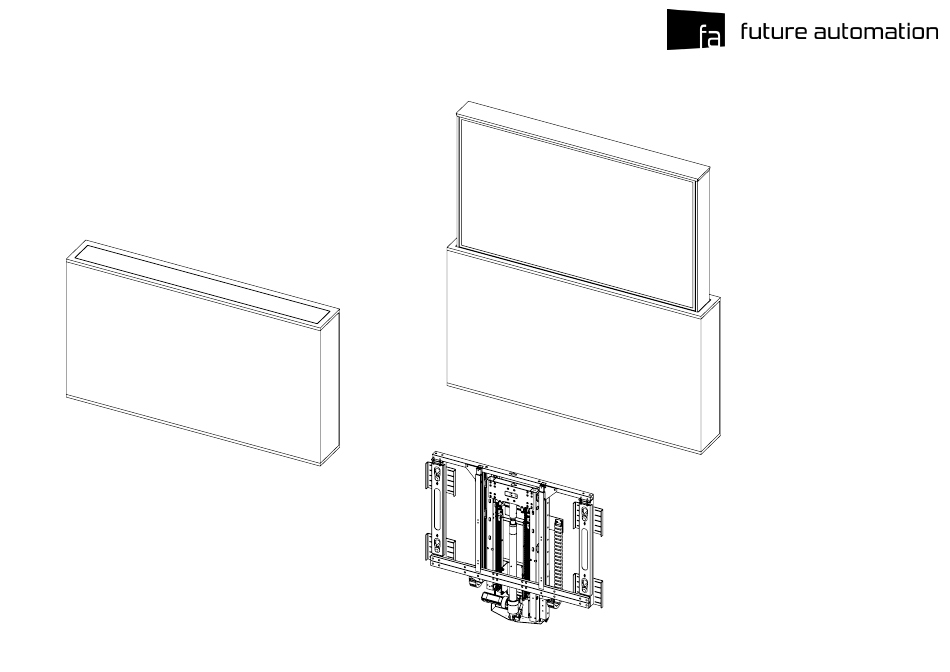

DOWN
WARNING
IMPORTANT
It is the responsibility of
Mechanisms which lift
the installer to warn all
or move weights need
potential end users of
to be checked on a
the dangers of interfering
yearly basis for any
with mechanisms during
damage which may
operation
result in an accident
UK +44 (0) 1438 833577 US +1 (603) 742 9181
FUTUREAUTOMATION
.
.
WWW
NET
UP
Maximum weight for this mechanism is a
screen weight of 80Kg [176lb] and an
enclosure weight of 120Kg [264lb].
Mechanism as
supplied.
TECHNICAL SHEET
FUNCTION
An electric mechanism to lift
a screen out of a cabinet.
Custom made to suit screen
size. Internal cabinet height
can be as little as screen
height + 40mm [1.6"].
SUITABILITY
This TSL has been sized for a
LG110UM5J-B screen.
Absolute maximum.
CONTROL
Supplied with basic infrared
remote. Can be learnt by
many learning remotes.
Also has switch control and
RS232 so can be operated by
relays, switches, Crestron /
AMX or Lutron systems.
ISSUE 001
SHEET 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TSL-H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Future Automation TSL-H

Summary of Contents for Future Automation TSL-H

  • Page 1 TSL-H - LG110 TELESCOPIC SCREEN LIFT HEAVY FUNCTION An electric mechanism to lift a screen out of a cabinet. Custom made to suit screen size. Internal cabinet height can be as little as screen height + 40mm [1.6"]. SUITABILITY This TSL has been sized for a DOWN LG110UM5J-B screen.
  • Page 2 TSL-H - LG110 TELESCOPIC SCREEN LIFT HEAVY LID and ENCLOSURE - To be made by others. Total allowable weight for all timber work and lid is 120Kg [264lb]. The lid must be easily removed if the mechanism was stuck in the down position.
  • Page 3 TSL-H - LG110 TELESCOPIC SCREEN LIFT HEAVY 3 7/8" 99.10 Screen DOWN Depth 55 7/16" 1408 DETAIL C Screen SCALE 1 : 4 Height 97 3/8" 2474 Screen Width 13/16" Enclosure 3/16" Thickness 12" 305.50 9 1/4" Enclosure 2 3/4"...
  • Page 4 TSL-H - LG110 TELESCOPIC SCREEN LIFT HEAVY DETAIL E SCALE 1 : 3 13/16" Enclosure Thickness Enclosure 56 5/8" 1/4" 1438 Rebate in Enclosure 1/2" Trim Panel Thickness 1/8" Trim Panel 3.50 Screen signal and power cables enter cable tracks...

  • Page 5: Enclosure Design

    TSL-H - LG110 TELESCOPIC SCREEN LIFT HEAVY Lid must lift off easily Block or detail to locate lid ENCLOSURE DESIGN 13/16" 99 3/8" 2524 55 13/16" 1418 IMPORTANT 50 1/2" Mount Plate The Enclosure, Lid and the 1283 Trim panel must weigh no more than 120Kg [264lb].

  • Page 6: Install Instructions

    TSL-H - LG110 TELESCOPIC SCREEN LIFT HEAVY INSTALL INSTRUCTIONS Remove Screen Upright Fixings • Check that the cabinet, enclosure, lid and the trim panel are made to the details shown on the previous pages. Remove Screen Upright Fixings • You can stand the mechanism up on its base to test it before putting in the cabinet.
