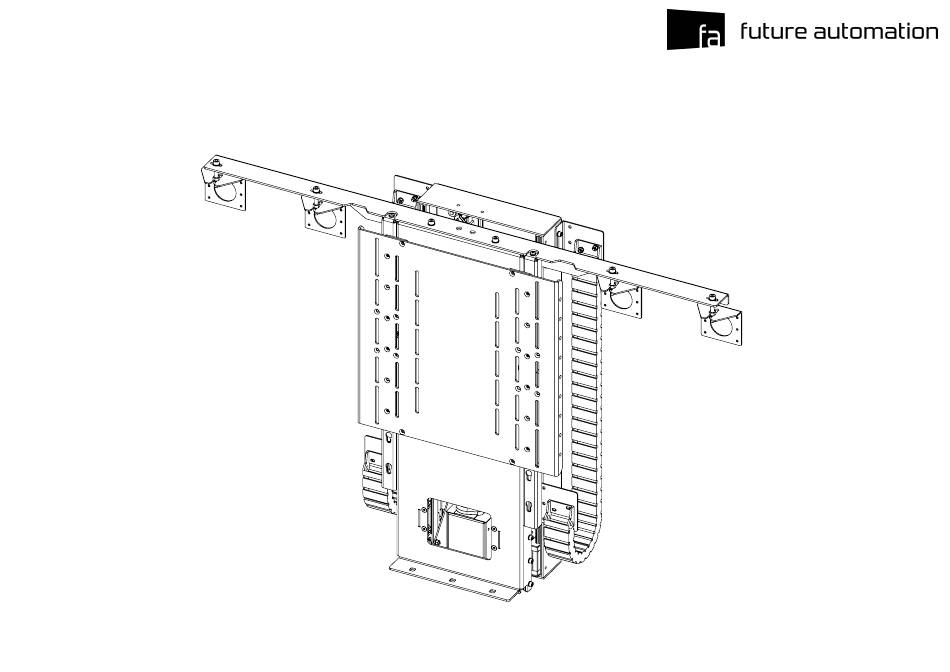

TSLM-MO-3
MARINE OUTDOOR TELESCOPIC SCREEN LIFT
TECHNICAL SHEET
UK +44 (0) 1438 833577 US +1 (603) 742 9181
ISSUE 003
FUTUREAUTOMATION
SHEET 1
.
.
WWW
NET

Advertisement

loading
Need help?

Need help?

Do you have a question about the TSLM-MO-3 and is the answer not in the manual?

Questions and answers

Related Manuals for Future Automation TSLM-MO-3

Summary of Contents for Future Automation TSLM-MO-3

  • Page 1 TSLM-MO-3 MARINE OUTDOOR TELESCOPIC SCREEN LIFT TECHNICAL SHEET UK +44 (0) 1438 833577 US +1 (603) 742 9181 ISSUE 003 FUTUREAUTOMATION SHEET 1...

  • Page 2: Specification

    TSLM-MO-3 MARINE OUTDOOR TELESCOPIC SCREEN LIFT SPECIFICATION MEASUREMENTS Product Dimensions 892mm (35 1/8") x 1280mm (50 3/8") x 240mm (9 7/16") Minimum Screen Height 850mm (33 7/16") Maximum Screen Height 1175mm (46 1/4") Minimum Screen Width 1280mm (50 3/8") - (Lower Width option available apon request)

  • Page 3: General Information

    TSLM-MO-3 MARINE OUTDOOR TELESCOPIC SCREEN LIFT GENERAL INFORMATION VESA 400 wide mounting LID and ENCLOSURE - To be made by pattern covered. Brackets others. Total allowable weight for all have full height adjustment . timber work and the screen 75Kg.
  • Page 4 TSLM-MO-3 MARINE OUTDOOR TELESCOPIC SCREEN LIFT CABINET SIZING All sizing calculations are based off a 20mm [0.79"] box enclosure panel thickness. Any increases in Internal Cabinet Depth = Screen Depth + 230 [9 1/16"] this thickness will increase the required space.
  • Page 5 TSLM-MO-3 MARINE OUTDOOR TELESCOPIC SCREEN LIFT BOX ENCLOSURE DETAILING 13/16" The Screen, Enclosure, Lid and the Trim Lid Thickness panel must weigh no more than 75Kg. Blocks to locate lid. Optional ventilation Fixing Brackets 25 3/16" 44 7/8" 1140 31 7/8"...

  • Page 6: Install Instructions

    TSLM-MO-3 MARINE OUTDOOR TELESCOPIC SCREEN LIFT INSTALL INSTRUCTIONS Mount fixing bolts Check that the cabinet, enclosure, lid and the trim panel are made to the details shown on the previous pages. • You can stand the mechanism up on its base to test it before putting in the cabinet.
  • Page 7 TSLM-MO-3 MARINE OUTDOOR TELESCOPIC SCREEN LIFT 9 1/4" 5 1/16" 6 11/16" 169.6 1/16" R2.25 POWER SUPPLY UNIT INPUT = 110V (6A) OR 240V (3A) AC MAINS OUTPUT = 24V DC, 21A FUTURE AUTOMATION UDC3 CONTROL BOARD 9 7/8" 251.5...
