CT1 / CT2
Ceiling Tilt Mechanism
Installation Instructions
Issue 001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Future Automation CT1

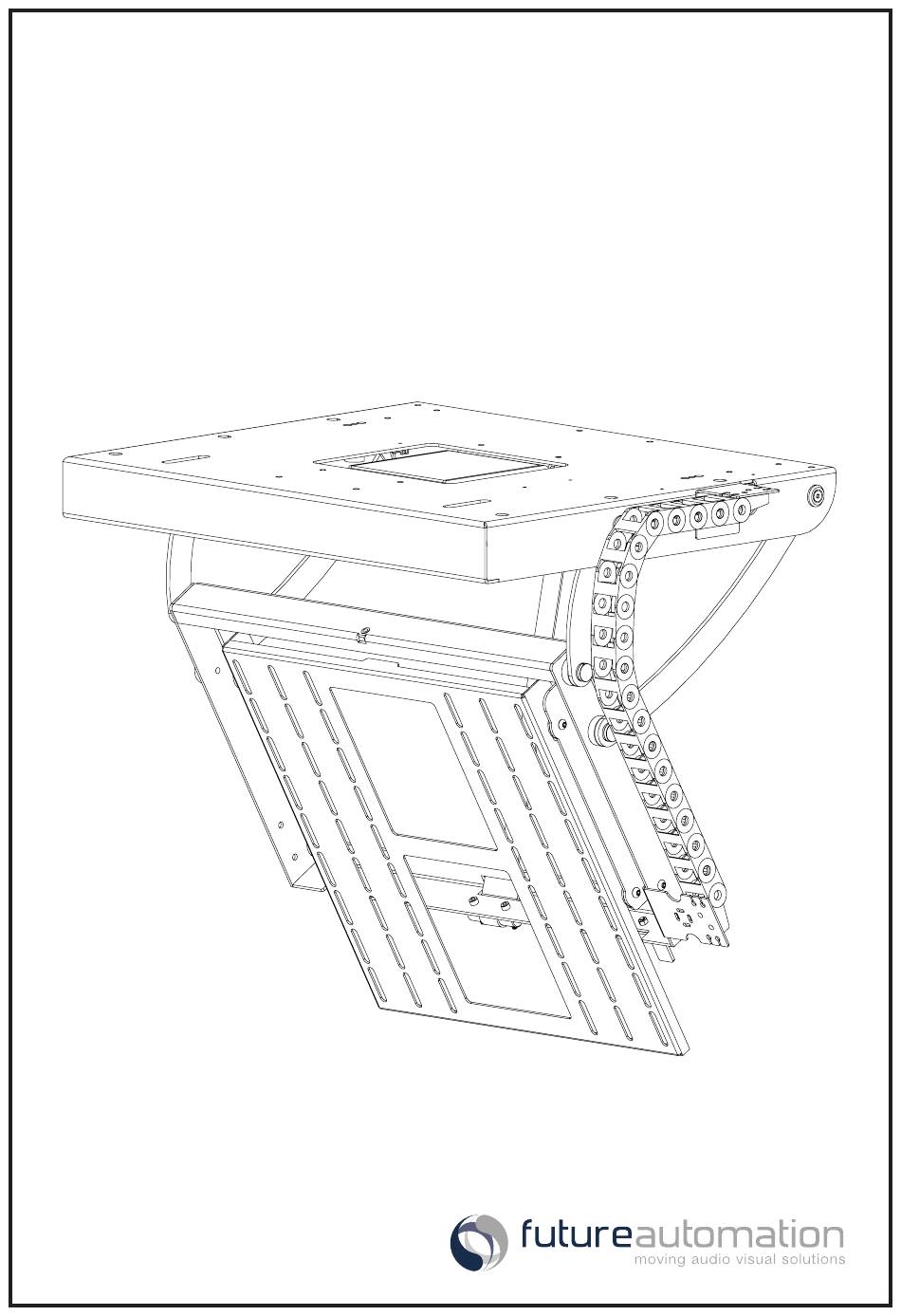

  • Page 1 CT1 / CT2 Ceiling Tilt Mechanism Installation Instructions Issue 001...
  • Page 2: Safety Disclaimer

    Clean only with a dry cloth and always unplug any electrical items being used in conjunction with this product before cleaning. Future Sound & Vision trading as Future Automation intend to make this and all documentation as accurate as possible. However, Future Automation makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product.
  • Page 3: Table Of Contents

    4 - Fitting The Screen 5 - Switch Adjustments Mechanism Control 1 - General 2 - Infrared (IR) Operation 3 - Contact Closure Operation 4 - RS232 Operation Contact Information Page 3 of 15 // Installation Instructions - CT1 / CT2...
  • Page 4: Package Contents

    4.1 - x2 AAA Batteries 4.2 - Mains Power Lead 4.3 - Infra-Red Control Lead 4.5 - CAT5 Lead with RJ45 Connector 4.6 - Screen Fixings Pack (Multi-pack of Nuts, Bolts and Washers) Page 4 of 15 // Installation Instructions - CT1 / CT2...
  • Page 5: Product Warranty

    • Compensation for loss of use of the product, and consequential loss of any kind. Any part of your system that needs to be replaced during a warranty repair becomes the property of Future Automation. Customer Support - Contact Details...
  • Page 6: Installation Instructions

    THE MOTOR DRIVE SYSTEM WILL CONTINUE TO MOVE UNTIL A LIMIT SWITCH IS CONTACTED. KEEP HANDS AND ANY OBJECTS CLEAR OF MECHANISM DURING OPERATION TO REDUCE RISK OF DAMAGE OR INJURY. Fully Closed Position Fully Open Position Page 6 of 15 // Installation Instructions - CT1 / CT2...
  • Page 7: Screen Mount Removal

    2. Lift the Screen Mount up and off of the CT mechanism. NOTE: The Locking Bolt MUST be accessible in any installation. This is to enable the screen to removed in the event of a power cut or malfunction. Page 7 of 15 // Installation Instructions - CT1 / CT2...
  • Page 8: Ceiling Mounting The Mechanism

    3. Route all power and signal cables carefully through the cable management, making sure they are clear of any moving parts of the mechanism. Also ensure enough slack is left for mechanism movement. All cables should exit/ enter ceiling at the base of the cable track. Page 8 of 15 // Installation Instructions - CT1 / CT2...
  • Page 9: Fitting The Screen

    NOTE: For larger screens or screens with very low mounting holes, a Vertical Offset Adapter may be required. NOTE: Screens that do not have standard VESA bolt patterns may require an adapter plate. Maximum Distance = 140mm [ 5.5"]. Page 9 of 15 // Installation Instructions - CT1 / CT2...
  • Page 10: Switch Adjustments

    3. To adjust the mechanism OPEN position, rotate adjuster 2 CLOCKWISE to RAISE, or ANT-CLOCKWISE to LOWER the OPEN position. ADJUSTER 2 DOWN Limit ADJUSTER 1 UP Limit UP Switch Page 10 of 15 // Installation Instructions - CT1 / CT2...
  • Page 11: Mechanism Control

    Replacing Mechanism Batteries The standard Future Automation Infrared (IR) remote control required x2 AAA batteries to operate. These are provided with the mechanism in the Accessories Pack. These batteries can be replaced as the per the image below.
  • Page 12: Infrared (Ir) Operation

    STOP - Will stop the operation of the mechanism at ANY position. IMPORTANT Only buttons indicated above are functional with the product. Any other button press will STOP the mechanism. Page 12 of 15 // Installation Instructions - CT1 / CT2...
  • Page 13: Contact Closure Operation

    LED 1 LED 1 LED 2 LED 2 LED 3 LED 3 LED 4 LED 4 LED 5 LED 5 (NOT USED) Contact Closure Input Port Contact Closure Input Table Page 13 of 15 // Installation Instructions - CT1 / CT2...
  • Page 14: Rs232 Operation

    Carriage Return (Enter / ASCII 13) Device IN fa_out Carriage Return (Enter / ASCII 13) Device OUT fa_stop Carriage Return (Enter / ASCII 13) Device STOP (At any position) Page 14 of 15 // Installation Instructions - CT1 / CT2...
  • Page 15: Contact Information

    Email: info@futureautomation.net Office Hours: Office Hours: Mon - Fri 8:00 to 17:30 GMT Mon - Fri 7:00 to 17:00 EST Saturday & Sunday - Closed Saturday & Sunday - Closed Page 15 of 15 // Installation Instructions - CT1 / CT2...
