Federal Signal Corporation SIGNALMASTER SMLED1-01 Instruction Sheet

SAFETY MESSAGE TO INSTALLERS

People's lives depend on your safe installation of our products.
It is important to read, understand and follow all instructions
shipped with the products. In addition, listed below are some other
important safety instructions and precautions you should follow:
• To properly install this light: you must have a good
understanding of automotive electrical procedures
and systems, along with proficiency in the installa-
tion and use of safety warning equipment.
• When drilling into a vehicle structure, be sure that
both sides of the surface are clear of anything that
could be damaged.
• In order for the light to function properly, a separate
ground connection must be made. If practical, it
should be connected to the negative battery
terminal. At a minimum, it may be attached to a
solid metal body or chassis part that will provide an
effective ground path as long as the light system is
to be used.
• Locate light control so the VEHICLE and CON-
TROL can be operated safely under all driving
conditions.
• Do not attempt to activate or deactivate light control
while driving in a hazardous situation.
• This product contains high intensity LED devices. To
prevent eye damage, DO NOT stare into the light
beam at close range.
• You should frequently inspect the light to ensure
that it is operating properly and that it is securely
attached to the vehicle.
• File these instructions in a safe place and refer to
them when maintaining and/or reinstalling the
product.
Failure to follow all safety precautions and instructions may
result in property damage, serious injury, or death to you or others.
A.

GENERAL.

The Federal SignalMaster™ Model SMLED1 is an economi-
cal, low wattage, directional light designed to be used in a flashing
or steady burning mode. Lens colors (amber, red, blue, or clear) are
specified when ordering.
B.

UNPACKING.

After unpacking the light, inspect it for damage that may
have occurred in transit. If the unit has been damaged, do not
attempt to install or operate it. File a claim immediately with the
carrier, stating the extent of damage. Carefully check all enve-
lopes, shipping labels, and tags before removing or destroying
them. Ensure that the parts listed in the appropriate KIT
CONTENTS LIST are included in the package.
C.

KIT CONTENTS LIST.

Qty. Description
2 Screw, Hex Hd., 1/4 x 1/2
3 Screw, Hex Hd., 1/4 x 5/8
2 Lockwasher
1 Bracket
INSTRUCTION SHEET
FOR
SIGNALMASTER™ MODEL SMLED1-01
D.
and screws. Determine the mounting position appropriate for the
installation, and then select the applicable mounting method.
and scribe mounting hole position marks on the mounting surface.
Part No.
7011164-08
7011165-10
7075078
8573040-03
WARNING
These lights are intended for secondary warning only.
They are not intended for use as a primary warning
system.

INSTALLATION.

WARNING
When installing equipment inside air bag equipped
vehicles, the installer MUST ensure that the equipment
is installed ONLY in areas recommended by the vehicle
manufacturer.
Failure to observe this warning will reduce the effective-
ness of the air bag, damage the air bag, or potentially
damage or dislodge the equipment, causing serious injury
or death to you or others.
For maximum coverage and effectiveness, the light
assembly should be mounted in a horizontal orientation.
Installation can be accomplished using the supplied bracket(s)
1. See figure 1. Use the mounting bracket(s) as a template
CAUTION
Before drilling holes in ANY part of a vehicle, be sure
that both sides of the mounting surface are clear of parts
that could be damaged; such as brake lines, fuel lines,
Electrical wiring or other vital parts.

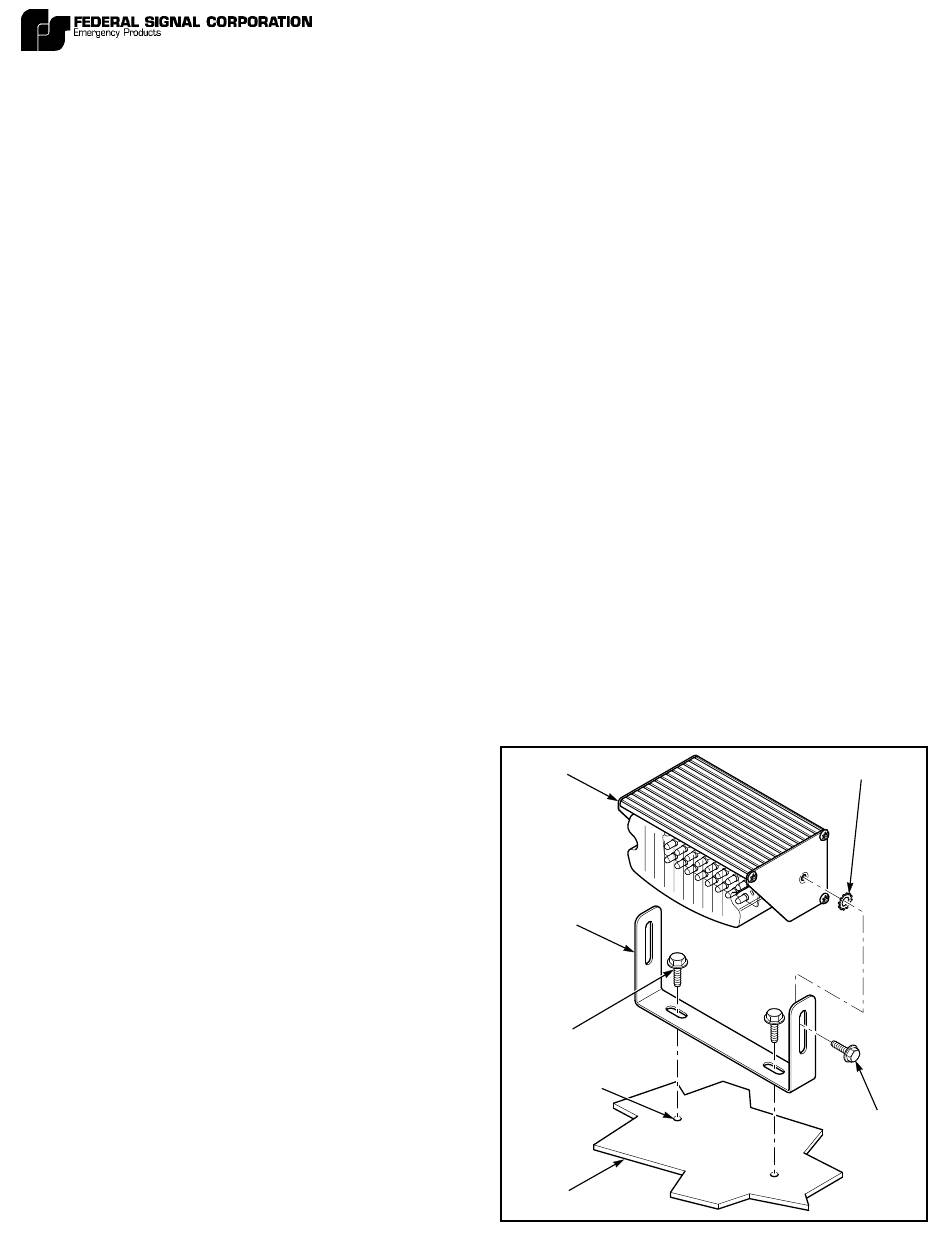

SMLED1 LIGHT
ASSEMBLY
BAIL
BRACKET (1)
1/4 x 5/8"
SCREWS,
TYPE B, HEX
WSHR. HD. (2)
DRILL REQUIRED
HOLES
MOUNTING
SURFACE
REV. C 500
Printed in U.S.A.
NOTE
1/4" EXTERNAL TOOTH
LOCKWASHERS (2)
1/4-20 x 1/2"
SCREWS,
TYPE TT, HEX
WSHR. HD. (2)
290A3984
Figure 1.
2561598C
