Federal Signal Corporation TCLF2 Installation And Wiring Instructions

A. GENERAL.
Model TCLF2 Retrofit Kit allows easy installa-
tion of the traffic clearing light option in place of the
inboard rotating light mechanism on all Federal
StreetHawk® Light Assemblies. If two traffic clear-
ing light assemblies are desired, a second retrofit kit
must be purchased.
Before attempting installation, insure that the
parts shown in the KIT CONTENTS LIST (para-
graph G.) have been supplied.

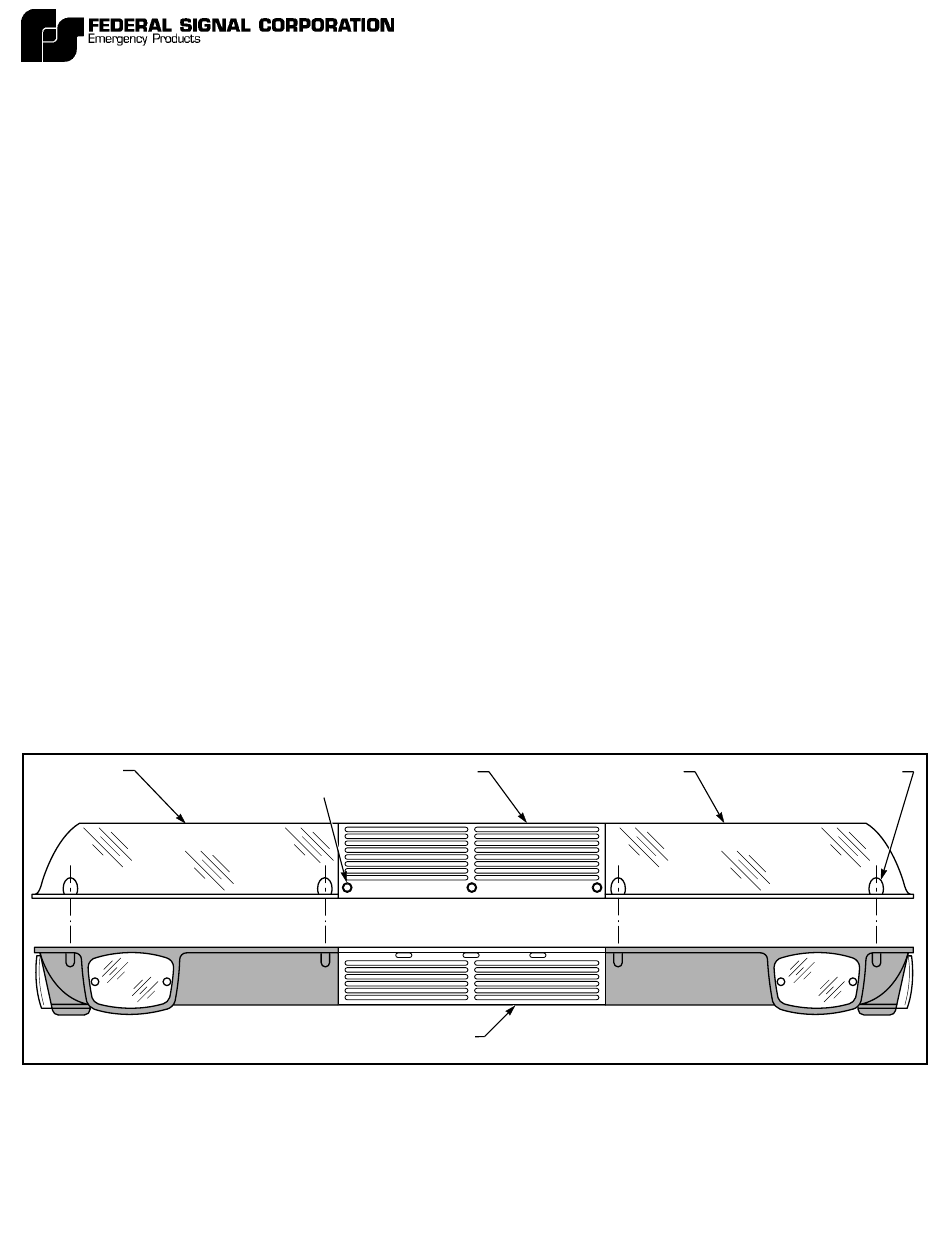

B. DOME AND GRILLE REMOVAL
(See figure 1).
1. Turn-off power to Light Assembly.
2. Remove the three (3) #10 hex washer head
thread-forming screws which secure the upper
speaker grille to the lower speaker grille. Lift upper
grille away from lower grille.
3. Remove the eight (four on each side) #8-32 x
7/8 hex head screws from the front and rear edges of
the dome.
DOME
INSTALLATION AND WIRING INSTRUCTIONS
MODEL TCLF2 TRAFFIC CLEARING LIGHT
RETROFIT KIT
UPPER GRILLE
#10 TYPE "B" HEX HEAD
SCREW, THD. FORMING (3)
LOWER GRILLE
FOR
4. Carefully remove the domes. Ensure that the
bulkhead gasket remains tucked in its groove.
To avoid electrical shock, disconnect the
power cable before performing the installa-
tion procedure.
C. INSTALLATION ON NON-STROBE
UNITS.
To install the traffic clearing light retrofit kit on
a Federal StreetHawk Light Assembly without strobe
lights, proceed as follows:
1. Remove the driver's side inboard rotating light
mechanism by removing the three (3) screws which
secure the mechanism to the base.
2. Remove the stationary mirror assembly by
removing the screw which secures it to the base.
3. Disconnect the black motor wire at the ground
screw.
Figure 1.
-1-
Printed in U.S.A.
WARNING
DOME 8-32 x 7/8" HEX HD. SCREWS(8)
(4 ON EACH DOME SECTION)
256A650C
REV. C 299
290A2067B
