Summary of Contents for Federal Signal Corporation LEDTCL64

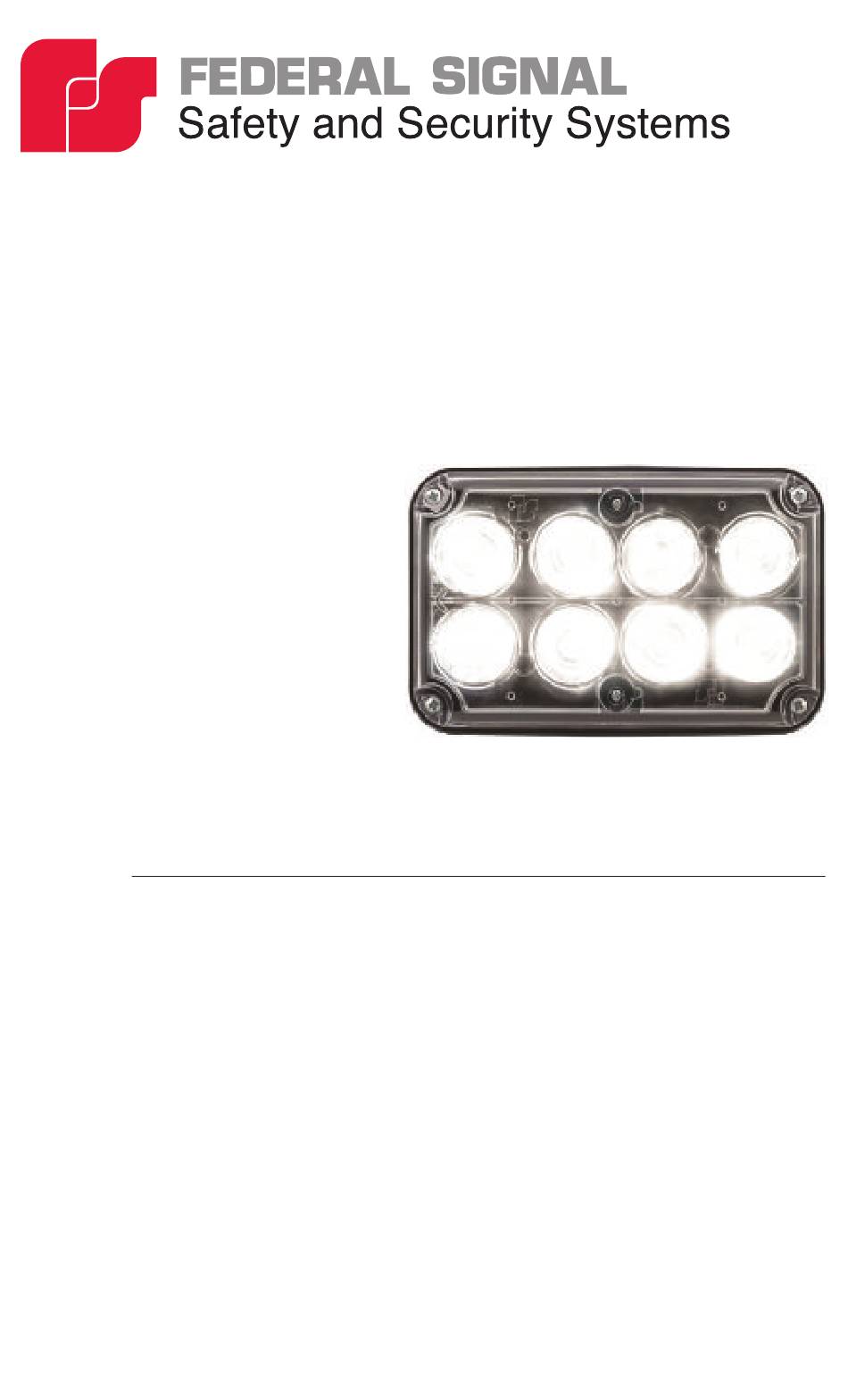

- Page 1 LED Traffic Clearing Light Model LEDTCL64 Installation and Service Instructions 25500467 A Rev. A1 0918 Printed in U.S.A.
- Page 2 A copy of this limited warranty can also be obtained by written request to Federal Signal Corporation, 2645 Federal Signal Drive, University Park, IL 60484, email to info@fedsig.com or call +1 708-534-3400.
-
Page 3: Table Of Contents
Table 1 Product Specifications ..........5 Table 2 Kit Contents List ............5 Table 3 Wire Functions ............6 Table 4 Flash Patterns .............7 List of Figures Figure 1 Exploded View of the Light ........9 Figure 2 Mounting Surface Dimensions.........10 LED Traffic Clearing Light Model LEDTCL64... -
Page 4: Safety Message To Installers
• File these instructions in a safe place and refer to them when maintaining and/or reinstalling the product. Failure to follow all safety precautions and instructions may resulting property damage, serious injury, or death. LED Traffic Clearing Light Model LEDTCL64... -
Page 5: Overview Of Led Traffic Clearing Light Model Ledtcl64
Model LEDTCL64 The Federal Signal LED Traffic Clearing Light, Model LEDTCL64 is a self-contained, high intensity LED light designed for mounting to the exterior of a vehicle. The lights are supplied with eight selectable flash patterns. The light heads work as a pair and are synced together by connecting their sync wires. -
Page 6: Installing The Lights
Each light head has three 12 in long lead wires exiting the rear of the housing. Ensure that all wires are properly terminated and insulated. Table 3 Wire Functions +12/24 Vdc Black – Ground Green Pattern Select/Sync LED Traffic Clearing Light Model LEDTCL64... -
Page 7: Selecting A Flash Pattern
Accelerometer Test NOTE: Patterns 9 and 10 are for diagnostic purposes. Pattern 9 illuminates each LED one at a time. Pattern 10 illuminates one LED based on the vertical orientation of the light head. LED Traffic Clearing Light Model LEDTCL64... -
Page 8: Safety Message To Operators
• At the start of your shift, you should ensure that the light is securely attached and operating properly. Failure to follow these safety precautions may result in property damage, serious injury, or death. LED Traffic Clearing Light Model LEDTCL64... -
Page 9: Figure 1 Exploded View Of The Light
Installation and Maintenance Instructions Figure 1 Exploded view of the light LED Traffic Clearing Light Model LEDTCL64... -
Page 10: Figure 2 Mounting Surface Dimensions
Installation and Maintenance Instructions Figure 2 Mounting Surface Dimensions 5.75 in (2X) 2.88 in (2X) Ø 0.25 in (4) Ø 1.00 in PLACES 1.63 in (2X) 3.25 in (2X) LED Traffic Clearing Light Model LEDTCL64... -
Page 11: Cleaning The Lights
Manufacturer’s Representative. Provided a brief explanation of the service requested or the nature of the malfunction. Address all communications to the following address. Federal Signal Corporation Service Department 2645 Federal Signal Drive University Park IL 60484-3167 LED Traffic Clearing Light Model LEDTCL64... -
Page 12: Replacement Parts
Installation and Maintenance Instructions Replacement Parts Table 5 Replacement parts Description Part Number Mounting Screws, #6 x 1-1/2 in 7000A404-26 Rubber Rivet Nut, #6-32 70900417 Lens, Smooth, Clear 801200983-02 Optional Chrome Bezel w/Gasket QL64MC LED Traffic Clearing Light Model LEDTCL64...
