The following settings are common to both application drivers.
Setting Description
Description Shows a description of the device being configured. This is only for your information and does not affect
the operation of the device.
Location Displays the location of the device being configured. This is only for your information and does not affect
the operation of the device.
Device ID Gives the ID number of the device being configured, which is used to identify the device when you are
connecting to it. By default, this number is the last five digits of the serial number, which can be found
under the About tab or on the barcode sticker on the bottom of the device. It is recommended that you
do not change this number unless another device on the network has the same ID number.
Baud Rate
Allows you to change the baud rate at which the device connects to the sensor.
IP Address
Lets you view and change the IP address currently assigned to the device. Each Click 301 defaults to an
IP address of 172.16.0.13.
IP Port
Lets you view and change the IP port currently assigned to the device. Each Click 301 defaults to 10001.
In addition to the common settings, the Point to Point driver has the following settings:
Setting Description
Remote IP
Allows you to enter the IP address of the Click 301 that you want the device you're configuring to connect
to. Each Click 301 defaults to a remote IP address of 172.16.0.14.
Remote Port
Allows you to enter the IP port of the Click 301 that you want the device you're configuring to connect to.
Each Click 301 defaults to a remote port of 10001.

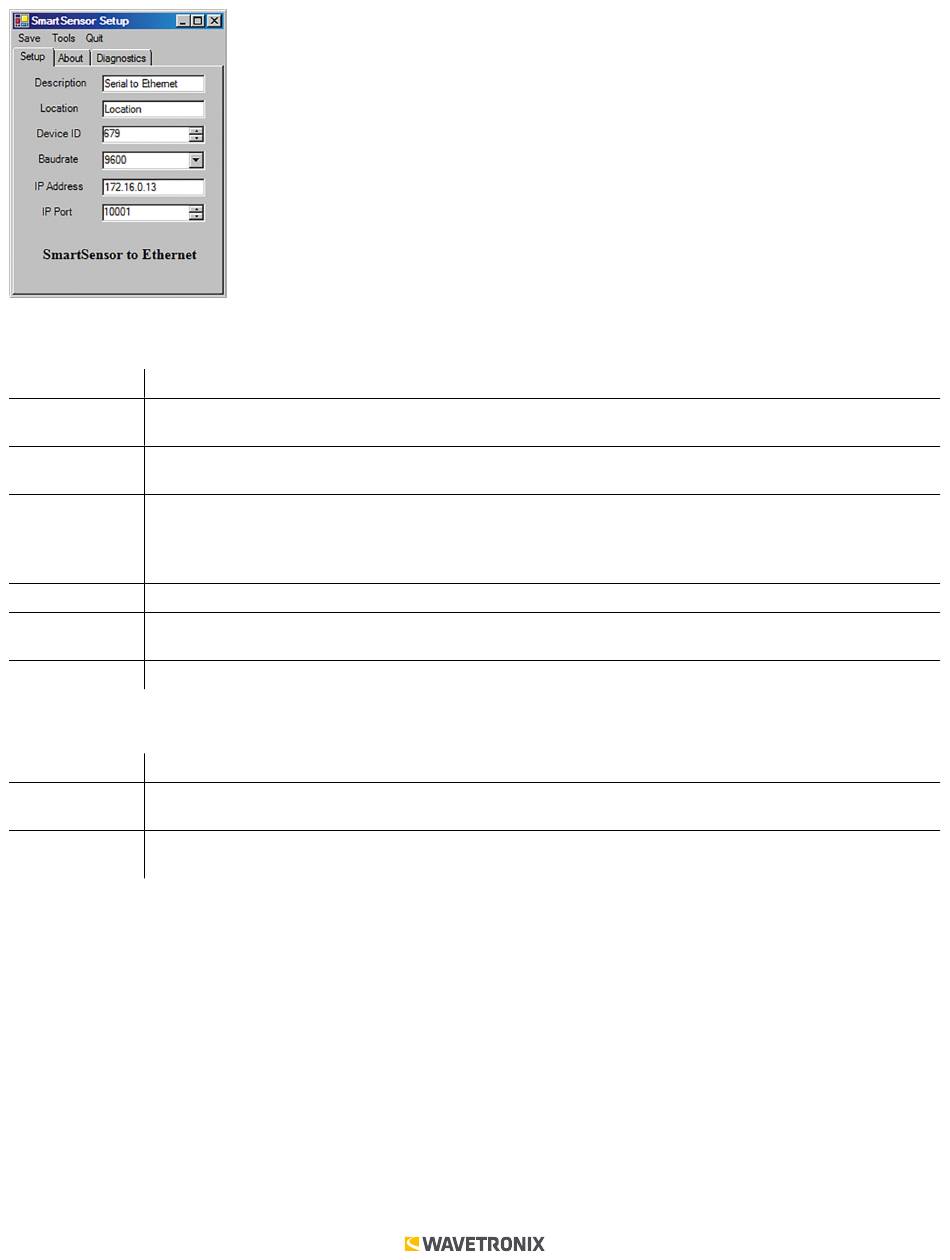

Under the About tab, you can view information about your Click 301 (see the figure and table below).
