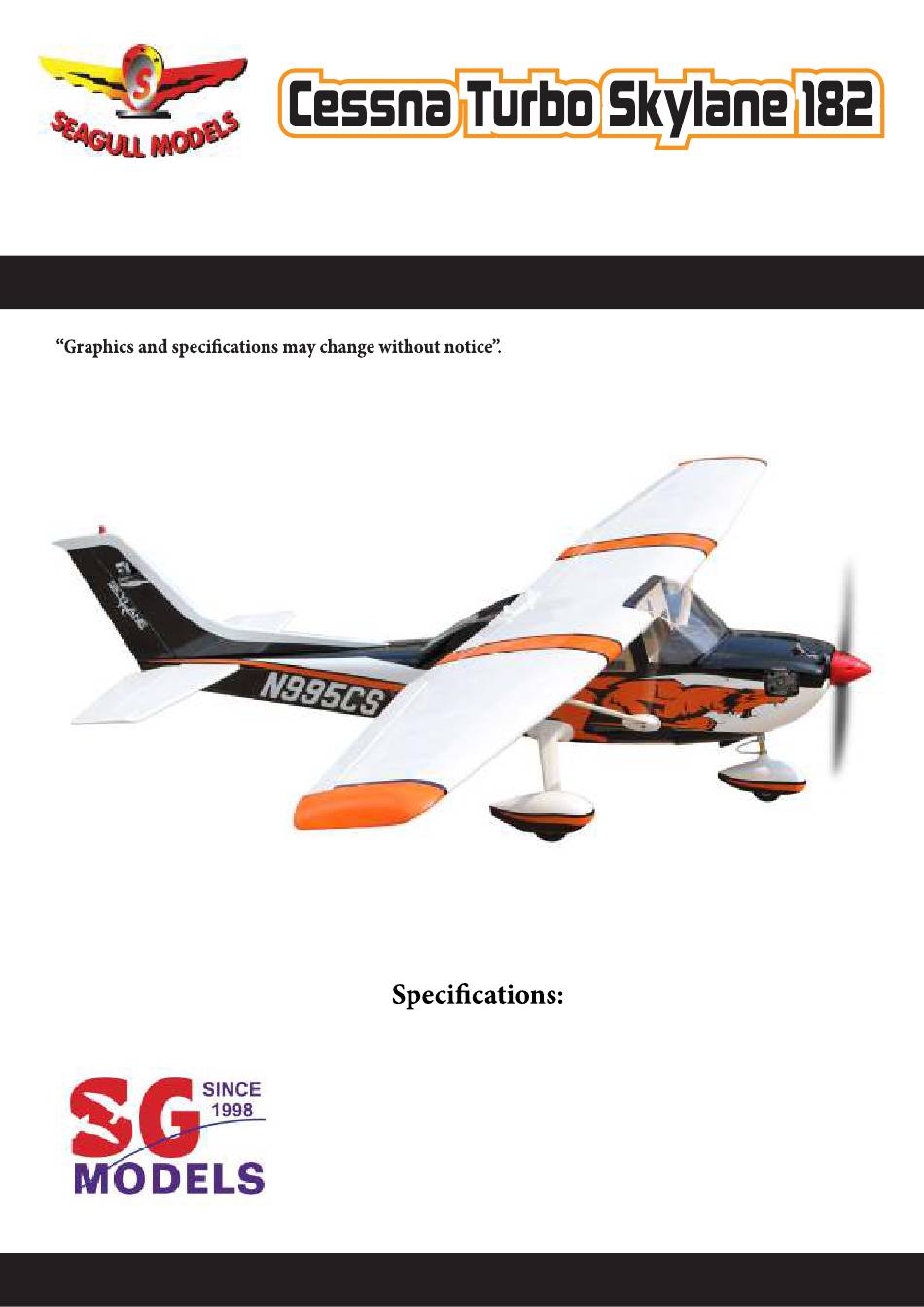

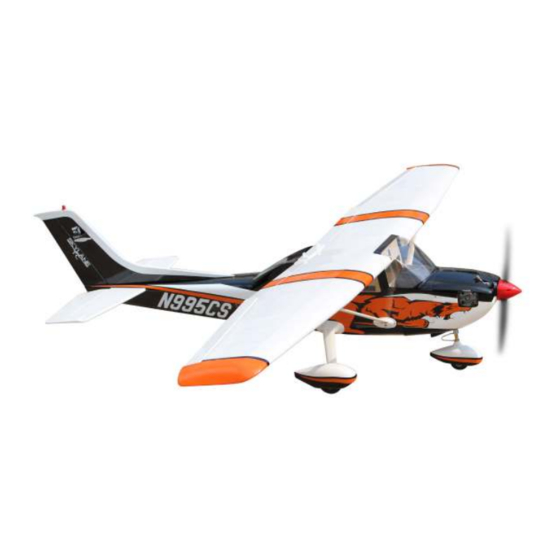

Code : SEA 327
ASSEMBLY MANUAL
Wingspan--------------- 69 in (174.5 cm)
Overall Length--------- 49.1 in (124.8 cm)
Wing Arena------------- 612.3 sq.in (39.5 dm²)
Flying Weight---------- 3.3 kg (7.3 lbs)
Engine Size------------- 46-55 (2-stroke) 52-62 (4-stroke)
10cc (Gas)
Radio-------------------- 5 channels with 7 servos
Motor .35-.45 size 830 rev per volt/ ESC 50A/ Lipo 4s 3200mA
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cessna Turbo Skylane 182 and is the answer not in the manual?

Questions and answers

Related Manuals for Seagull Models Cessna Turbo Skylane 182

Summary of Contents for Seagull Models Cessna Turbo Skylane 182

  • Page 1 Code : SEA 327 ASSEMBLY MANUAL Wingspan--------------- 69 in (174.5 cm) Overall Length--------- 49.1 in (124.8 cm) Wing Arena------------- 612.3 sq.in (39.5 dm²) Flying Weight---------- 3.3 kg (7.3 lbs) Engine Size------------- 46-55 (2-stroke) 52-62 (4-stroke) 10cc (Gas) Radio-------------------- 5 channels with 7 servos Motor .35-.45 size 830 rev per volt/ ESC 50A/ Lipo 4s 3200mA...

  • Page 2: Kit Contents

    Cessna Turbo Skylane 182 INTRODUCTION hank you for choosing the Cessna Turbo Skylane 182 ARTF by SG MODELS . he Cessna Turbo Skylane 182 was designed with the intermediate/advanced sport ly- er in mind. It is a semi scale airplane which is easy to ly and quick to assemble. he air- frame is conventionally built using balsa, plywood to make it stronger than the av- erage ARTF, yet the design allows the aeroplane to be kept light.

  • Page 3: Additional Items Required

    KIT CONTENTS HINGING THE FLAP Cessna Turbo Skylane 182 SEA362 Note : he control surfaces, including the ailer- ons, elevators, and rudder, are prehinged with 1. Fuselage hinges installed, but the hinges are not glued in 2. Wing set (2) place.
  • Page 4 Instruction Manual. Cessna Turbo Skylane 182 - Repeat this process with the other wing panel, securely hinging the aileron in place T-pin - Ater both lap are securely hinged, irmly grasp the wing panel and aileron to make sure the hinges are securely glued and cannot be pulled out.
  • Page 5 - Remove each hinge from the wing panel NOTE : he hinge is constructed of a spe- and aileron and place a T-pin in the center cial material that allows the C/A to wick of each hinge. Slide each hinge into the wing or penetrate and distribute throughout panel until the T-pin is snug against the wing the hinge, securely bonding it to the wood...
  • Page 6 Instruction Manual. Cessna Turbo Skylane 182 - Turn the wing panel over and delect the aileron in the opposite direction from the opposite side. Apply thin C/A glue to each hinge, making sure that the C/A penetrates into both the aileron and wing panel.

  • Page 7: Installing The Aileron Servos

    Mininum servo spec. Torque : 66.6 oz-in (4.8 kg-cm) @ 4.8V; 83.3 oz-in (6.0 kg-cm) @ 6.0V Because the size of servos difer, you may need to adjust the size of the precut opening in the mount. he notch in the sides of the mount allow the servo lead to pass through.
  • Page 8 Instruction Manual. Cessna Turbo Skylane 182 - Remove the string from the wing at the servo location and use the tape to attach it to the servo extension lead. Pull the lead through the wing and remove the string. C/A glue...

  • Page 9: Aileron Pushrod Installation

    - Set the aileron hatch in place and use a Phillips screw driver to install it with four wood screws. 2x10mm Hex nut M2 clevis Fuel tubing INSTALLING THE FLAP PUSHROD - Repeat the procedure for the aileron pushrod. 70mm AILERON PUSHROD INSTALLATION - Please see below pictures.
  • Page 10 Instruction Manual. Cessna Turbo Skylane 182 WHEELS AND WHEEL PANTS - Assemble and mounting the landing gear, wheels to the wheel pants as shown inthe following pictures.
  • Page 11 head locker glue C/A glue 4x20mm...
  • Page 12 Instruction Manual. Cessna Turbo Skylane 182 C/A glue...
  • Page 13 INSTALL NOSE GEAR - Locate the items necessary to attach the nose landing gear that are included with your model.
  • Page 14 Instruction Manual. Cessna Turbo Skylane 182 3x4mm...
  • Page 15 head locker glue...
  • Page 16 Instruction Manual. Cessna Turbo Skylane 182 3x4mm 3x4mm...
  • Page 17 3x15mm...
  • Page 18 Instruction Manual. Cessna Turbo Skylane 182 Rudder servo Tail wheel hrottle servo Elevator servo - Secure the servos with the screws pro- vided with your radio system. hrottle servo Elevator servo Rudder servo THROTTLE SERVO ARM INSTALLATION - Install adjustable servo connector in the...
  • Page 19 INSTALLING THE STOPPER Rudder servo arm ASSEMBLY - Using a modeling knife, carefully cut of the rear portion of one of the 3 nylon tubes leaving 1/2” protruding from the rear of the stopper. his will be the fuel Elevator servo arm pick up tube.

  • Page 20: Fuel Tank Installation

    Instruction Manual. Cessna Turbo Skylane 182 - Slide the fuel tank into the fuselage. Guide Vent tube. Fuel pick up tube. the lines from the tank through the hole in the iewall. - Use plywood template to hold in place the fuel tank with C/A glue to secure the fueltank Fuel fill tube.

  • Page 21: Mounting The Engine

    Vent tube Fuel pick up tube Fuel ill tube - Connect the lines from the tank to the - Use a drill to drill the four holes in the engine and muler. he vent line will engine mount rails. connect to the muler and the line from the clunk tothe carburetor.
  • Page 22 Instruction Manual. Cessna Turbo Skylane 182 - Reinstall the servo horn by sliding the connector over the pushrod wire. Center the throttle stick and trim and install the servo horn perpendicular to the servo Pushrod wire center line. 4x25mm M4 lock Nut - Move the throttle stick to the closed po- sition and move the carburetor to closed.
  • Page 23 - Tape the cowl to the fuselage using low- COWLING tack tape. - Please see below pictures. - Use a drill and drill bit to drill the holes for the cowl mounting screws. Make sure the cowl position is correct before drill- ing each hole.
  • Page 24 Instruction Manual. Cessna Turbo Skylane 182 3x10mm ELECTRIC POWER CONVERSION - Locate the items neccessary to install the electric power conversion included with your model. - Recommend the items necessary to in- stall the electric power conversion parts included with your model.
  • Page 25 - Motor: 35-45 (830 Watt) - ESC: 50A - Lipo Batteries: 4S 3200mA - Attach the electric motor box to the ire- wall centered with the cross lines drawn on the electric motor box and irewall. Using M4x25mm to secure the motor box to the irewall.
  • Page 26 Instruction Manual. Cessna Turbo Skylane 182 Epoxy Blind nut 120mm - Attach the motor to the front of the elec- tric motor box using four 4mm blind nut, Balsa stick four M3x15mm hex head bolts to secure the motor. Please see picture shown.

  • Page 27: Installing The Spinner

    he propeller should not touch any part of the spinner cone. If it does, use a Battery sharp modeling knife and carefully trim away the spinner cone where the propel- ler comes in contact with it. INSTALLING THE HORIZONTAL STABILIZER - Using a ruler and a pen, locate the cen- terline of the horizontal stabilizer, at the trailing edge, and place a mark.
  • Page 28 Instruction Manual. Cessna Turbo Skylane 182...
  • Page 29 C/A glue...

  • Page 30: Hinging The Rudder

    Instruction Manual. Cessna Turbo Skylane 182 C/A glue HINGING THE RUDDER - Glue the top two rudder hinges in place using the same techniques used to hinge C/A glue the ailerons. - he lower hinge will be glued when the i/rudder assembly is attached to the fu- selage.
  • Page 31 C/A glue...
  • Page 32 Instruction Manual. Cessna Turbo Skylane 182 C/A glue ELEVATOR PUSHROD INSTALLATION - Install the elevator control horn using the same method as with the aileron control horns. - Position the elevator control horn on the both side of elevator. Fiberglass control horn - Locate items necessaryto install rudder pushrod.
  • Page 33 - Position the elevator control horn on the both side of elevator. - head one clevis and M2 lock nut on to each elevator control rod. head the horns on until they are lsh with the ends of the control rods. - Elevator and rudder pushrods assembly as pictures below.
  • Page 34 Instruction Manual. Cessna Turbo Skylane 182 RUDDER PUSHROD INSTALLATION INSTALL THE WINDOW Parts requirement.See pictures below. - Locate items necessaryto install rudder pushrod. 625mm...
  • Page 35 C/A glue C/A glue...
  • Page 36 Instruction Manual. Cessna Turbo Skylane 182 INSTALLATION CANOPY - Locate items necessary to install canopy. C/A glue...
  • Page 37 Battery Receiver C/A glue ATTACHMENT WING- FUSELAGE - Locate items necessary to intall tail wheel. Wing tube INSTALLING BATTERY - RECEIVER - Plug the servo leads and the switch lead into the receiver. Plug the battery pack lead - Insert two wing panels as pictures below. into the switch also.
  • Page 38 Instruction Manual. Cessna Turbo Skylane 182 Wing bolt INSTALLATION WING- FUSELAGE STRUTS - Parts requirement.See pictures below.
  • Page 39 4x12mm...
  • Page 40 Instruction Manual. Cessna Turbo Skylane 182 2x8mm 2x8mm...
  • Page 41 2x8mm APPLY THE DECALS - If all the decals are precut and ready to stick. Please be certain the model is clean and free from oily ingerprints and dust. Position decal on the model where de- sired, using the photos on the box and aid in their location.

  • Page 42: Control Throws

    Instruction Manual. Cessna Turbo Skylane 182 2) he recommended Center of Gravity CONTROL THROWS (CG) location for your model is (80mm) back from the leading edge at the center of the wing. Ailerons: Rudder: High Rate : High Rate :...
  • Page 43 15-20mm 15-20mm 25-30mm Fuselage 25-30mm 15-20mm Wing 15-20mm 30mm...

  • Page 44: Flight Preparation

    A) Plug in your radio system per the 2) Check every bolt and every glue manufacturer’s instructions and turn eve- joint in the Cessna Turbo Skylane 182 rything on. to ensure that everything is tight and well bonded.
  • Page 45 If you have any queries, or are interested in our products, please feel free to contact us Factory : 12/101A - Hamlet 4 - Le Van Khuong Street - Dong hanh Ward - Hoc Mon District - Ho Chi Minh City - Viet Nam. Oice : 62/8 Ngo Tat To Street - Ward 19 - Binh hanh District - Ho Chi Minh City - Viet Nam Phone : 848 - 86622289 or 848- 36018777...
